2800 Series Hydro-Gear Transmission

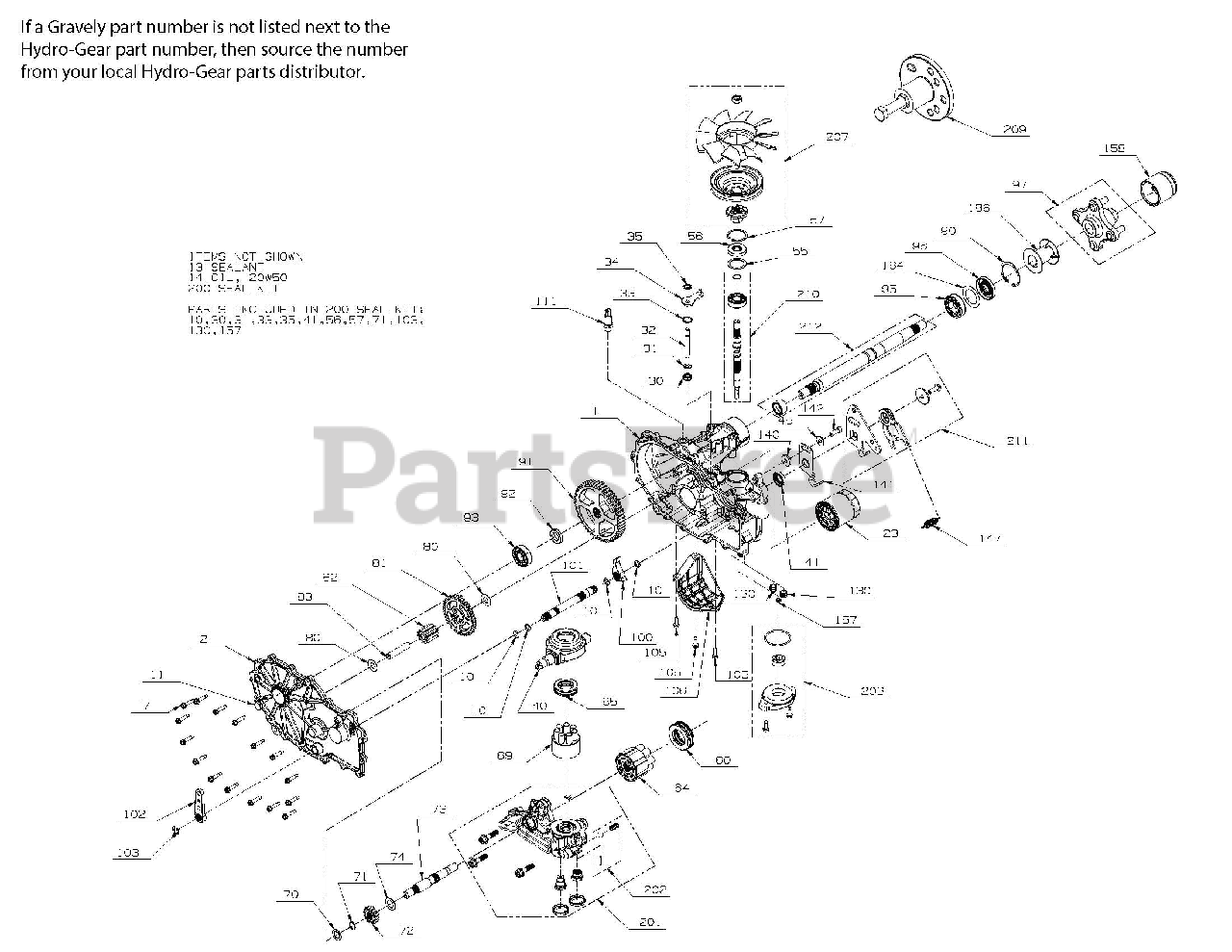

Transmission, LH - 04828600 Parts Diagram

  • Title

1

KIT, MAIN HOUSING LH, CHARGE, CONTROL

KIT, MAIN HOUSING LH, CHARGE, CONTROL

Note: Hydro-Gear p/n 71421

$

$

Not available

2

KIT, SIDE COVER LH

KIT, SIDE COVER LH

Note: Hydro-Gear p/n 71574

$

$

Not available

7

Gravely 27105900

SCREW, HEX WASHER

Note: Hydro-Gear p/n 53246

$2.99

$

In Stock, only 3 left!

0

10

0-RING -111, .424 X .103

0-RING -111, .424 X .103

Note: Hydro-Gear p/n 51804

$

$

Not available

11

PLUG, EXTERNAL HEX VENT 9/16-18

PLUG, EXTERNAL HEX VENT 9/16-18

Note: Hydro-Gear p/n 54730

$

$

Not available

13

Gravely 21543771

TUBE, SEALANT

Note: Hydro-Gear p/n 50928

$171.99

$

In Stock, only 1 left!

0

14

OIL, 20W50

OIL, 20W50

$

$

Not available

23

Gravely 21545100

FILTER, SPIN-ON 2.6 X 3.0

Note: Hydro-Gear p/n 52114

$42.99

$

Usually ships in 4-12 days

0

30

Gravely 21543845

SEAL, LIP .375 X .75 X .25

Note: Hydro-Gear p/n 51626

$9.99

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING, RETAINING EXTERNAL .375

Note: Hydro-Gear p/n 51628

$4.49

$

In Stock, Qty 9

0

32

ROD, BYPASS .375 x 2.88

ROD, BYPASS .375 x 2.88

Note: Hydro-Gear p/n 52136

$

$

Not available

33

Gravely 21543846

RING, RETAINING .750, INTERNAL

Note: Hydro-Gear p/n 51627

$

$

Not available

34

Gravely 21548901

ARM, BYPASS

Note: Hydro-Gear p/n 52370

$12.99

$

Usually ships in 4-12 days

0

35

Gravely 21543848

RING, RETAINING .375 EXTERNAL

Note: Hydro-Gear p/n 51630

$3.99

$

In Stock, only 2 left!

0

40

Gravely 21543783

SWASHPLATE, TRUNNION

Note: Hydro-Gear p/n 51048

$73.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 15 X 32 X 7

Note: Hydro-Gear p/n 51140

$9.99

$

Usually ships in 4-12 days

0

45

Gravely 08611200

WASHER 7LA1.34 X .BB X .06

Note: Hydro-Gear p/n 44130

$4.49

$

Usually ships in 4-12 days

0

55

Gravely 21543773

WASHER, FLAT 1.23 X 1.57 X .04

Note: Hydro-Gear p/n 50951

$6.49

$

In Stock, only 2 left!

0

56

Gravely 21543816

SEAL, LIP 17 x 40 x 7

Note: Hydro-Gear p/n 51161

$15.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING RETAINING INTERNAL

Note: Hydro-Gear p/n 50329

$7.49

$

Usually ships in 4-12 days

0

60

Gravely 21548902

BEARING, THRUST 35 x 62 x 18

Note: Hydro-Gear p/n 51462

$32.99

$

Usually ships in 4-12 days

0

64

Gravely 21548904

KIT, 16cc CYLINDER BLOCK ASSEMBLY

Note: Hydro-Gear p/n 71579

$78.99

$

In Stock, only 2 left!

0

65

Gravely 08609100

BEARING, THRUST 30 x 52 x 13

Note: Hydro-Gear p/n 50551

$19.99

$

Usually ships in 4-12 days

0

69

Gravely 21543921

KIT, BLOCK 7 PISTON

Note: Hydro-Gear p/n 70723

$145.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER, .63 X 1.00 X .05 FLAT

Note: Hydro-Gear p/n 44371

$3.99

$

Usually ships in 4-12 days

0

71

Gravely 21543704

RETAINING RING, MOTOR SHAFT

Note: Hydro-Gear p/n 44145

$1.99

$

Usually ships in 4-12 days

0

72

GEAR, 16T

GEAR, 16T

Note: Hydro-Gear p/n 52149

$

$

Not available

73

SHAFT, MOTOR

SHAFT, MOTOR

Note: Hydro-Gear p/n 52150

$

$

Not available

74

Gravely 21543788

WASHER, .71 X 1.16 X .04 FLAT

Note: Hydro-Gear p/n 51069

$

$

Not available

80

Gravely 21543724

WASHER, .51 X 1.00 X .03 FLAT

Note: Hydro-Gear p/n 50132

$

$

Not available

81

GEAR, 43T

GEAR, 43T

Note: Hydro-Gear p/n 52148

$

$

Not available

82

GEAR, 11T

GEAR, 11T

Note: Hydro-Gear p/n 52583

$

$

Not available

83

Gravely 21543793

PIN, JACKSHAFT

Note: Hydro-Gear p/n 51083

$

$

Not available

90

Gravely 08616500

RING, RETAINING 2.25 INTERNAL

Note: Hydro-Gear p/n 50859

$9.99

$

Usually ships in 4-12 days

0

91

GEAR, 54T

GEAR, 54T

Note: Hydro-Gear p/n 52108

$

$

Not available

92

SPACER, .750 X 1.320 X .257

SPACER, .750 X 1.320 X .257

Note: Hydro-Gear p/n 53336

$

$

Not available

93

KIT, BEARING

KIT, BEARING

Note: Hydro-Gear p/n 72749

$

$

Not available

95

Gravely 08614000

BEARING, BALL 6205R-1 25.4 x 52 x 15

Note: Hydro-Gear p/n 53656

$25.99

$

In Stock, only 1 left!

0

96

Gravely 08614300

SEAL, LIP, TC4, 1.0 X 2.06 X .38

Note: Hydro-Gear p/n 53699

$18.99

$

In Stock, only 2 left!

0

97

Gravely 21544061

KIT, HUB 4 BOLT

Note: Hydro-Gear p/n 71446

$96.99

$

Usually ships in 4-12 days

0

100

PAWL, BRAKE

PAWL, BRAKE

Note: Hydro-Gear p/n 52766

$

$

Not available

101

SHAFT, INBOARD BRAKE

SHAFT, INBOARD BRAKE

Note: Hydro-Gear p/n 52651

$

$

Not available

102

HANDLE, ACTUATING

HANDLE, ACTUATING

Note: Hydro-Gear p/n 53973

$

$

Not available

103

RING, RETAINING - EXTERNAL .438

RING, RETAINING - EXTERNAL .438

Note: Hydro-Gear p/n 53019

$

$

Not available

105

Gravely 21543759

SCREW, HEX WASHER 1/4-20 X .75

Note: Hydro-Gear p/n 50752

$2.49

$

Usually ships in 4-12 days

0

106

Gravely 21548907

GUARD, FILTER, LH

Note: Hydro-Gear p/n 53644

$19.99

$

Usually ships in 4-12 days

0

111

Gravely 21544058

KIT, FITTING 1/2 BEADED 9/16 SAE

Note: Hydro-Gear p/n 71393

$38.99

$

Usually ships in 4-12 days

0

130

TUBE, CHARGE TRIPLE O-RING

TUBE, CHARGE TRIPLE O-RING

Note: Hydro-Gear p/n 54501

$

$

Not available

140

Gravely 21543870

SPACER 0.320 ID X 1.005 OD X 0.1495 THK

Note: Hydro-Gear p/n 54315

$

$

Not available

141

Gravely 21543867

ARM, RETURN LEFT

Note: Hydro-Gear p/n 51946

$22.99

$

Usually ships in 4-12 days

0

142

Gravely 21543843

SHCS 5/16-24 x 7/8

Note: (W/PATCH) Hydro-Gear p/n 51616

$

$

Not available

147

Gravely TCU19204

SPRING, EXTENSION

Note: Hydro-Gear p/n 51833

$

$

Not available

157

KIT, GEROTOR SEAL

KIT, GEROTOR SEAL

Note: Hydro-Gear p/n 72291

$

$

Not available

158

CAP, AXLE

CAP, AXLE

Note: Hydro-Gear p/n 53501

$

$

Not available

164

WASHER, 1.355 x 2.035 x .021 FLAT

WASHER, 1.355 x 2.035 x .021 FLAT

Note: Hydro-Gear p/n 53514

$

$

Not available

186

TUBE, AXLE 2.03

TUBE, AXLE 2.03

Note: Hydro-Gear p/n 53496

$

$

Not available

200

Gravely 21543999

KIT, SEAL, ZT-2800

Note: Hydro-Gear p/n 71410

$79.99

$

Usually ships in 4-12 days

0

201

KIT, CENTER SECTION LH CHARGE

KIT, CENTER SECTION LH CHARGE

Note: Hydro-Gear p/n 72534

$

$

Not available

202

KIT, CHARGE RELIEF

KIT, CHARGE RELIEF

Note: Hydro-Gear p/n 71436

$

$

Not available

203

Gravely 21544060

KIT, CHARGE

Note: Hydro-Gear p/n 72274

$98.99

$

In Stock, only 4 left!

0

207

Gravely 21543898

KIT, FAN/PULLEY

Note: Hydro-Gear p/n 72124

$87.99

$

Usually ships in 4-12 days

0

209

Gravely 21544009

KIT, HUB PULLER
(Superseded to 21544008)

Note: Hydro-Gear p/n 72320

$461.99

$

Usually ships in 4-12 days

0

210

Gravely 21544010

KIT, INPUT SHAFT
(Superseded to 21544039)

Note: Hydro-Gear p/n 71442

$

$

Not available

211

Gravely 21544065

KIT, RTN CCW

Note: Hydro-Gear p/n 71593

$

$

Not available

212

KIT, SHAFT, AXLE

KIT, SHAFT, AXLE

Note: Hydro-Gear p/n 71570

$

$

Not available
