05-32MS01 - Toro 32" Side-Discharge Mower Deck (1980) Side Discharge Mowers-32 In. (81 Cm) Vehicle Identification Numbers 05-32ms01,05-32xs01,05 2 Parts Diagram

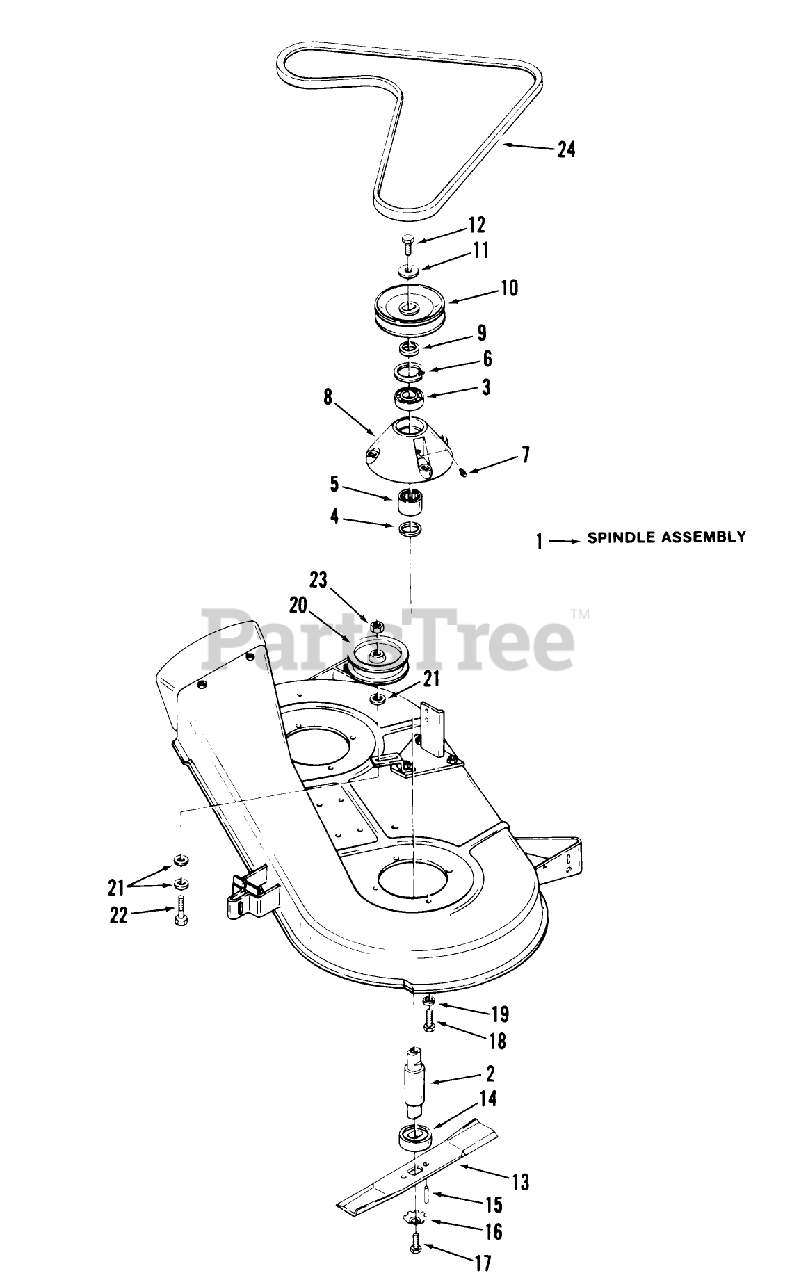

32" Side-Discharge Mower Deck

Side Discharge Mowers-32 In. (81 Cm) Vehicle Identification Numbers 05-32ms01,05-32xs01,05 2 Parts Diagram

  • Title

1

Toro 107275

DISCONTINUE

$

$

Not available

2

Toro 103691

DISCONTINUED

$

$

Not available

3

Toro 101480

BEARING-BALL

$55.99

$

In Stock, only 4 left!

0

4

Toro 100863

OIL SEAL

$19.99

$

In Stock, only 2 left!

0

5

Toro 1528

BEARING-NEEDLE

$65.99

$

Usually ships in 3-6 days

0

6

Toro 936029

INT SNAP RING

$

$

Not available

7

Toro 3796

See Supercession: 302-16
(Superseded to 302-16)

$

$

Not available

8

Toro 8242

HOUSING

$927.99

$

Usually ships in 3-6 days

0

9

Toro 8244

SPACER

$

$

Not available

10

Toro 107276

DISCONTINUED

$

$

Not available

10

Toro 107643

DISCONTINUED

$

$

Not available

11

Toro 2844

WASHER

$3.49

$

In Stock, Qty 14

0

12

Toro 908032

See Supercession: 323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 14

0

13

Toro 106163

S/A BLADE KIT

$283.99

$

Usually ships in 3-6 days

0

13

Toro 108040

S/A BLADE KIT

$197.99

$

Usually ships in 3-6 days

0

14

Toro 8248

DISCONTINUED

$

$

Not available

15

Toro 933211

SPIROL ROLL PIN

$2.49

$

Usually ships in 3-6 days

0

16

Toro 1336

DISCONTINUED

$

$

Not available

17

Toro 908032

See Supercession: 323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 14

0

18

Toro 908033

See Supercession: 110242
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

19

Toro 920083

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 8

0

20

Toro 6719

See Supercession: 92-7101
(Superseded to 92-7101)

$44.99

$

In Stock, only 2 left!

0

21

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

22

Toro 908038

See Supercession: 323-10
(Superseded to 323-10)

$1.49

$

In Stock, Qty 9

0

23

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

24

Toro 108491

DISCONTINUED

$

$

Not available

24

Toro 108503

V-BELT

Note: Not Supplied as Part of Mower Package; Original Belt Factory Installed on Rider PTO

$

$

Not available
