05-32YS01 - Toro 32" Side-Discharge Mower Deck (1982) SIDE DISCHARGE MOWER-32 IN. (81 CM)(VEHICLE IDENTIFICATION NUMBER 05-32YS01) Parts Diagram

32" Side-Discharge Mower Deck

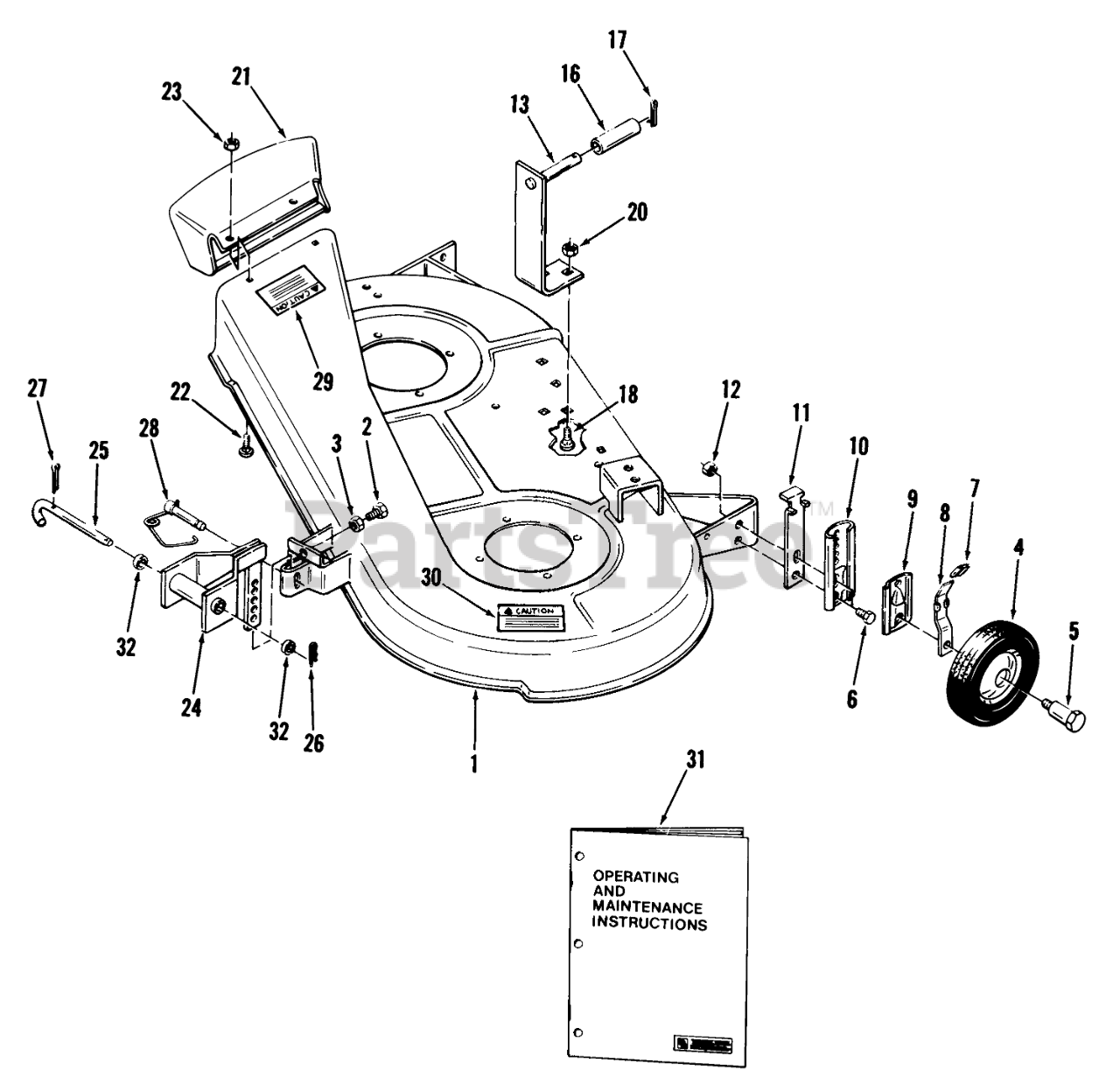

SIDE DISCHARGE MOWER-32 IN. (81 CM)(VEHICLE IDENTIFICATION NUMBER 05-32YS01) Parts Diagram

  • Title

1

Toro 108771

Mower Deck

$

$

Not available

2

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

3

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

4

Toro 107207

Wheel 6 X 1.25

$

$

Not available

5

Toro 107268

BOLT-SHOULDER

$

$

Not available

6

Toro 7860

Bolt-Special
(Superseded to 703325)

$

$

Not available

7

Toro 7859

HT ADJ TIP RED VINYL

$

$

Not available

8

Toro 7858

HT ADJ SPRING LEVER

$

$

Not available

9

Toro 7857

HT ADJ SLIDE

$

$

Not available

10

Toro 7856

HT ADJ BACK PLATE

$

$

Not available

11

Toro 107254

SAFETY-STOP& LIFT

$

$

Not available

12

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

13

Toro 108780

Guide Bracket

$

$

Not available

16

Toro 106383

SPACER

$

$

Not available

17

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

18

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 20+

0

20

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

21

Toro 107259

ASSY-CHUTE EXT R

$

$

Not available

22

Toro 900036

CARRIAGE BOLT -4

$1.99

$

Usually ships in 3-6 days

0

23

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

24

Toro 108776

Front Hanger

$

$

Not available

25

Toro 108488

"J" Pin
(Superseded to 110845)

$34.99

$

Usually ships in 3-6 days

0

26

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

27

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

28

Toro 107266

PIN-LOCKING

$

$

Not available

29

Toro 108885

DECAL

$

$

Not available

30

Toro 108883

Caution Decal
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

31

Toro 810216R1

Operating and Maintenance Instructions

$

$

Currently unavailable

32

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0
