05-36MS02 - Toro 36" Side-Discharge Mower Deck (1983)

36" Side-Discharge Mower Deck

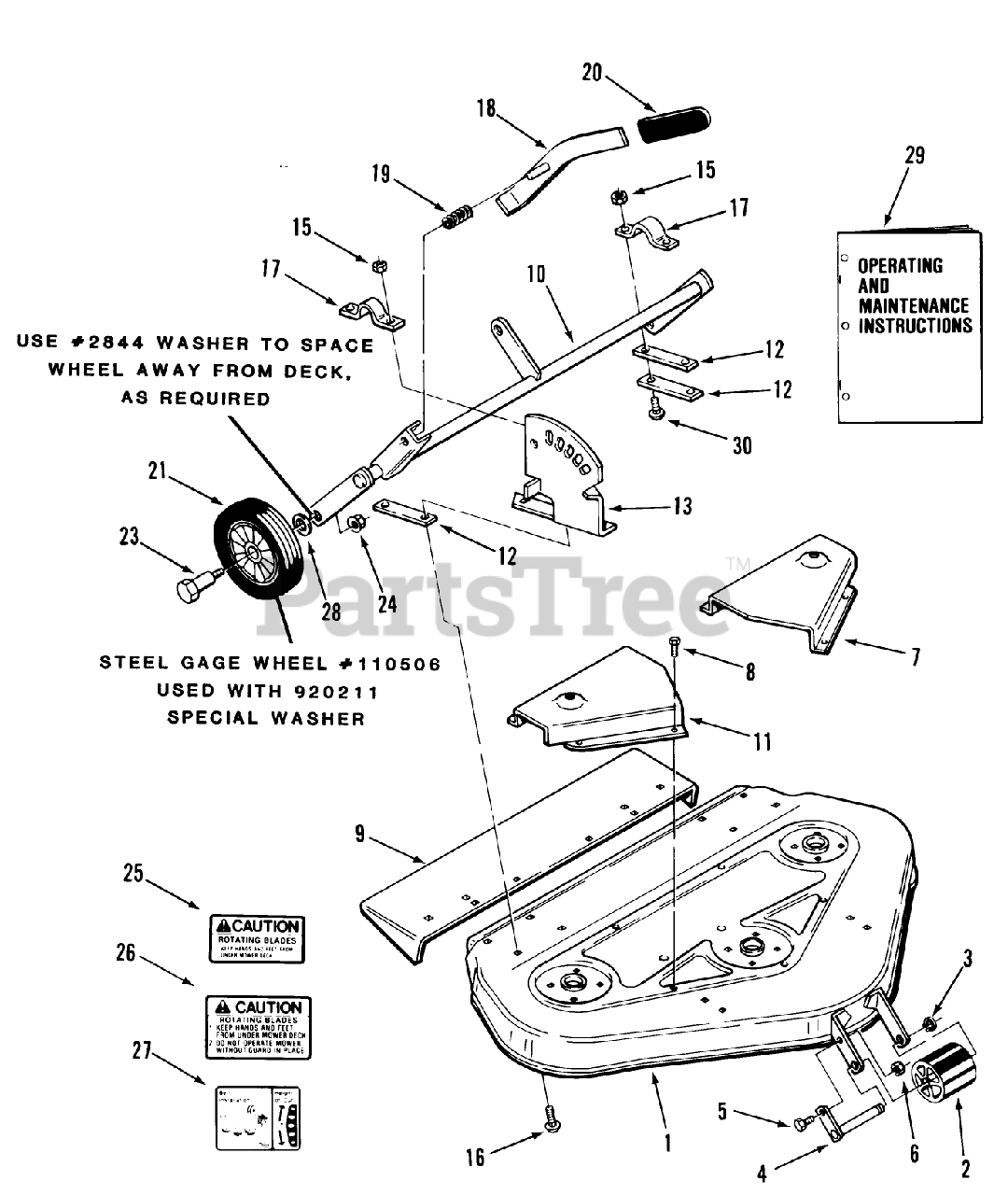

05-36MS02 - Toro 36" Side-Discharge Mower Deck (1983) > Parts Diagrams (3) > REAR AND SIDE DISCHARGE MOWERS-36 IN.(92 CM) VEHICLE IDENTIFICATION NUMBERS 05-36MR02,05-36MS02

  • Title
107419

1

Mower Deck

Part# 107419 (Superseded to 92-5785)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $737.29

107420

ASSY-MOWER DECK 3 R

Part# 107420

OEM Warranty Repair Part for Toro

Not available

108798

2

Roller

Part# 108798 (Superseded to 94-1599)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.37

107825

3

Retaining Ring

Part# 107825 (Superseded to 32151-61)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.05

108799

4

Roller Shaft

Part# 108799 (Superseded to 110847)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $19.31

908002

5

H H C S

Part# 908002 (Superseded to 321-3)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.97

915111

6

Nut

Part# 915111 (Superseded to 3217-5)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.55

107449

7

Cover-Belt

Part# 107449 (Superseded to 107449-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $60.45

926671

8

Bolt

Part# 926671 (Superseded to 9266714)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

106480

9

Chute Extension

Part# 106480 (Superseded to 106480-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $59.18

107961

10

Gage Wheel Support

Part# 107961 (Superseded to 107961-01)

OEM Warranty Repair Part for Toro

Not available

107450

11

Belt Cover RH

Part# 107450 (Superseded to 107450-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $60.45

106377

12

Strap

Part# 106377 (Superseded to 110840-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.45

106392

13

Quadrant

Part# 106392 (Superseded to 106392-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.87

915113

15

Nut

Part# 915113 (Superseded to 32153-2)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.48

900063

16

Bolt

Part# 900063 (Superseded to 3231-2)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.36

106378

17

CLAMP

Part# 106378

OEM Warranty Repair Part for Toro

Not available

102431

18

Lever

Part# 102431 (Superseded to 102431-01)

OEM Warranty Repair Part for Toro

Not available

101853

19

SPRING-COMPRESSION

Part# 101853

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.89

102597

20

GRIP

Part# 102597

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.34

109037

21

Wheel 6 x 1.75

Part# 109037 (Superseded to 110506)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $24.59

5188

23

BOLT-SHOULDER

Part# 5188

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.46

915113

24

Nut

Part# 915113 (Superseded to 32153-2)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.48

108883

25

Caution Decal

Part# 108883 (Superseded to 93-1122)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.19

108884

26

Decal-Caution

Part# 108884 (Superseded to 66-1340)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.16

106748

27

DECAL-HEIGHT & BELT

Part# 106748

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.20

920242

28

WASHER

Part# 920242

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.03

810306R1

29

Operating and Maintenance Instructions

Part# 810306R1

OEM Warranty Repair Part for Toro

Currently unavailable

900064

30

Bolt

Part# 900064 (Superseded to 3231-25)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.02
