05-37MS02 - Toro 37" Side-Discharge Mower Deck (1983) Rear And Side Discharge Mowers-36 37 In. (92 94 Cm)(vehicle Identification Number 05-36xr02,a5-36xr02) Parts Diagram

37" Side-Discharge Mower Deck

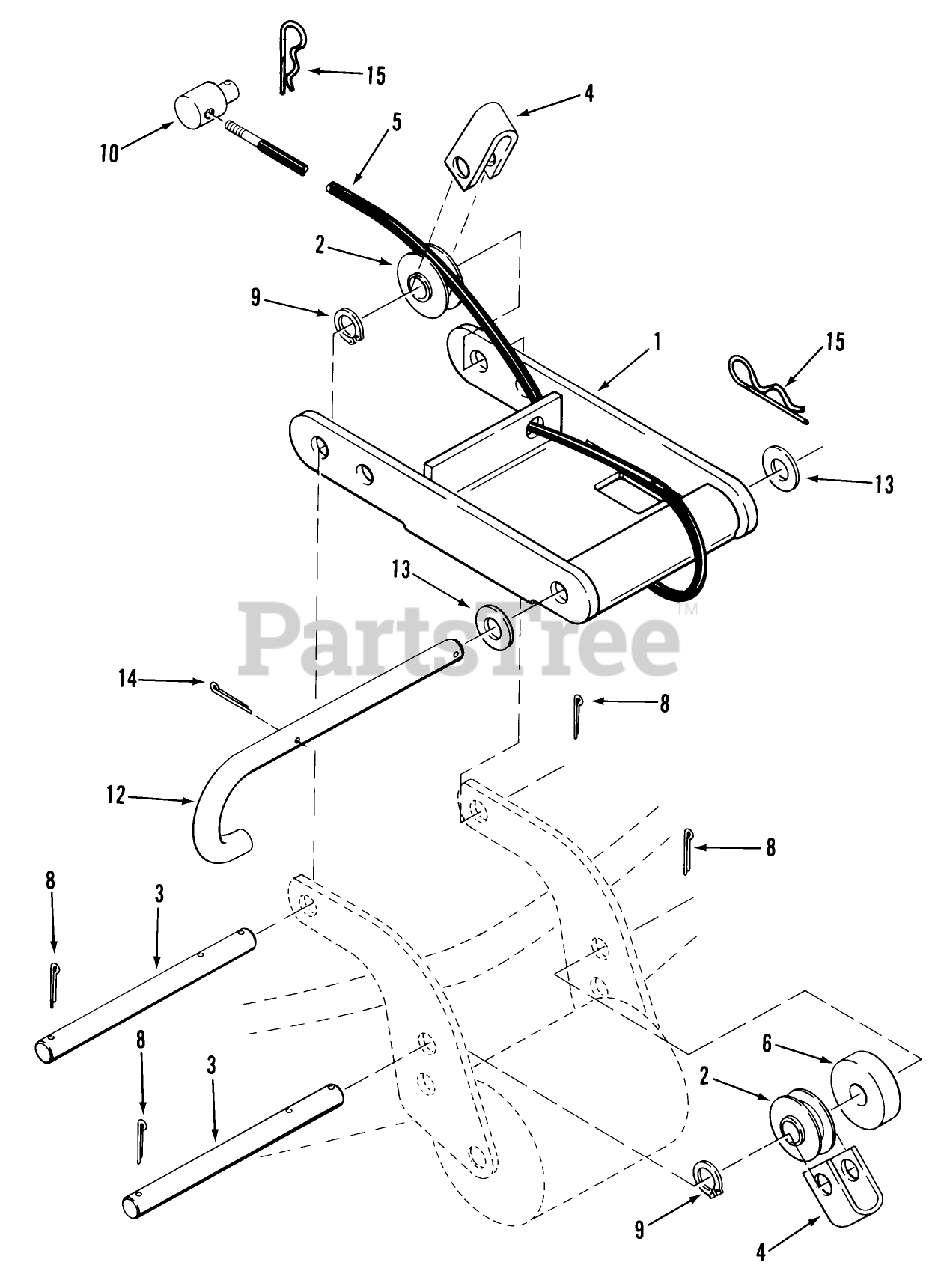

Rear And Side Discharge Mowers-36 37 In. (92 94 Cm)(vehicle Identification Number 05-36xr02,a5-36xr02) Parts Diagram

  • Title

1

Toro 109968

See Supercession: 113032
(Superseded to 113032)

$

$

Not available

2

Toro 106474

DISCONTINUED

$

$

Not available

3

Toro 106475

See Supercession: 110843
(Superseded to 110843)

$

$

Not available

4

Toro 106469

STRAP-CABLE

$

$

Not available

5

Toro 106472

ASSY-CABLE 36IN&42IN

$112.99

$

Usually ships in 3-6 days

0

6

Toro 106461

DISCONTINUED

$

$

Not available

6

Toro 106430

SPACER

$

$

Not available

8

Toro 932016

See Supercession: 3272-10
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

9

Toro 106589

GRIP RING

$

$

Not available

10

Toro 104524

TRUNNION-CLUTCH ROD

$49.99

$

Usually ships in 3-6 days

0

12

Toro 108488

See Supercession: 110845
(Superseded to 110845)

$

$

Not available

13

Toro 920011

See Supercession: 3256-26
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 19

0

14

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

15

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0
