05-42RY02 - Toro 42" Rear-Discharge Mower Deck (SN: 010000001 - 019999999) (1991) DECK ASSEMBLY Parts Diagram

42" Rear-Discharge Mower Deck

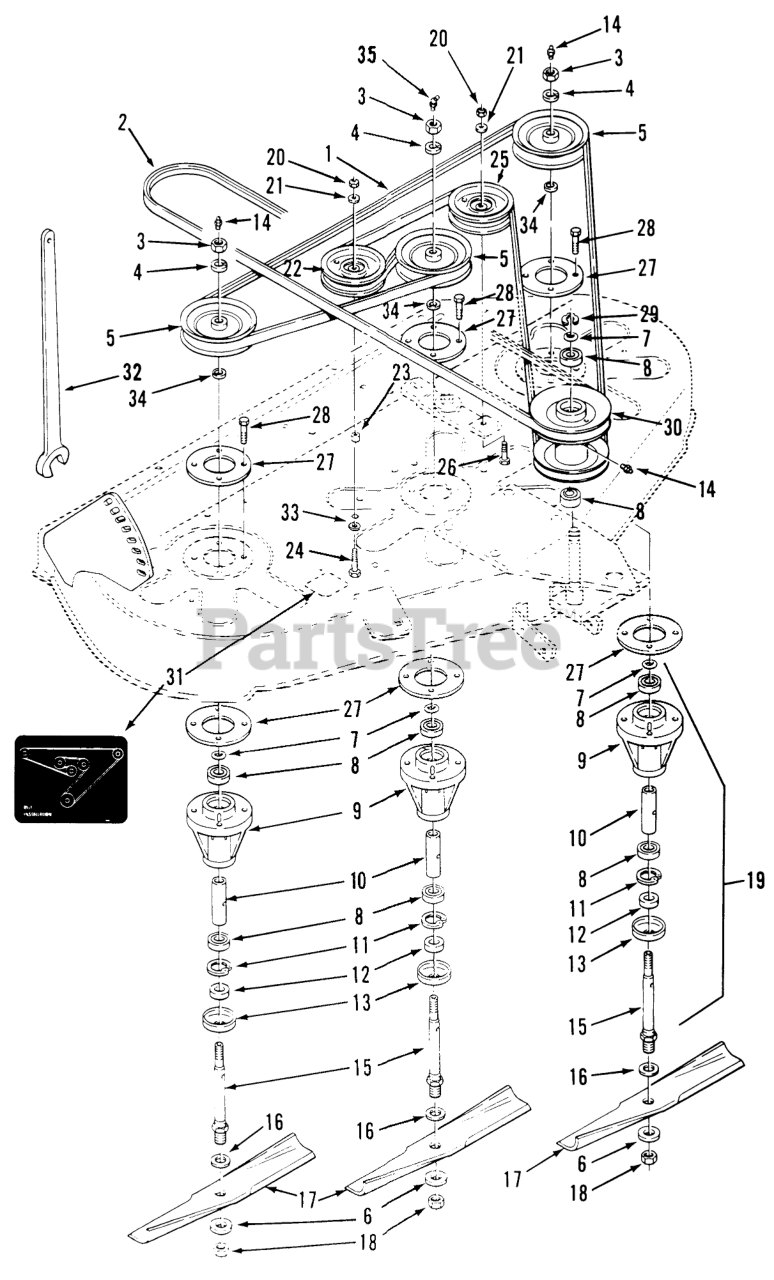

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 116409

V-BELT

$231.99

$

Usually ships in 3-6 days

0

2

Toro 116408

V-BELT

$156.99

$

Usually ships in 3-6 days

0

3

Toro 915089

Nut
(Superseded to 3220-6)

$1.49

$

In Stock, Qty 12

0

4

Toro 920087

Lockwasher
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

5

Toro 116170

Pulley
(Superseded to 79-7510)

$111.99

$

In Stock, only 1 left!

0

6

Toro 920015

Washer
(Superseded to 3256-28)

$3.99

$

In Stock, Qty 20+

0

7

Toro 971015

O RING

$2.49

$

In Stock, Qty 20+

0

8

Toro 109966

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

9

Toro 114568

HOUSING-SPINDLE

$107.99

$

In Stock, Qty 8

0

10

Toro 116085

TUBE

$35.99

$

In Stock, only 3 left!

0

11

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 20+

0

12

Toro 106068

SPACER-BLADE

$8.49

$

In Stock, Qty 11

0

13

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$16.99

$

In Stock, Qty 11

0

14

Toro 83-2750

Fitting-Grease
(Superseded to 302-5)

$3.49

$

In Stock, Qty 20+

0

15

Toro 112674

SHAFT-SPINDLE

$90.99

$

In Stock, only 4 left!

0

16

Toro 920257

Washer
(Superseded to 9202574)

$2.49

$

In Stock, Qty 20+

0

17

Toro 121020

SERV ASS'Y-BLADE PKG

$267.99

$

Usually ships in 3-6 days

0

18

Toro 915090

Nut
(Superseded to 32146-20)

$3.99

$

In Stock, Qty 20+

0

19

Toro 110172

Spindle Assembly
(Superseded to 111726)

$282.99

$

In Stock, Qty 5

0

20

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

21

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

22

Toro 115119

Pulley-Idler
(Superseded to 92-7084)

$41.99

$

In Stock, only 2 left!

0

23

Toro 110856

SPACER

$

$

Not available

24

Toro 908039

Bolt
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

25

Toro 116859

PULLEY-FLAT IDLER

$95.99

$

Usually ships in 3-6 days

0

26

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

27

Toro 116073

SPACER-SPINDLE

$77.99

$

Usually ships in 3-6 days

0

28

Toro 908032

Bolt
(Superseded to 323-4)

$4.49

$

In Stock, Qty 20+

0

29

Toro 105005

RETAINING RING

$

$

Not available

30

Toro 116425

PULLEY-COUNTER SHAFT

$782.99

$

Usually ships in 3-6 days

0

31

Toro 116286

DECAL-BELT INSTALL

$11.99

$

Usually ships in 3-6 days

0

32

Toro 114647

Spindle Wrench

$

$

Not available

33

Toro 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

34

Toro 920215

Washer
(Superseded to 9202154)

$3.49

$

In Stock, Qty 15

0

35

Toro 1481

FITTING-GREASE

$6.99

$

In Stock, Qty 6

0
