05-42SS02 - Toro 42" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) Cutting Deck Assembly Parts Diagram

42" Side-Discharge Mower Deck

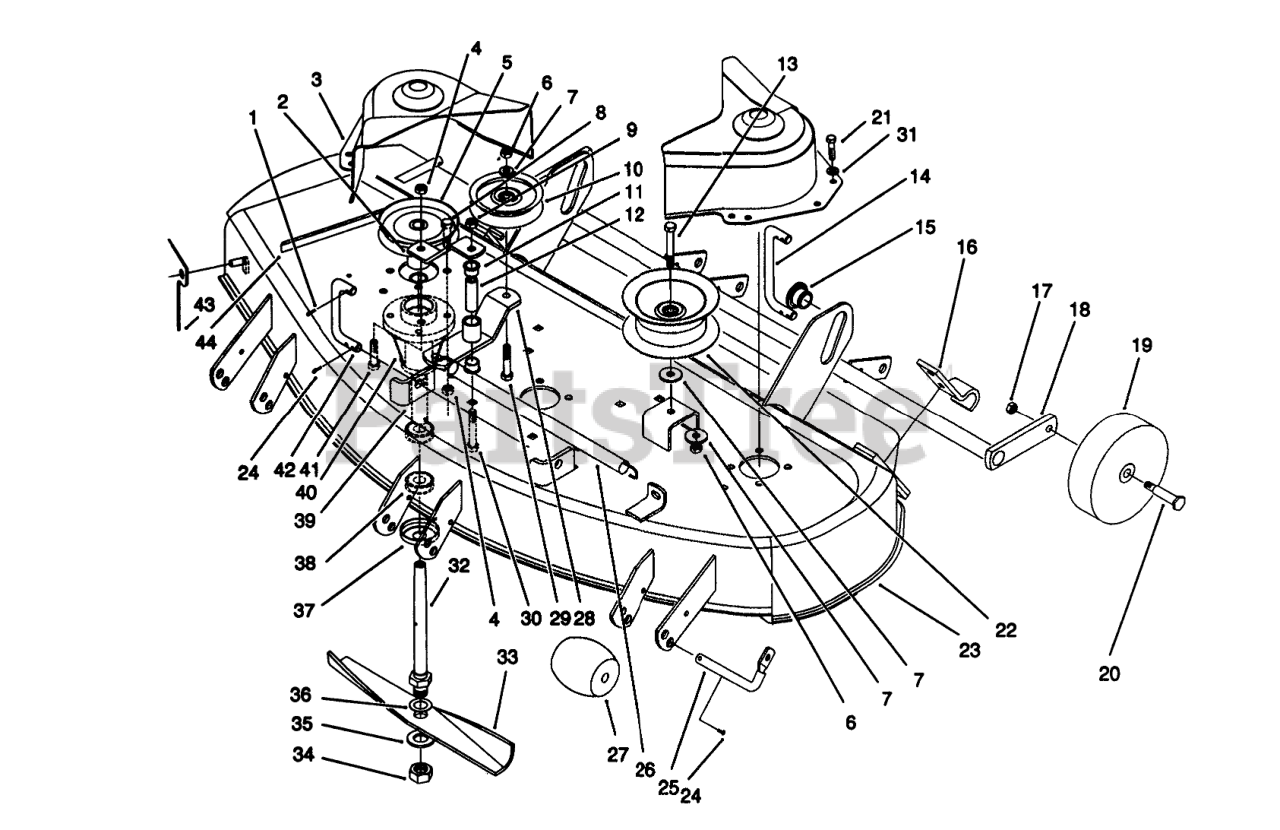

Cutting Deck Assembly Parts Diagram

  • Title

1

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 7

0

2

Toro 78-3140

See Supercession: 78-3140-03
(Superseded to 78-3140-03)

$

$

Not available

3

Toro 78-6891

COVER-BELT

$170.99

$

Usually ships in 3-6 days

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 78-1210

See Supercession: 92-7080
(Superseded to 92-7080)

$103.99

$

Usually ships in 3-6 days

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 908032

See Supercession: 323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 12

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 115119

See Supercession: 92-7084
(Superseded to 92-7084)

$41.99

$

In Stock, only 2 left!

0

11

Toro 109859

BUSHING

$19.99

$

Usually ships in 3-6 days

0

12

Toro 79-2760

SPACER

$

$

Not available

13

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Toro 78-6681

LINK-REAR

$

$

Not available

15

Toro 78-7340

ROLLER-LIFT

$14.99

$

In Stock, only 2 left!

0

16

Toro 110837

See Supercession: 110837-03
(Superseded to 110837-03)

$37.99

$

In Stock, Qty 5

0

17

Toro 32146-2

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

18

Toro 78-6661

DISCONTINUED
(Superseded to 78-6661-01)

$

$

Not available

19

Toro 110506

WHEEL

$39.99

$

In Stock, Qty 8

0

20

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 11

0

21

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

22

Toro 78-8250

See Supercession: 92-7082
(Superseded to 92-7082)

$146.99

$

In Stock, only 2 left!

0

23

Toro 79-5320

DISCONTINUED
(Superseded to 98-1797)

$

$

Not available

24

Toro 3272-21

PIN-COTTER

$3.99

$

In Stock, only 3 left!

0

25

Toro 118960

See Supercession: 118960-03
(Superseded to 118960-03)

$49.99

$

In Stock, only 2 left!

0

26

Toro 116172

SPRING-EXTENSION

$55.99

$

Usually ships in 3-6 days

0

27

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 2 left!

0

28

Toro 78-3160

See Supercession: 98-9006
(Superseded to 98-9006)

$166.99

$

Usually ships in 3-6 days

0

29

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 323-14

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

31

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, only 1 left!

0

32

Toro 78-6710

SHAFT-SPINDLE

$147.99

$

In Stock, only 3 left!

0

33

Toro 106636

BLADE KIT (3 PACK)

$102.99

$

In Stock, Qty 7

0

34

Toro 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 16

0

35

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

36

Toro 920257

See Supercession: 9202574
(Superseded to 9202574)

$2.49

$

In Stock, Qty 20+

0

37

Toro 106067

See Supercession: 106067-03
(Superseded to 106067-03)

$16.99

$

In Stock, Qty 6

0

38

Toro 109966

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

39

Toro 116085

TUBE

$36.99

$

In Stock, only 1 left!

0

40

Toro 114568

HOUSING-SPINDLE

$107.99

$

In Stock, Qty 6

0

41

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 15

0

42

Toro 78-6701

DISCONTINUED

$

$

Not available

43

Toro 115994

See Supercession: 99-3708
(Superseded to 99-3708)

$297.99

$

Usually ships in 3-6 days

0

44

Toro 78-6240

See Supercession: 92-6991
(Superseded to 92-6991)

$108.99

$

In Stock, only 3 left!

0
