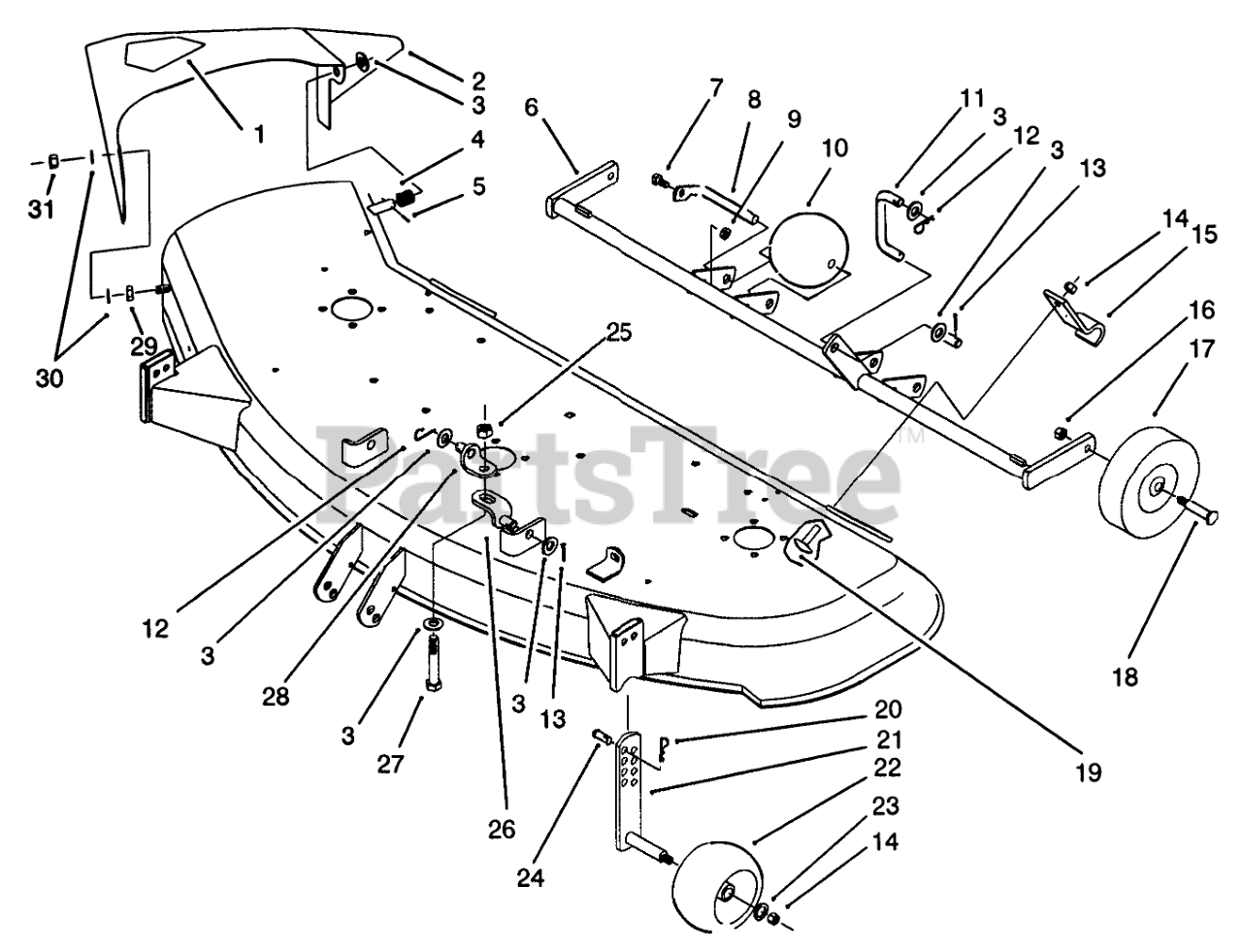

05-48SS01 - Toro 48" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) Suspension Assembly Parts Diagram

48" Side-Discharge Mower Deck

Suspension Assembly Parts Diagram

  • Title

1

Toro 54-9220

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 10

0

2

Toro 115994

See Supercession: 99-3708
(Superseded to 99-3708)

$297.99

$

Usually ships in 3-6 days

0

3

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

4

Toro 116081

See Supercession: 93-1630
(Superseded to 93-1630)

$21.99

$

Usually ships in 3-6 days

0

5

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

6

Toro 79-4140

See Supercession: 79-4140-03
(Superseded to 79-4140-03)

$

$

Not available

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 118960

See Supercession: 118960-03
(Superseded to 118960-03)

$49.99

$

In Stock, only 2 left!

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 2 left!

0

11

Toro 79-5380

LINK-REAR

$47.99

$

Usually ships in 3-6 days

0

12

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 9

0

13

Toro 3272-21

PIN-COTTER

$3.99

$

In Stock, only 3 left!

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 110837

See Supercession: 110837-03
(Superseded to 110837-03)

$37.99

$

In Stock, Qty 5

0

16

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 15

0

17

Toro 110506

WHEEL

$39.99

$

In Stock, Qty 8

0

18

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 13

0

19

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

20

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

21

Toro 68-2350

GAGE-WHEEL

$

$

Not available

22

Toro 68-2730

See Supercession: 1-603299
(Superseded to 1-603299)

$25.99

$

In Stock, Qty 20+

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 283-2

PIN-CLEVIS

$14.99

$

In Stock, only 2 left!

0

25

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 10

0

26

Toro 86-9240

BRACKET-LIFT, LOWER

$114.99

$

In Stock, only 4 left!

0

27

Toro 325-13

SCREW-HH

$0.99

$

In Stock, Qty 17

0

28

Toro 86-9250

BRACKET-LIFT, UPPER

$102.99

$

In Stock, only 1 left!

0

29

Toro 116080

BUSHING-PIVOT

$20.99

$

Usually ships in 3-6 days

0

30

Toro 116083

See Supercession: 93-1633
(Superseded to 93-1633)

$3.49

$

In Stock, Qty 10

0

31

Toro 915236

See Supercession: 9152366
(Superseded to 9152366)

$3.99

$

In Stock, only 1 left!

0
