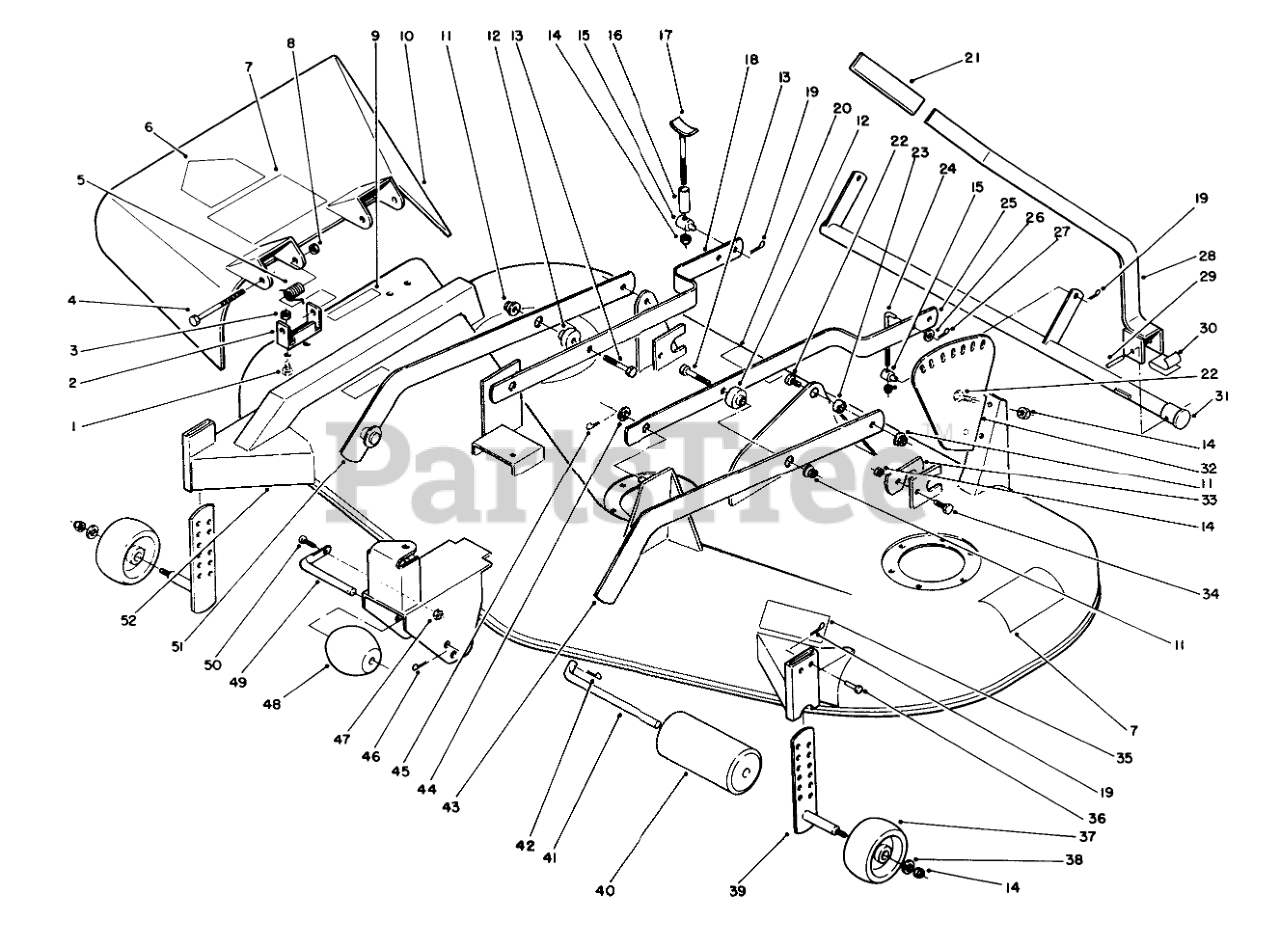

05-52SY01 - Toro 52" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) DECK & LIFT ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck

DECK & LIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 900285

Bolt Carnage
(Superseded to 3230-18)

$5.49

$

In Stock, Qty 19

0

2

Toro 29-5590

Bracket-Pivot
(Superseded to 29-5590-03)

$

$

Not available

3

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

4

Toro 3211-15

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

5

Toro 40-6230

SPRING

$38.99

$

Usually ships in 3-6 days

0

6

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

7

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 4 left!

0

8

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

9

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

10

Toro 79-3550

Deflector Assembly (Incl. Ref. #6 & 7)
(Superseded to 79-6120)

$

$

Not available

11

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

12

Toro 115706

SPACER

$26.99

$

Usually ships in 3-6 days

0

13

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

14

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

15

Toro 79-2790

TRUNNION

$37.99

$

Usually ships in 3-6 days

0

16

Toro 979180

SPACER .375 ID X 1.6

$

$

Not available

17

Toro 116816

WLDMT-HANGER ROD

$

$

Not available

18

Toro 120070

Bar-Leveler
(Superseded to 120070-01)

$

$

Not available

19

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

20

Toro 79-2460

DECAL-BELT ROUTING

$

$

Not available

21

Toro 103721

Axle

$

$

Not available

22

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 20+

0

23

Toro 115705

SPACER

$

$

Not available

24

Toro 121010

ROD-LIFT

$22.99

$

Usually ships in 3-6 days

0

25

Toro 117072

Draft Bar RH
(Superseded to 117072-01)

$

$

Not available

26

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

27

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

28

Toro 79-1010

Lever
(Superseded to 79-1010-01)

$149.99

$

Usually ships in 3-6 days

0

29

Toro 933245

SPIROL PIN

$

$

Not available

30

Toro 112730

CLIP-SPRING

$47.99

$

Usually ships in 3-6 days

0

31

Toro 79-0810

Lit Arm Assembly
(Superseded to 79-0810-01)

$

$

Not available

32

Toro 78-2470

Quadrant
(Superseded to 78-2470-01)

$89.99

$

Usually ships in 3-6 days

0

33

Toro 79-0590

LOCK-SHAFT

$

$

Not available

34

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

35

Toro 68-6380

TUBE ASM

$

$

Currently unavailable

36

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, Qty 5

0

37

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$22.99

$

In Stock, Qty 20+

0

38

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 66-2350

Plate

$

$

Currently unavailable

40

Toro 36-1740

ROLLER-DECK

$39.99

$

In Stock, Qty 5

0

41

Toro 40-0340

SHAFT-ROLLER, REAR

$30.99

$

In Stock, only 1 left!

0

42

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

43

Toro 117071

Draft Bar LH
(Superseded to 117071-01)

$

$

Not available

44

Toro 920013

WASHER
(Superseded to 3256-27)

$2.99

$

In Stock, only 2 left!

0

45

Toro 932035

PIN-4

$

$

Not available

46

Toro 932034

Cotter Pin
(Superseded to 3272-21)

$3.49

$

In Stock, Qty 6

0

47

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

48

Toro 29-4820

ROLLER

$16.99

$

In Stock, Qty 8

0

49

Toro 118960

SHAFT-ROLLER
(Superseded to 118960-03)

$37.99

$

In Stock, only 3 left!

0

50

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

51

Toro 117072

Draft Bar RH
(Superseded to 117072-01)

$

$

Not available

52

Toro 79-0830

Deck Assembly
(Superseded to 79-0830-01)

$

$

Not available

Toro 860704

Vin Overlay

Note: Not illustrated

$

$

Currently unavailable
