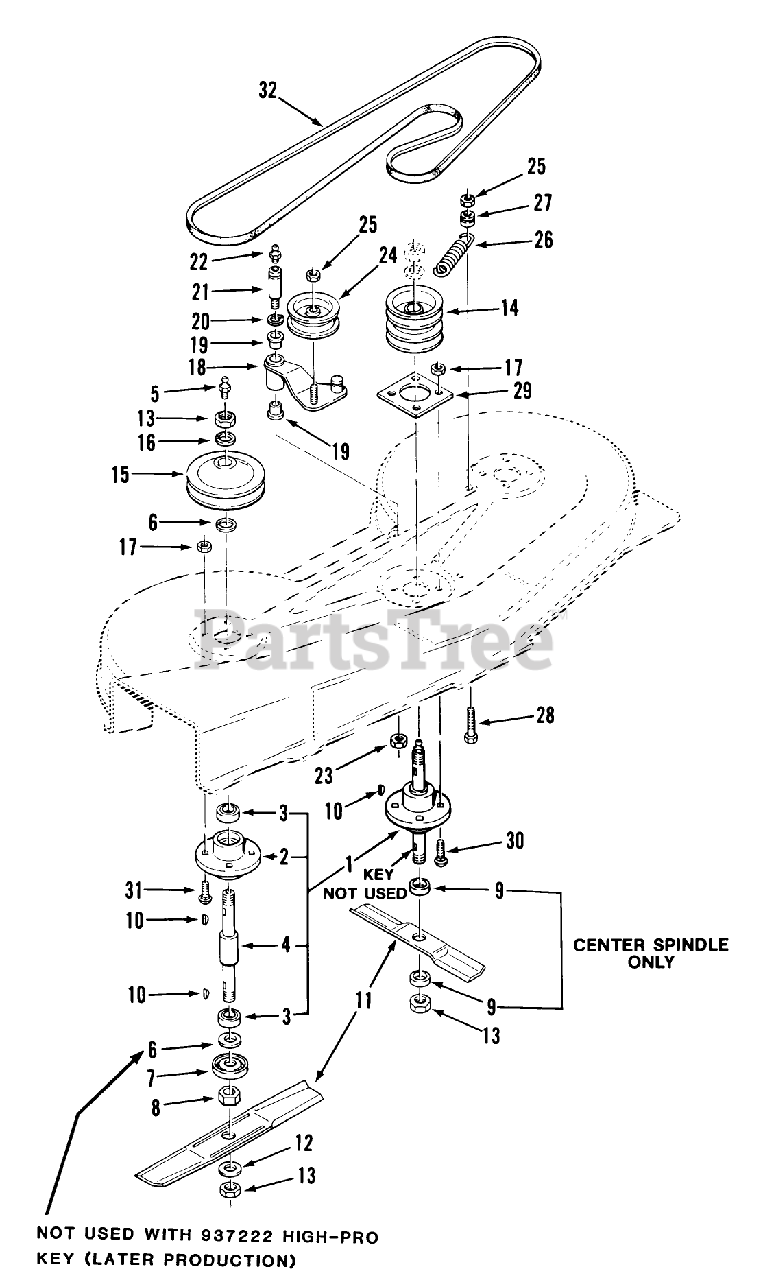

05-60SC01 - Toro 60" Side-Discharge Mower Deck (1982) Side Discharge Mower-60 In. (152 Cm)(vehicle Identification Number 05-60sc01) 2 Parts Diagram

60" Side-Discharge Mower Deck

Side Discharge Mower-60 In. (152 Cm)(vehicle Identification Number 05-60sc01) 2 Parts Diagram

  • Title

1

Toro 109840

Spindle Assembly

$

$

Not available

2

Toro 109841

DISCONTINUED

$

$

Not available

3

Toro 109842

BEARING-BALL

$29.99

$

In Stock, only 2 left!

0

4

Toro 109843

DISCONTINUED

$

$

Not available

5

Toro 1030

DUP PART SEE $BOOK

$

$

Not available

6

Toro 920257

See Supercession: 9202574
(Superseded to 9202574)

$2.49

$

In Stock, Qty 20+

0

7

Toro 109846

DISCONTINUED

$

$

Not available

8

Toro 109847

DISCONTINUED

$

$

Not available

9

Toro 109848

DISCONTINUED

$

$

Not available

10

Toro 937086

KEY WOODRUFF

$

$

Not available

11

Toro 109077

SER ASSY BLADE KIT

$453.99

$

Usually ships in 3-6 days

0

12

Toro 920256

WASHER

$

$

Not available

13

Toro 915241

NUT

$

$

Not available

14

Toro 109851

DISCONTINUED

$

$

Not available

15

Toro 109852

DISCONTINUED

$

$

Not available

16

Toro 920089

DISCONTINUED

$

$

Not available

17

Toro 109779

NUT-HEX, JAM

$

$

Not available

18

Toro 109854

DISCONTINUED

$

$

Not available

19

Toro 109859

BUSHING

$19.99

$

Usually ships in 3-6 days

0

20

Toro 936121

SNAP RING- 5/8 EXT

$0.99

$

Usually ships in 3-6 days

0

21

Toro 109860

DISCONTINUED

$

$

Not available

22

Toro 1030

DUP PART SEE $BOOK

$

$

Not available

23

Toro 915115

See Supercession: 3296-23
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

24

Toro 105874

See Supercession: 92-7104
(Superseded to 92-7104)

$31.99

$

In Stock, only 2 left!

0

25

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

26

Toro 109861

DISCONTINUED

$

$

Not available

27

Toro 109862

DISCONTINUED

$

$

Not available

28

Toro 908036

See Supercession: 323-8
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

29

Toro 109853

DISCONTINUED

$

$

Not available

30

Toro 900062

See Supercession: 3231-1
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

31

Toro 900090

DISCONTINUED

$

$

Not available

32

Toro 109909

V-BELT

$205.99

$

Usually ships in 3-6 days

0
