05-60SC01 - Toro 60" Side-Discharge Mower Deck (1983) SIDE DISCHARGE MOWER-60 IN. (152 CM)(VEHICLE IDENTIFICATION NUMBER 05-60SC01) Parts Diagram

60" Side-Discharge Mower Deck

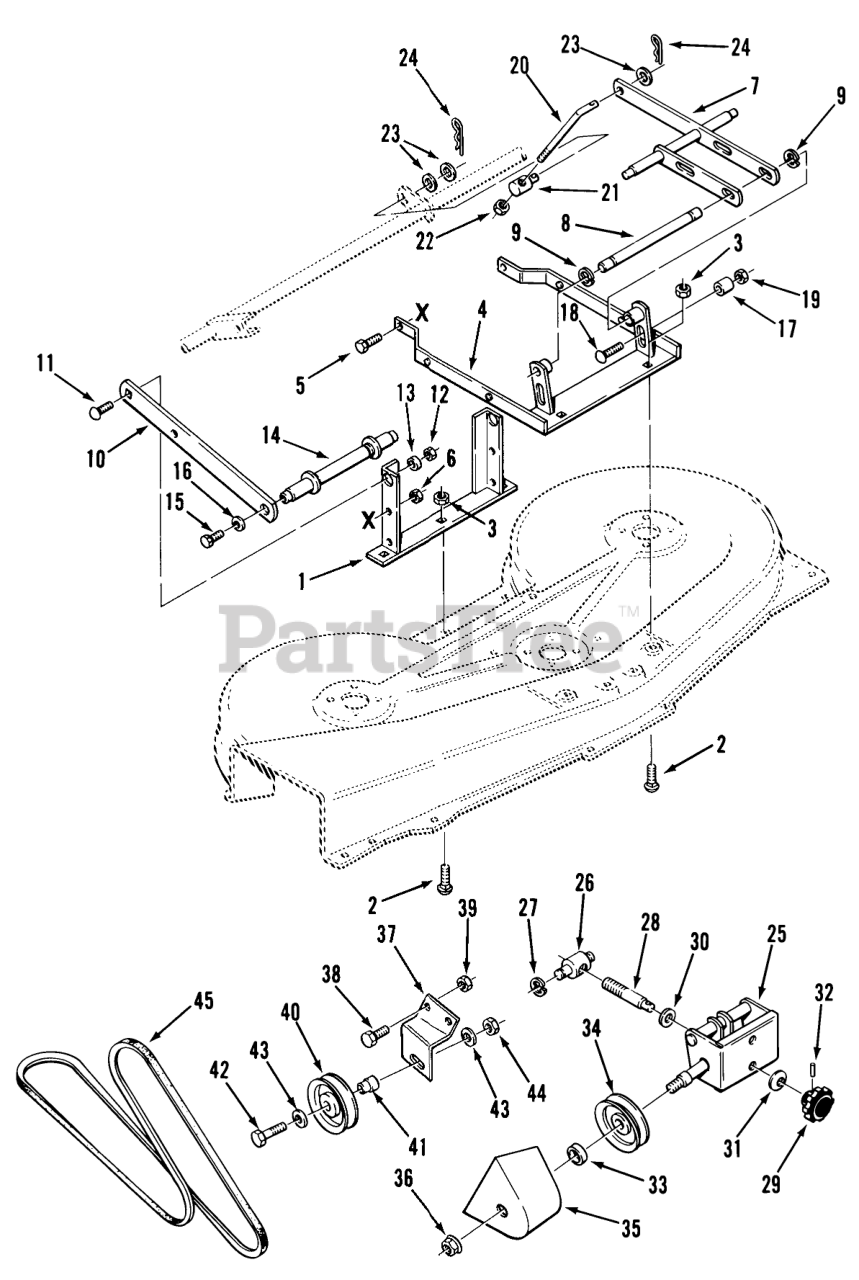

SIDE DISCHARGE MOWER-60 IN. (152 CM)(VEHICLE IDENTIFICATION NUMBER 05-60SC01) Parts Diagram

  • Title

1

Toro 109875

ASSY REAR SUPPORT

$212.99

$

Usually ships in 3-6 days

0

2

Toro 900112

CARRIAGE BOLT

$

$

Not available

3

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

4

Toro 109878

ASSY FRONT HANGER BR

$

$

Not available

5

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

6

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, only 1 left!

0

7

Toro 109883

Leveler Bar
(Superseded to 110267)

$

$

Not available

8

Toro 109887

SHAFT-FRONT

$67.99

$

Usually ships in 3-6 days

0

9

Toro 104510

E-Ring

$

$

Currently unavailable

10

Toro 109890

Draft Bar

$

$

Not available

11

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

12

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.99

$

In Stock, Qty 20+

0

13

Toro 102704

SPACER

$2.99

$

In Stock, only 2 left!

0

14

Toro 109888

Hitch Shaft

$

$

Not available

15

Toro 908032

Bolt
(Superseded to 323-4)

$4.49

$

In Stock, Qty 20+

0

16

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

17

Toro 6595

SPACER-BEARING

$

$

Not available

18

Toro 900093

CARRIAGE BOLT -4

$1.49

$

In Stock, only 3 left!

0

19

Toro 915664

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

20

Toro 109902

ROD-LEVEL ADJUST

$

$

Not available

21

Toro 102213

TRUNION

$84.99

$

Usually ships in 3-6 days

0

22

Toro 915665

Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

23

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

24

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

25

Toro 109782

ASSY FRONT SUPPORT

$

$

Not available

26

Toro 101708

TRUNNION-DOUBLE

$34.99

$

Usually ships in 3-6 days

0

27

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

28

Toro 101842

ROD ADJ

$66.99

$

Usually ships in 3-6 days

0

29

Toro 101851

KNOB-ADJUSTMENT

$26.99

$

In Stock, Qty 5

0

30

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

31

Toro 108571

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

32

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 6

0

33

Toro 101734

SPACER

$5.49

$

In Stock, Qty 8

0

34

Toro 104974

Pulley-V
(Superseded to 92-7103)

$56.99

$

In Stock, Qty 5

0

35

Toro 109803

Belt Cover
(Superseded to 102582-01)

$107.99

$

Usually ships in 3-6 days

0

36

Toro 102976

Nut 3/4-16 MF
(Superseded to 3219-7)

$1.99

$

In Stock, Qty 15

0

37

Toro 109784

BRACKET FLAT IDLER

$

$

Not available

38

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

39

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, only 1 left!

0

40

Toro 104975

PULLEY-FLAT IDLER

$60.99

$

In Stock, only 3 left!

0

41

Toro 109785

SPACER

$

$

Not available

42

Toro 908038

Bolt
(Superseded to 323-10)

$1.49

$

In Stock, Qty 20+

0

43

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

44

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

45

Toro 109908

Mower Drive Belt

$

$

Not available
