058 (195-058-100) - Cub Cadet Grass Catcher (1985) Grass Catcher and 36" Rear Discharge Decks Parts Diagram

Grass Catcher

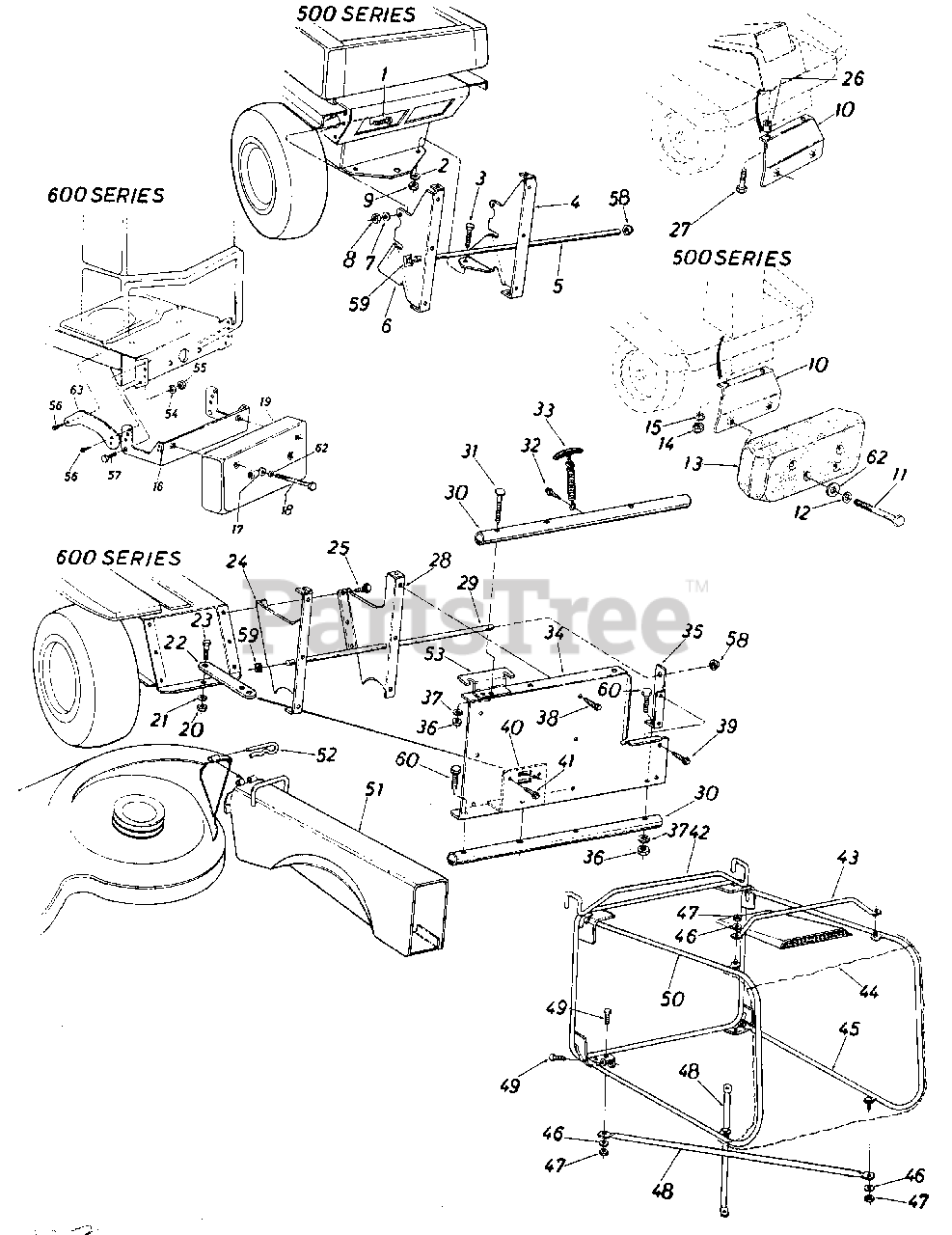

Grass Catcher and 36" Rear Discharge Decks Parts Diagram

  • Title

1

Cub Cadet 710-0376

SCREW-HEX 5/16-18 X 1.00

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0376

SCREW-HEX 5/16-18 X 1.00

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 15970

BRACKET-SUPPORT-RH
(Superseded to 15970A)

$

$

Not available

5

Cub Cadet 749-0613

TUBING

Variations

749-0613-0637

Cub Cadet 749-0613-0637

TUBING - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 15971

BRACKET-SUPPORT-LH

$

$

Not available

7

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 15539

BRACKET-SUPPORT

$

$

Not available

11

Cub Cadet 710-0693

SCREW-HEX 3/8 X 4.5 N.C GR. 5

$15.99

$

In Stock, only 2 left!

0

12

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.99

$

In Stock, Qty 6

0

13

Cub Cadet 723-0367

COUNTERWEIGHT

$

$

Not available

14

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 15873

BRACKET-WEIGHT

$

$

Not available

17

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.99

$

In Stock, Qty 6

0

18

Cub Cadet 710-0693

SCREW-HEX 3/8 X 4.5 N.C GR. 5

$15.99

$

In Stock, only 2 left!

0

19

Cub Cadet 723-0367

COUNTERWEIGHT

$

$

Not available

20

Cub Cadet 712-0922

NUT-HEX JAM 1/2-20
(Superseded to 712-3029)

$7.49

$

In Stock, Qty 8

0

21

Cub Cadet 736-0921

WASHER-LOCK-1/2

$4.99

$

In Stock, Qty 9

0

22

Cub Cadet 05400

BRACKET-LINKAGE

Variations

05400-0637

Cub Cadet 05400-0637

BRACKET-LINKAGE - POWDER BLACK (0637)

$

$

Not available

$

$

23

Cub Cadet 710-0493

SCREW-HEX 1/2-13 X 1.00
(Superseded to 710-3131)

$5.99

$

In Stock, only 1 left!

0

24

Cub Cadet 15363

BRACKET-SUPPORT-LH

$

$

Not available

25

Cub Cadet 710-0726

SCREW-HEX HD TAP

$4.49

$

In Stock, Qty 11

0

26

Cub Cadet 711-0242

SPACER

$4.99

$

In Stock, Qty 8

0

27

Note: Not Part of Kit

$

$

Not available

28

Cub Cadet 15364

BRACKET-SUPPORT-RH

$

$

Not available

29

Cub Cadet 749-0613

TUBING

Variations

749-0613-0637

Cub Cadet 749-0613-0637

TUBING - POWDER BLACK (0637)

$

$

Not available

$

$

30

Cub Cadet 749-0612

TUBING

$

$

Not available

31

Cub Cadet 710-0405

BOLT-CARRIAGE 5/16-18 X 1.75
(Superseded to 710-1174)

$7.99

$

In Stock, Qty 10

0

32

Cub Cadet 710-0776

SCREW-HEX WASH HD
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 15

0

33

Cub Cadet 723-0296

LOCK ASSY-HOOD

$

$

Not available

34

Cub Cadet 15968

ADAPTER-GRASSCATCHER

$

$

Currently unavailable

35

Cub Cadet 15362

BRACKET-SUPPORT-RH

$

$

Currently unavailable

36

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 15459

BRACKET-HITCH

$

$

Currently unavailable

41

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 15981

FRAME-CATCHER

$

$

Not available

43

Cub Cadet 749-0616

HANDLE-CATCHER

$

$

Currently unavailable

44

Cub Cadet 764-0209

BAG-GRASS

$

$

Not available

45

Cub Cadet 15992

FRAME-SIDE

Variations

15992-0637

Cub Cadet 15992-0637

FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

46

Cub Cadet 736-0175

WASHER-SPRING.270 ID X.51 OD X.030
(Superseded to 936-0175)

$4.49

$

In Stock, only 3 left!

0

47

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 749-0615

BRACE-CROSS-BOTTOM

$

$

Not available

49

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 15993

FRAME-SIDE

Variations

15993-0637

Cub Cadet 15993-0637

FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

51

Cub Cadet 15972

EXTENSION-CHUTE

$

$

Currently unavailable

52

Note: Not Part of Kit

$

$

Not available

53

Cub Cadet 15995

PLATE-SUPPORT

$

$

Not available

54

Cub Cadet 736-0171

WASHER-LOCK-7/16

$4.99

$

In Stock, only 4 left!

0

55

Cub Cadet 712-0275

NUT-HEX
(Superseded to 912-3019)

$7.49

$

In Stock, Qty 6

0

56

Cub Cadet 710-0323

SCREW-TRUSS MACH 5/16-18 X .75

$4.99

$

In Stock, only 2 left!

0

57

Cub Cadet 710-0505

SCREW-HEX 7/16-14 X 1.00

$7.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 726-0221

CAP-PUSH

$6.49

$

In Stock, Qty 10

0

59

Cub Cadet 712-0247

NUT-PUSH-SPEED .50 DIA

$

$

Currently unavailable

60

Cub Cadet 710-0380

SCREW-HEX 5/16-18 X 1.75
(Superseded to 710-3180)

$5.99

$

In Stock, Qty 20+

0

Cub Cadet 748-0193

SPACER-.380 ID X .630 OD .565
(Superseded to 948-0193)

$

$

Not available

62

Cub Cadet 736-0280

WASHER-FL
(Superseded to 736-04005)

$9.49

$

Usually ships in 3-6 days

0

63

Cub Cadet 16024

TIE-STRAP

$

$

Not available
