06-37SB01 - Toro 37" Snow Thrower Attachment (1987) SNOWTHROWER-37" (94CM) VEHICLE IDENTIFICATION NUMBER 06-37SB01 Parts Diagram

37" Snow Thrower Attachment

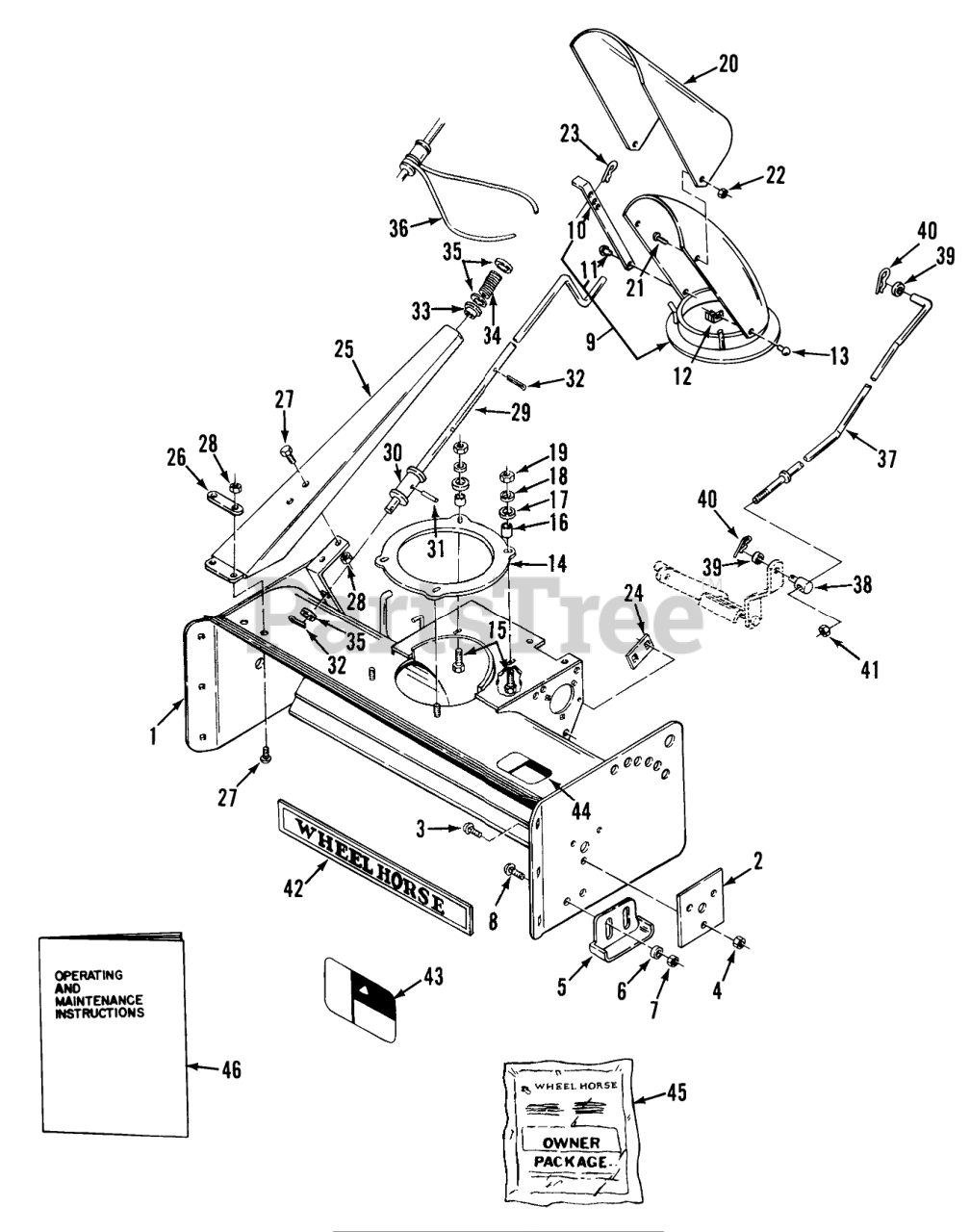

SNOWTHROWER-37" (94CM) VEHICLE IDENTIFICATION NUMBER 06-37SB01 Parts Diagram

  • Title

1

Toro 109222

ASSY WRAPPER R

$

$

Not available

2

Toro 109201

Plate
(Superseded to 93-1618-01)

$44.99

$

In Stock, only 2 left!

0

3

Toro 900036

CARRIAGE BOLT -4

$1.99

$

Usually ships in 3-6 days

0

4

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

5

Toro 111491

Skid
(Superseded to 93-1620-01)

$44.99

$

In Stock, only 3 left!

0

6

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

7

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

8

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 20+

0

9

Toro 5220

Shroud (includes items 10 & 11)

$

$

Not available

10

Toro 2078

ARM R

$

$

Not available

11

Toro 923005

RIVET

$

$

Not available

12

Toro 101447

CLAMP

$29.99

$

Usually ships in 3-6 days

0

13

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

14

Toro 108719

COLLAR

$

$

Not available

15

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

16

Toro 104525

SPACER
(Superseded to 93-3658)

$6.49

$

Usually ships in 3-6 days

0

17

Toro 107675

WASHER

$3.49

$

In Stock, Qty 20+

0

18

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

19

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

20

Toro 2165

Deflector
(Superseded to 110978)

$

$

Not available

21

Toro 910836

MACH. SCREW

$

$

Not available

22

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

23

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 14

0

24

Toro 107530

STRAP

$

$

Not available

25

Toro 107524

Crank Support

$

$

Not available

26

Toro 7494

Bar-Reinforcing

$

$

Not available

27

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 19

0

28

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

29

Toro 108721

CRANK R

$

$

Not available

30

Toro 105049

TUBE R

$

$

Not available

31

Toro 933215

ROLL PIN 1/4 X 1-1/4

$1.99

$

Usually ships in 3-6 days

0

32

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 20+

0

33

Toro 5982

NYLINER BUSHING

$

$

Not available

34

Toro 2354

SPRING-COMPRESSION

$20.99

$

Usually ships in 3-6 days

0

35

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

36

Toro 104460

CABLE

$22.99

$

In Stock, Qty 7

0

37

Toro 109348

ROD LIFT

$

$

Not available

38

Toro 102213

TRUNION

$68.99

$

Usually ships in 3-6 days

0

39

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

40

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

41

Toro 915665

Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

42

Toro 111183

DECAL WHEEL HORSE

$

$

Not available

43

Toro 111190

DECAL DANGER

$

$

Not available

44

Toro 111189

DECAL DANGER

$

$

Not available

45

Toro 803348

Loose Parts Package

$

$

Not available
