06-37SK02 - Toro 37" Snow Thrower Attachment (1989) SNOW THROWER 37" (94 CM) VEHICLE IDENTIFICATION NUMBER 06-37SK02 Parts Diagram

37" Snow Thrower Attachment

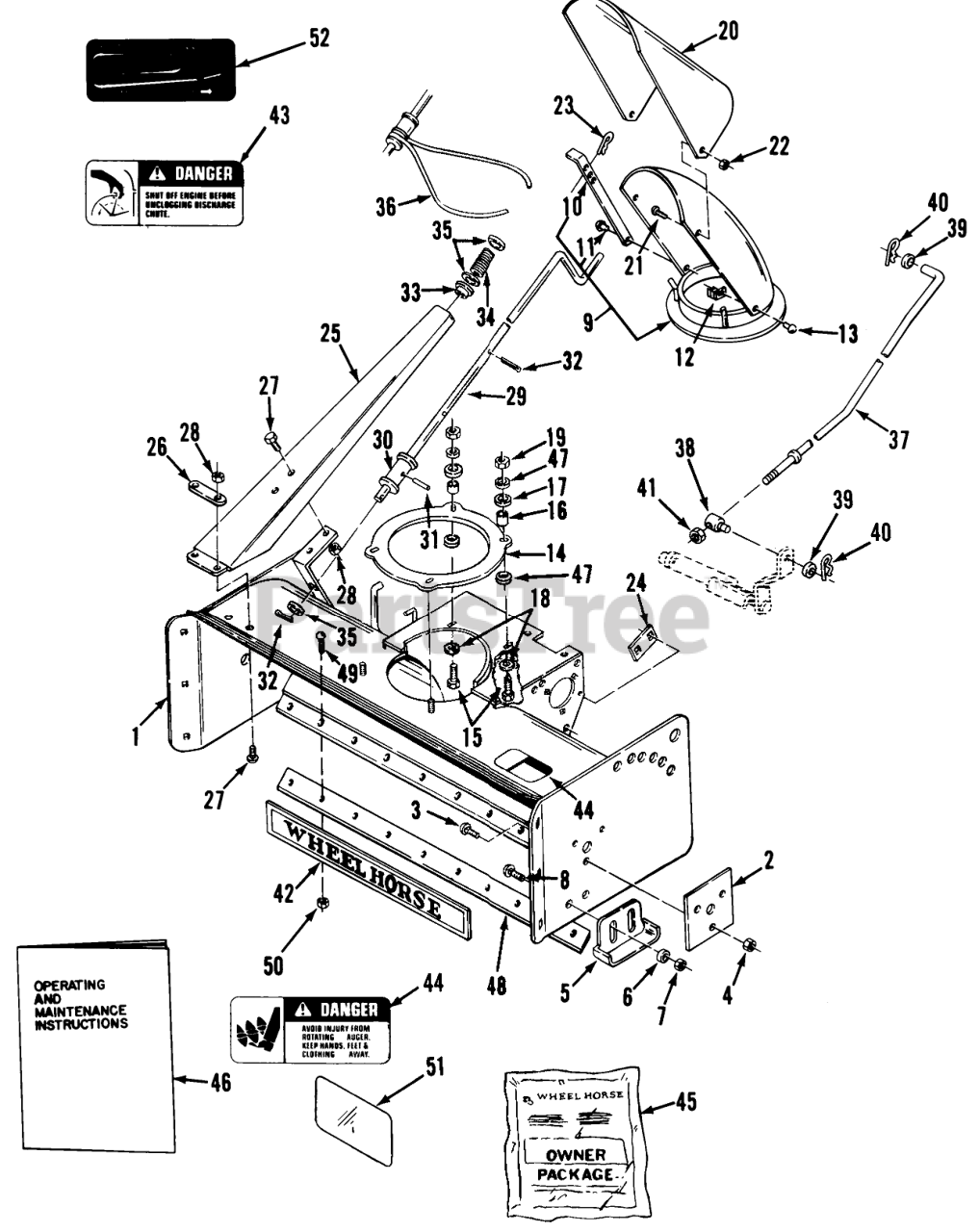

SNOW THROWER 37" (94 CM) VEHICLE IDENTIFICATION NUMBER 06-37SK02 Parts Diagram

  • Title

1

Toro 115482

Snow thrower Wrapper Housing

$

$

Not available

2

Toro 109201

Plate
(Superseded to 93-1618-01)

$54.99

$

In Stock, only 2 left!

0

3

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

4

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

5

Toro 111491

Skid
(Superseded to 93-1620-01)

$47.99

$

In Stock, only 1 left!

0

6

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

7

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

8

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

9

Toro 5220

Shroud (includes items 10 & 11)

$

$

Not available

10

Toro 2078

ARM R

$

$

Not available

11

Toro 923005

RIVET

$

$

Not available

12

Toro 101447

CLAMP

$36.99

$

Usually ships in 3-6 days

0

13

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

14

Toro 108719

COLLAR

$

$

Not available

15

Toro 908035

Bolt
(Superseded to 323-7)

Note: Indicates part of Loose Parts Package Num 807225.

$3.49

$

In Stock, Qty 20+

0

16

Toro 104525

SPACER
(Superseded to 93-3658)

$10.99

$

Usually ships in 3-6 days

0

17

Toro 107675

WASHER

$3.49

$

In Stock, Qty 20+

0

18

Toro 920009

Washer
(Superseded to 3256-24)

Note: Indicates part of Loose Parts Package Num 807225.

$0.99

$

In Stock, Qty 20+

0

19

Toro 915663

NUT
(Superseded to 3296-39)

Note: Indicates part of Loose Parts Package Num 807225.

$2.99

$

In Stock, Qty 20+

0

20

Toro 2165

Deflector
(Superseded to 110978)

$

$

Not available

21

Toro 910836

MACH. SCREW

$

$

Not available

22

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

23

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 9

0

24

Toro 115479

STRAP

Note: Indicates part of Loose Parts Package Num 807225.

$

$

Not available

25

Toro 107524

Crank Support

$

$

Not available

26

Toro 7494

Bar-Reinforcing

Note: Indicates part of Loose Parts Package Num 807225.

$

$

Not available

27

Toro 908032

Bolt
(Superseded to 323-4)

Note: Indicates part of Loose Parts Package Num 807225.

$4.49

$

In Stock, Qty 20+

0

28

Toro 915663

NUT
(Superseded to 3296-39)

Note: Indicates part of Loose Parts Package Num 807225.

$2.99

$

In Stock, Qty 20+

0

29

Toro 108721

CRANK R

$

$

Not available

30

Toro 105048

ASSY TUBE CRANK R

$95.99

$

Usually ships in 3-6 days

0

31

Toro 933215

ROLL PIN 1/4 X 1-1/4

$2.49

$

Usually ships in 3-6 days

0

32

Toro 932016

Pop Rivet
(Superseded to 3272-10)

Note: Indicates part of Loose Parts Package Num 807225.

$1.49

$

In Stock, Qty 20+

0

33

Toro 5982

NYLINER BUSHING

Note: Indicates part of Loose Parts Package Num 807225.

$

$

Not available

34

Toro 2354

SPRING-COMPRESSION

$21.99

$

Usually ships in 3-6 days

0

35

Toro 920011

Washer
(Superseded to 3256-26)

Note: Indicates part of Loose Parts Package Num 807225.

$0.99

$

In Stock, Qty 20+

0

36

Toro 104460

CABLE

Note: Indicates part of Loose Parts Package Num 807225.

$22.99

$

In Stock, Qty 6

0

37

Toro 114571

ROD-LIFT B

$

$

Not available

38

Toro 102213

TRUNION

Note: Indicates part of Loose Parts Package Num 807225.

$84.99

$

Usually ships in 3-6 days

0

39

Toro 920011

Washer
(Superseded to 3256-26)

Note: Indicates part of Loose Parts Package Num 807225.

$0.99

$

In Stock, Qty 20+

0

40

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

Note: Indicates part of Loose Parts Package Num 807225.

$1.99

$

In Stock, Qty 20+

0

41

Toro 915665

Nut
(Superseded to 3296-23)

Note: Indicates part of Loose Parts Package Num 807225.

$1.49

$

In Stock, Qty 20+

0

42

Toro 111183

DECAL WHEEL HORSE

$

$

Not available

43

Toro 111190

DECAL DANGER

$

$

Not available

44

Toro 111189

DECAL DANGER

$

$

Not available

45

Toro 807225

Loose Parts Package

$

$

Not available

46

Toro 810606R1

Owner-s Manual

Note: Indicates part of Loose Parts Package Num 807225.

$

$

Currently unavailable

47

Toro 2844

WASHER

Note: Indicates part of Loose Parts Package Num 807225.

$3.49

$

In Stock, Qty 20+

0

48

Toro 114042

Reversible Scraper
(Superseded to 79-6170-03)

$106.99

$

Usually ships in 3-6 days

0

49

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

50

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

51

Toro 112403

DECAL-OVERLAY

$

$

Not available
