06-42BL01 - Toro 42" Snow Blade (1987) SNOW BLADE-42 IN (107 CM) VEHICLE IDENTIFICATION NUMBER 06-42BL01 Parts Diagram

42" Snow Blade

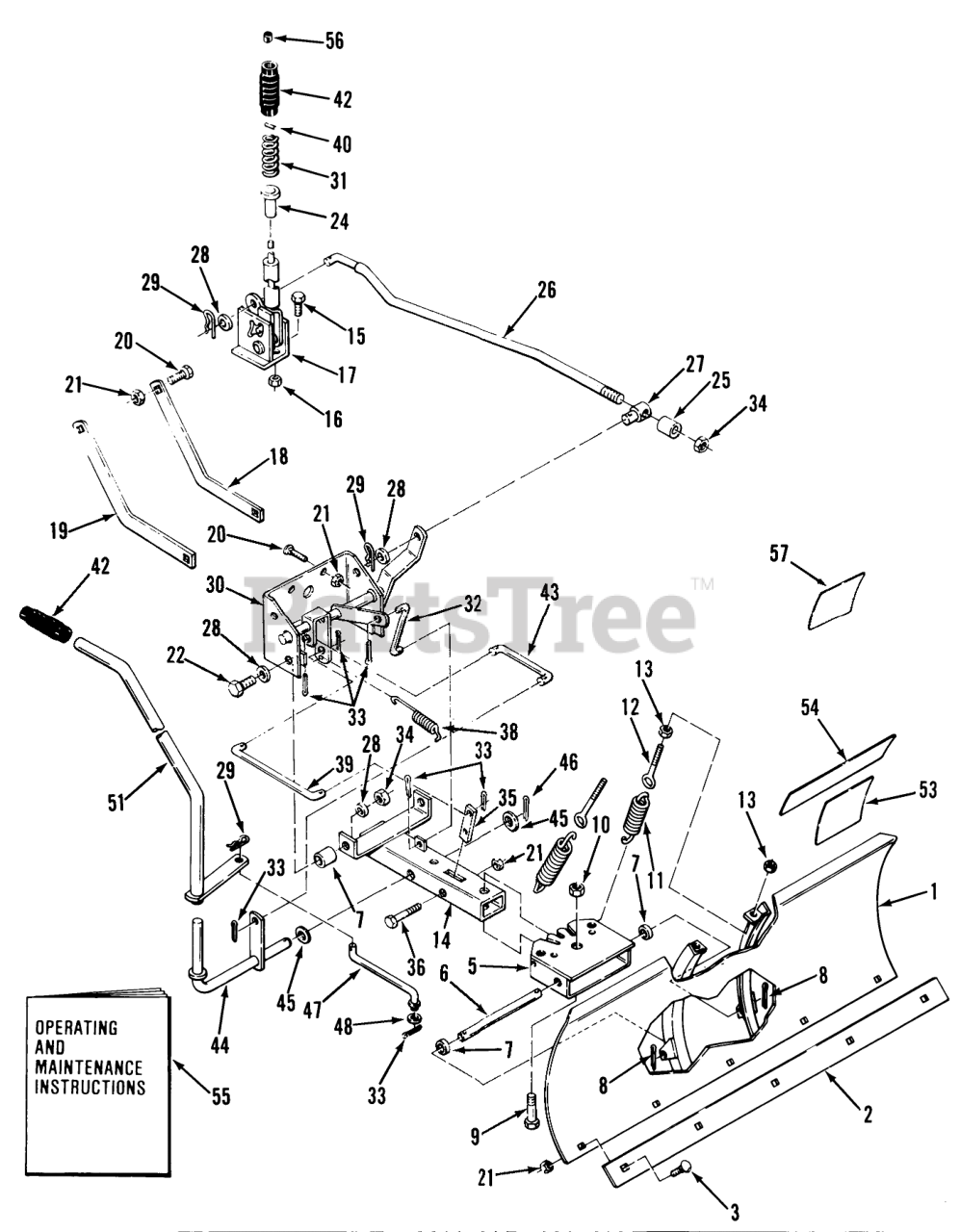

SNOW BLADE-42 IN (107 CM) VEHICLE IDENTIFICATION NUMBER 06-42BL01 Parts Diagram

  • Title

1

Toro 108727

Blade
(Superseded to 92-6037-03)

$

$

Not available

2

Toro 2346

Plate
(Superseded to 92-6034-03)

$99.99

$

Usually ships in 3-6 days

0

3

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

5

Toro 108728

ASSY-QUADRANT R

$

$

Not available

6

Toro 4564

ROD-LOWER

Note: Indicates part of Loose Parts Package 807116.

$

$

Not available

7

Toro 106898

Spacer
(Superseded to 92-6035)

Note: Indicates part of Loose Parts Package 807116.

$

$

Not available

8

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

Note: Indicates part of Loose Parts Package 807116.

$0.99

$

Usually ships in 3-6 days

0

9

Toro 908254

HEX HD CAP SCREW

$

$

Not available

10

Toro 915640

Nut
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 7

0

11

Toro 4629

SPRING

Note: Indicates part of Loose Parts Package 807116.

$86.99

$

In Stock, only 1 left!

0

12

Toro 100653

EYEBOLT

Note: Indicates part of Loose Parts Package 807116.

$27.99

$

Usually ships in 3-6 days

0

13

Toro 915236

Nut
(Superseded to 9152366)

Note: Indicates part of Loose Parts Package 807116.

$3.99

$

In Stock, only 1 left!

0

14

Toro 112339

ASS'Y-FRAME R

$

$

Not available

15

Toro 900039

Bolt-Carriage
(Superseded to 3230-3)

Note: Indicates part of Loose Parts Package 807116.

$1.49

$

In Stock, Qty 20+

0

16

Toro 915662

Nut
(Superseded to 3296-29)

Note: Indicates part of Loose Parts Package 807116.

$2.49

$

In Stock, Qty 20+

0

17

Toro 112349

ASS'Y-LIFT HANDLE R

$

$

Not available

18

Toro 112386

BRACE-RH R

$

$

Not available

19

Toro 112387

Brace-RH
(Superseded to 114902)

$

$

Not available

20

Toro 900063

Bolt
(Superseded to 323-12)

Note: Indicates part of Loose Parts Package 807116.

$2.99

$

In Stock, Qty 20+

0

21

Toro 915663

NUT
(Superseded to 3296-39)

Note: Indicates part of Loose Parts Package 807116.

$2.99

$

In Stock, Qty 20+

0

22

Toro 908059

Hhcs
(Superseded to 325-6)

$3.99

$

In Stock, only 2 left!

0

24

Toro 8130

RETAINER-SPRING

$24.99

$

Usually ships in 3-6 days

0

25

Toro 111580

Spacer
(Superseded to 92-6036)

Note: Indicates part of Loose Parts Package 807116.

$9.99

$

Usually ships in 3-6 days

0

26

Toro 112342

Rod
(Superseded to 113286)

$

$

Not available

27

Toro 102213

TRUNION

Note: Indicates part of Loose Parts Package 807116.

$84.99

$

Usually ships in 3-6 days

0

28

Toro 920011

Washer
(Superseded to 3256-26)

Note: Indicates part of Loose Parts Package 807116.

$0.99

$

In Stock, Qty 20+

0

29

Toro 933512

Hairpin
(Superseded to 9335124)

Note: Indicates part of Loose Parts Package 807116.

$2.99

$

In Stock, Qty 5

0

30

Toro 112344

ASS'Y-BELLCRANK L R

$

$

Not available

31

Toro 3624

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

32

Toro 108744

Rod
(Superseded to 114907)

Note: Indicates part of Loose Parts Package 807116.

$

$

Not available

33

Toro 932016

Pop Rivet
(Superseded to 3272-10)

Note: Indicates part of Loose Parts Package 807116.

$1.49

$

In Stock, Qty 20+

0

34

Toro 915665

Nut
(Superseded to 3296-23)

Note: Indicates part of Loose Parts Package 807116.

$1.49

$

In Stock, Qty 20+

0

35

Toro 108745

LATCH-QUADRANT R
(Superseded to 92-6038-03)

$

$

Not available

36

Toro 908043

HHCS
(Superseded to 323-15)

$1.99

$

In Stock, Qty 20+

0

38

Toro 102572

SPRING

$24.99

$

Usually ships in 3-6 days

0

39

Toro 108747

ROD-LATCH

$

$

Not available

40

Toro 933148

PIN-SPIROL

$0.99

$

In Stock, only 3 left!

0

42

Toro 6542

HANDGRIP

$

$

Not available

43

Toro 108749

ROD-BELLCRANK

$

$

Not available

44

Toro 108750

Handle Pivot
(Superseded to 92-6042-03)

$

$

Not available

45

Toro 920015

Washer
(Superseded to 3256-28)

$3.99

$

In Stock, Qty 20+

0

46

Toro 932018

Cotter Pin
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 16

0

47

Toro 108753

ROD-ANGLING

$

$

Not available

48

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

51

Toro 108754

ASSY-HANDLE R
(Superseded to 92-6039-03)

$

$

Not available

53

Toro 112687

DECAL-CAUTION

$

$

Not available

54

Toro 111183

DECAL WHEEL HORSE

$

$

Not available

55

Toro 810454R1

Operating and Maintenance Instructions

Note: Indicates part of Loose Parts Package 807116.

$

$

Currently unavailable

56

Toro 105316

CAP-ROD, PLUNGER

$1.99

$

In Stock, Qty 20+

0

57

Toro 111403

Decal-VIN Overlay

$

$

Currently unavailable
