06-42BX01 - Toro 42" Snow Blade (1980) Snow Blade-42 In. ( 107 Cm) Parts Diagram

42" Snow Blade

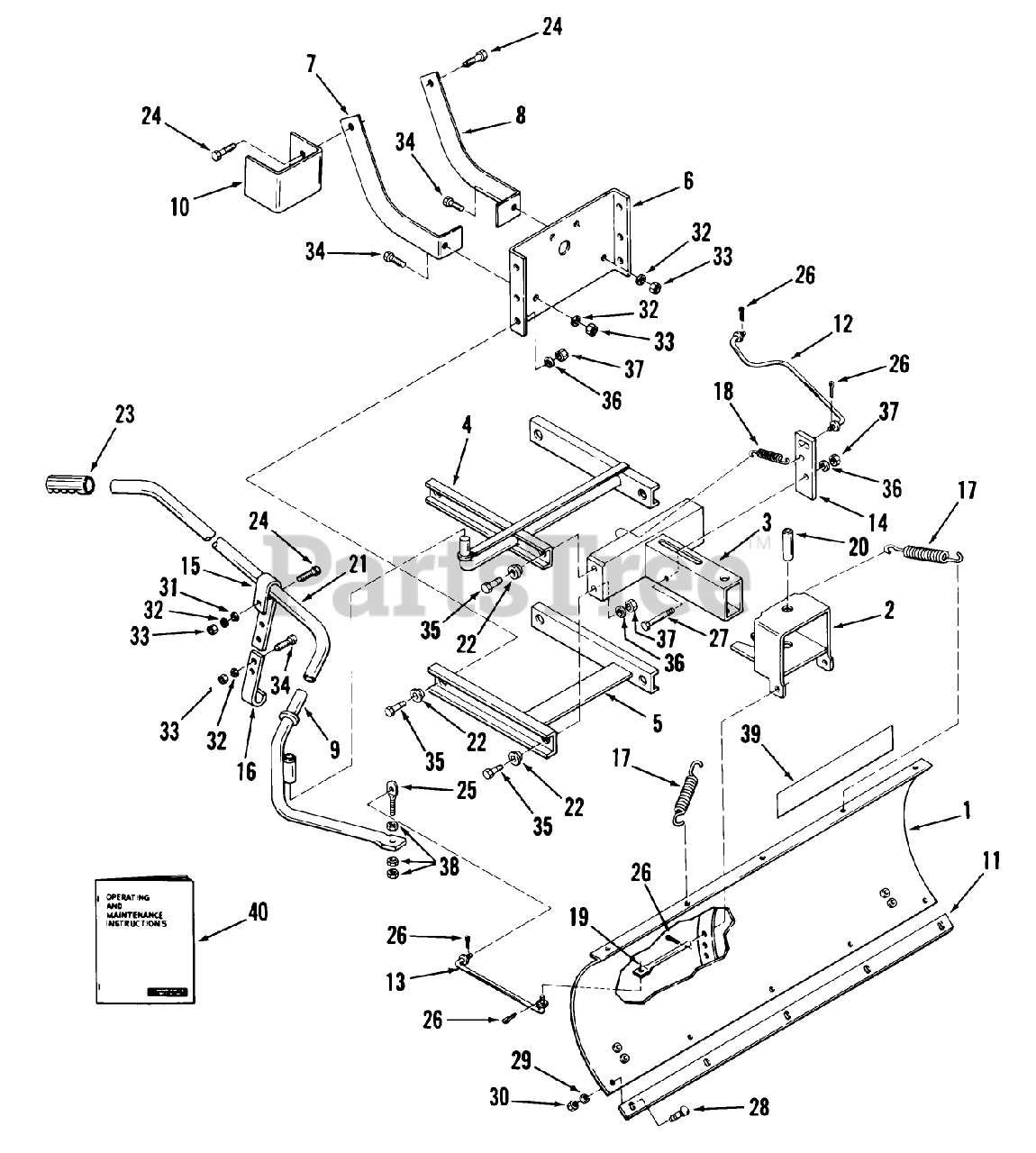

Snow Blade-42 In. ( 107 Cm) Parts Diagram

  • Title

1

Toro 226350

Blade

$

$

Currently unavailable

2

Toro 226351

DISCONTINUED

$

$

Not available

3

Toro 226352

DISCONTINUED

$

$

Not available

4

Toro 226353

DISCONTINUED

$

$

Not available

5

Toro 226354

DISCONTINUED

$

$

Not available

6

Toro 226355

DISCONTINUED

$

$

Not available

7

Toro 226356

DISCONTINUED

$

$

Not available

8

Toro 226357

DISCONTINUED

$

$

Not available

9

Toro 226358

DISCONTINUED

$

$

Not available

10

Toro 226359

DISCONTINUED

$

$

Not available

11

Toro 226360

DISCONTINUED

$

$

Not available

12

Toro 226361

DISCONTINUED

$

$

Not available

13

Toro 226362

DISCONTINUED

$

$

Not available

14

Toro 226363

DISCONTINUED

$

$

Not available

15

Toro 226364

DISCONTINUED

$

$

Not available

16

Toro 226373

DISCONTINUED

$

$

Not available

17

Toro 226365

DISCONTINUED

$

$

Not available

18

Toro 226366

DISCONTINUED

$

$

Not available

19

Toro 226367

DISCONTINUED

$

$

Not available

20

Toro 226368

DISCONTINUED

$

$

Not available

21

Toro 226369

DISCONTINUED

$

$

Not available

22

Toro 226370

SPACER-PAR BAR

$

$

Not available

23

Toro 226371

DISCONTINUED

$

$

Not available

24

Toro 908021

See Supercession: 322-7
(Superseded to 322-7)

$1.49

$

In Stock, only 4 left!

0

25

Toro 226372

DISCONTINUE

$

$

Not available

26

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

27

Toro 908040

See Supercession: 323-12
(Superseded to 323-12)

$2.99

$

In Stock, Qty 7

0

28

Toro 900015

See Supercession: 3229-1
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 5

0

29

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

30

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

31

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

32

Toro 920082

See Supercession: 3253-4
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

33

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

34

Toro 908019

See Supercession: 322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

35

Toro 908034

See Supercession: 323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

36

Toro 920083

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 8

0

37

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

38

Toro 915236

See Supercession: 9152366
(Superseded to 9152366)

$3.99

$

In Stock, only 1 left!

0

39

Toro 106601

See Supercession: 108580
(Superseded to 10-8580)

$

$

Not available

40

Toro 810015R1

Operating and Maintenance Instructions

$

$

Currently unavailable
