06-42ST04 - Toro 42" Snow Thrower Attachment (1986) SNOWTHROWER-42 IN. (107 CM) VEHICLE IDENTIFICATION NUMBERS 06-42ST04, 06-42SY02 Parts Diagram

42" Snow Thrower Attachment

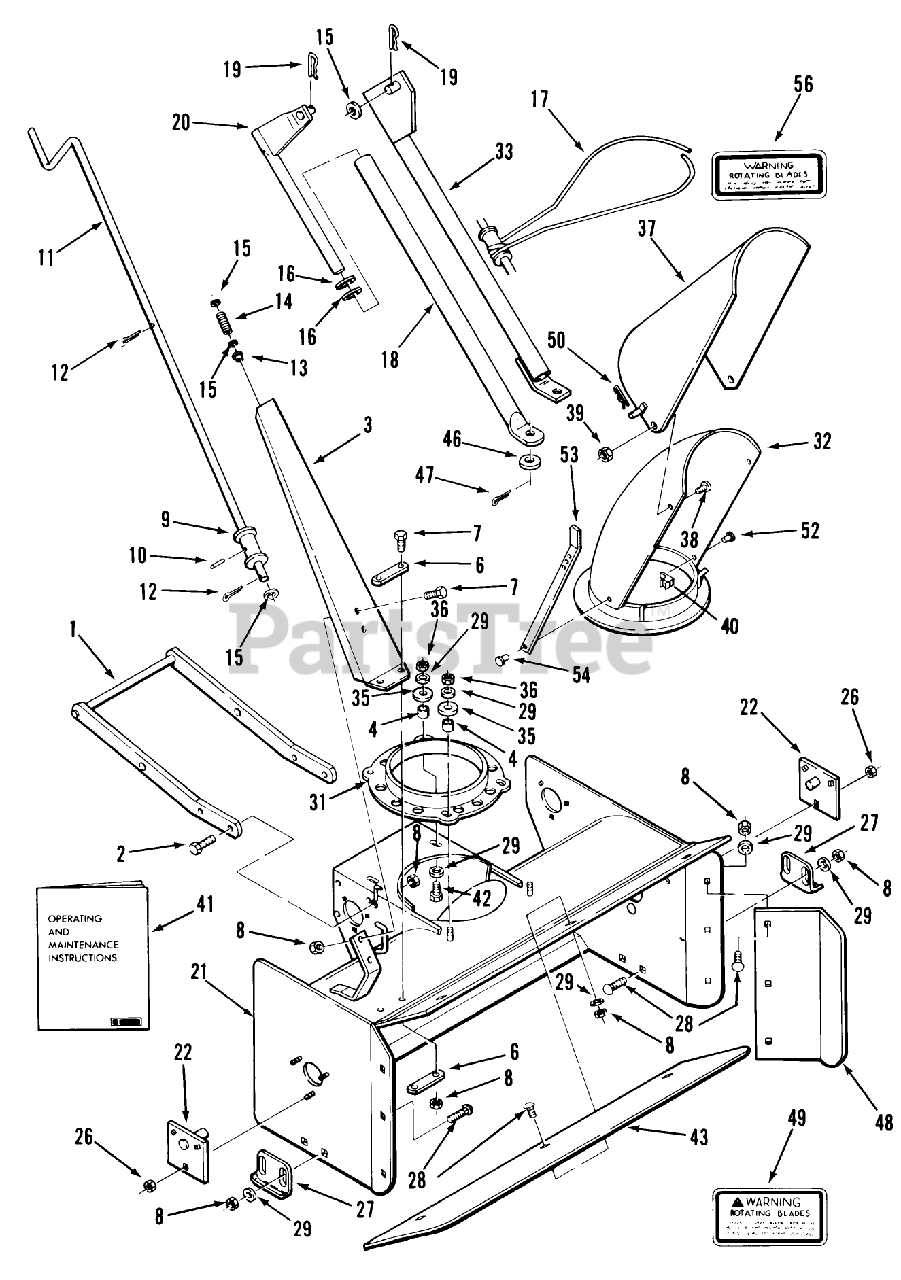

SNOWTHROWER-42 IN. (107 CM) VEHICLE IDENTIFICATION NUMBERS 06-42ST04, 06-42SY02 Parts Diagram

  • Title

1

Toro 104604

Frame-Mounting
(Superseded to 104604-01)

$

$

Not available

2

Toro 908033

Bolt
(Superseded to 110242)

Note: Indicates Part of Loose Parts Package 807036.

$2.49

$

In Stock, Qty 7

0

3

Toro 107524

Crank Support

$

$

Not available

4

Toro 104525

SPACER
(Superseded to 93-3658)

$6.49

$

Usually ships in 3-6 days

0

6

Toro 7494

Bar-Reinforcing

Note: Indicates Part of Loose Parts Package 807036.

$

$

Not available

7

Toro 908032

Bolt
(Superseded to 323-4)

Note: Indicates Part of Loose Parts Package 807036.

$3.99

$

In Stock, Qty 19

0

8

Toro 915113

Nut
(Superseded to 32153-2)

Note: Indicates Part of Loose Parts Package 807036.

$0.99

$

In Stock, Qty 20+

0

9

Toro 105048

ASSY TUBE CRANK R

$79.99

$

Usually ships in 3-6 days

0

10

Toro 933215

ROLL PIN 1/4 X 1-1/4

$1.99

$

Usually ships in 3-6 days

0

11

Toro 108721

CRANK R

$

$

Not available

11

Toro 110041

CRANK R

$

$

Not available

12

Toro 932016

Pop Rivet
(Superseded to 3272-10)

Note: Indicates Part of Loose Parts Package 807036.

$1.49

$

In Stock, Qty 20+

0

13

Toro 5982

NYLINER BUSHING

Note: Indicates Part of Loose Parts Package 807036.

$

$

Not available

14

Toro 2354

SPRING-COMPRESSION

Note: Indicates Part of Loose Parts Package 807036.

$20.99

$

Usually ships in 3-6 days

0

15

Toro 920011

Washer
(Superseded to 3256-26)

Note: Indicates Part of Loose Parts Package 807036.

$0.99

$

In Stock, Qty 20+

0

16

Toro 920015

Washer
(Superseded to 3256-28)

Note: Indicates Part of Loose Parts Package 807036.

$3.49

$

In Stock, Qty 20+

0

17

Toro 104460

CABLE

Note: Indicates Part of Loose Parts Package 807036.

$22.99

$

In Stock, Qty 7

0

18

Toro 107403

ASSY LIFT TUBE R

$

$

Not available

19

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

Note: Indicates Part of Loose Parts Package 807036.

$1.99

$

In Stock, Qty 20+

0

20

Toro 1986

Lid Rod
(Superseded to 101461-03)

$

$

Not available

21

Toro 110027

Wrapper Assembly
(Superseded to 114043)

$

$

Not available

22

Toro 109201

Plate
(Superseded to 93-1618-01)

$44.99

$

In Stock, only 2 left!

0

26

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

27

Toro 108705

Skid
(Superseded to 93-1620-01)

$44.99

$

In Stock, only 3 left!

0

28

Toro 900063

Bolt
(Superseded to 323-12)

Note: Indicates Part of Loose Parts Package 807036.

$2.49

$

In Stock, Qty 20+

0

29

Toro 920009

Washer
(Superseded to 3256-24)

Note: Indicates Part of Loose Parts Package 807036.

$0.99

$

In Stock, Qty 20+

0

31

Toro 108719

COLLAR

$

$

Not available

32

Toro 5220

S/A SHROUD R

$

$

Not available

33

Toro 110033

ASSY LIFT TUBE

$590.99

$

Usually ships in 3-6 days

0

35

Toro 107675

WASHER

$3.49

$

In Stock, Qty 20+

0

36

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

37

Toro 2165

Deflector
(Superseded to 110978)

$

$

Not available

38

Toro 910836

MACH. SCREW

$

$

Not available

39

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

40

Toro 101447

CLAMP

$29.99

$

Usually ships in 3-6 days

0

41

Toro 810264R1

Operating and Maintenance Instructions

$

$

Currently unavailable

42

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

43

Toro 7495

Plate
(Superseded to 93-1616-01)

$

$

Not available

46

Toro 920013

WASHER
(Superseded to 3256-27)

Note: Indicates Part of Loose Parts Package 807036.

$2.99

$

In Stock, only 1 left!

0

47

Toro 932034

Cotter Pin
(Superseded to 3272-21)

Note: Indicates Part of Loose Parts Package 807036.

$3.49

$

In Stock, Qty 6

0

48

Toro 103552

Plate
(Superseded to 93-1617-01)

$77.99

$

Usually ships in 3-6 days

0

49

Toro 108708

DECAL-WARNING

$

$

Not available

50

Toro 933504

Hairpin
(Superseded to 9335044)

Note: Indicates Part of Loose Parts Package 807036.

$1.49

$

In Stock, Qty 14

0

52

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

53

Toro 2078

ARM R

$

$

Not available

54

Toro 923005

RIVET

$

$

Not available

56

Toro 108707

DECAL-WARNING

$18.99

$

Usually ships in 3-6 days

0
