06-42ST05 - Toro 42" Snow Thrower Attachment (1989) Snowthrower-42 In. (107cm) Vehicle Identification Number 06-42st05 Parts Diagram

42" Snow Thrower Attachment

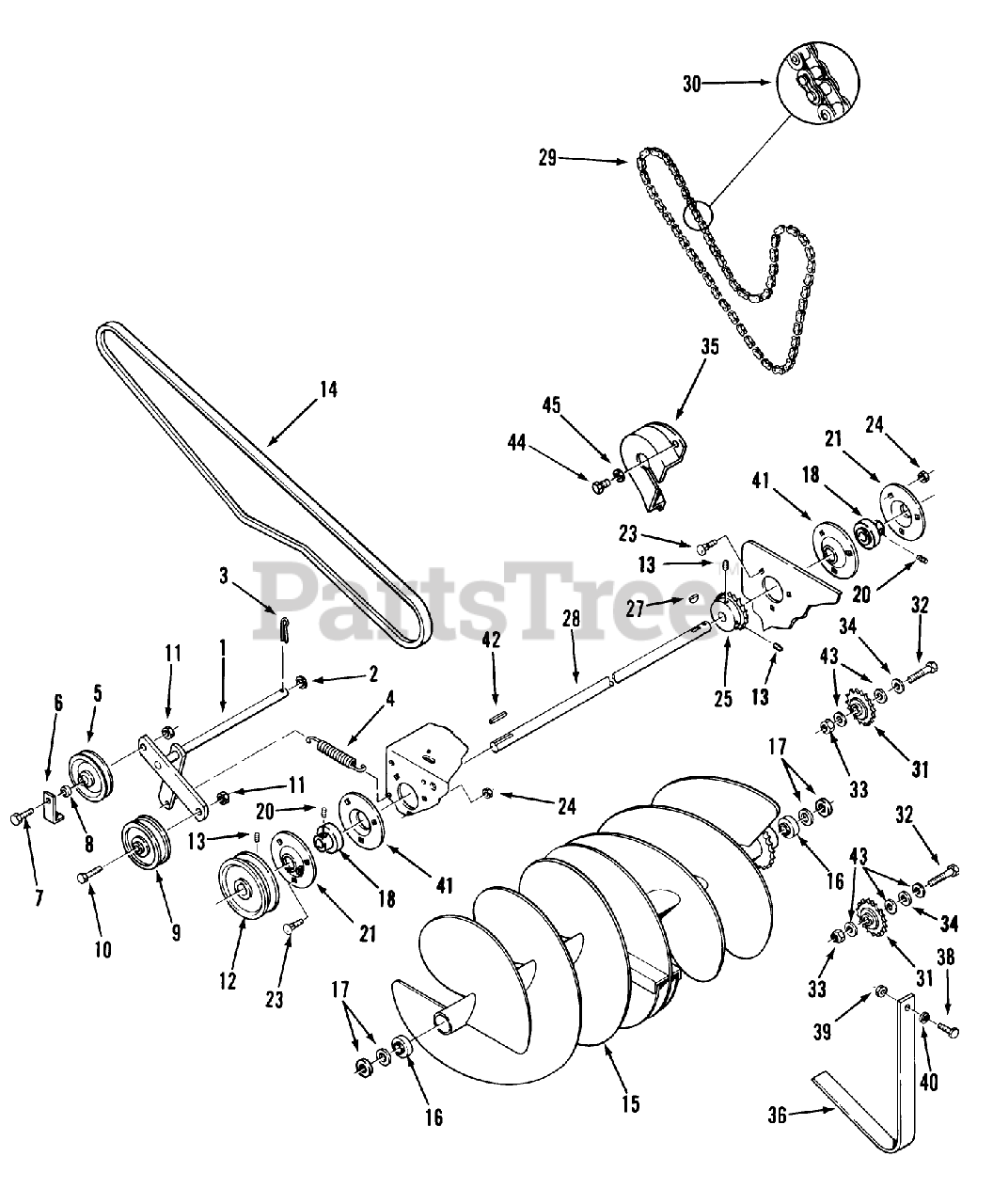

Snowthrower-42 In. (107cm) Vehicle Identification Number 06-42st05 Parts Diagram

  • Title

1

Toro 9596

DISCONTINUED

$

$

Not available

2

Toro 920011

See Supercession: 3256-26
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

3

Toro 932009

See Supercession: 3272-9
(Superseded to 3272-9)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 6651

SPRING *R

Note: Indicates Part of Loose Parts Package 807140.

$27.99

$

In Stock, only 2 left!

0

5

Toro 7451

See Supercession: 95-7668
(Superseded to 95-7668)

$28.99

$

In Stock, only 4 left!

0

6

Toro 7450

See Supercession: 7450-01
(Superseded to 7450-01)

$

$

Not available

7

Toro 908037

See Supercession: 323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

8

Toro 104662

SPACER

$9.49

$

In Stock, only 3 left!

0

9

Toro 112425

See Supercession: 92-7101
(Superseded to 92-7101)

$44.99

$

In Stock, only 2 left!

0

10

Toro 908036

See Supercession: 323-8
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

11

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

12

Toro 113356

PULLEY

$111.99

$

In Stock, only 1 left!

0

13

Toro 909862

See Supercession: 3246-2
(Superseded to 3246-2)

Note: Indicates Part of Loose Parts Package 807140.

$0.99

$

In Stock, Qty 10

0

14

Toro 9750

V-BELT

$53.99

$

In Stock, only 1 left!

0

15

Toro 4467

DISCONTINUED
(Superseded to 105-1478)

$

$

Not available

16

Toro 101480

BEARING-BALL

$55.99

$

In Stock, only 4 left!

0

17

Toro 920015

See Supercession: 3256-28
(Superseded to 3256-28)

$3.99

$

In Stock, Qty 20+

0

18

Toro 110569

BEARING AND COLLAR

$121.99

$

Usually ships in 3-6 days

0

20

Toro 909963

DISCONTINUED

$

$

Not available

21

Toro 110567

FLANGE-ZERK RELUBE

$27.99

$

In Stock, only 2 left!

0

23

Toro 900037

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

24

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

25

Toro 113321

See Supercession: 78-0850-01
(Superseded to 78-0850-01)

$186.99

$

Usually ships in 3-6 days

0

27

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, only 1 left!

0

28

Toro 113320

See Supercession: 113320-01
(Superseded to 113320-01)

$355.99

$

Usually ships in 3-6 days

0

29

Toro 6416

CHAIN

$239.99

$

In Stock, only 1 left!

0

30

Toro 6392

See Supercession: 2710-11
(Superseded to 2710-11)

$6.49

$

Usually ships in 3-6 days

0

31

Toro 2174

See Supercession: 93-1614
(Superseded to 93-1614)

$59.99

$

In Stock, Qty 5

0

32

Toro 908061

See Supercession: 325-8
(Superseded to 325-8)

$5.99

$

In Stock, only 2 left!

0

33

Toro 915115

See Supercession: 3296-23
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

34

Toro 6417

SPACER

$

$

Not available

35

Toro 109218

GUARD-CHAIN

$84.99

$

Usually ships in 3-6 days

0

36

Toro 109244

See Supercession: 109244-01
(Superseded to 109244-01)

$90.99

$

Usually ships in 3-6 days

0

38

Toro 908002

See Supercession: 321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

39

Toro 915968

See Supercession: 32149-2
(Superseded to 32149-2)

$2.99

$

In Stock, Qty 20+

0

40

Toro 920037

DISCONTINUED

$

$

Not available

41

Toro 110568

FLANGE

$20.99

$

In Stock, only 3 left!

0

42

Toro 1005

See Supercession: 5-1077
(Superseded to 5-1077)

Note: Indicates Part of Loose Parts Package 807140.

$7.49

$

In Stock, Qty 14

0

43

Toro 920011

See Supercession: 3256-26
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

44

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

45

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 15

0
