06-449896 (212-406-372) - Hechinger Tiller (1992) Frame, Clutch And Tine Assembly Parts Diagram

Tiller

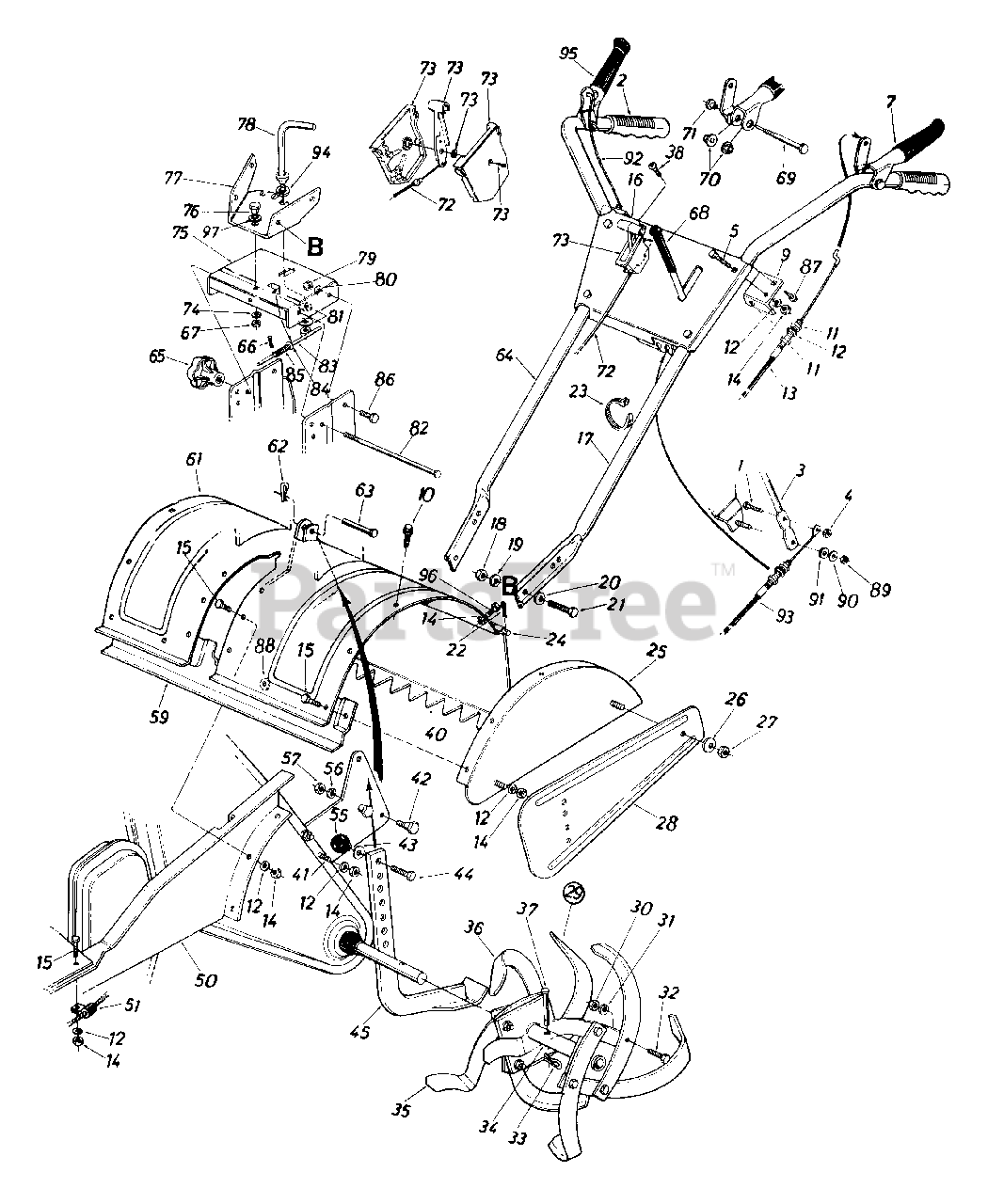

Frame, Clutch And Tine Assembly Parts Diagram

  • Title

1

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 7

0

2

MTD 720-0180

Grip
(Superseded to 720-04083)

$15.99

$

In Stock, only 2 left!

0

3

MTD 747-0517

Clutch Lever

$

$

Not available

4

MTD 712-0117

Hex Cent. L-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

5

MTD 710-0458

Carr. Bolt 5/16-18 x 1.75"

$4.49

$

Usually ships in 3-6 days

0

7

MTD 784-0031

Clutch Grip Ass'y. - L.H.

$

$

Not available

9

MTD 15093C

Clutch Cable Bracket

$

$

Not available

10

MTD 710-0607

Hex Wash. S-Tap Scr. 5/16-18 x .62" Lg.

$6.99

$

In Stock, Qty 11

0

11

MTD 712-0256

Hex Nut 5/16-24 Thd.

$

$

Not available

12

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 746-0535

Clutch Control Cable (Tines)
(Superseded to 946-0535)

$73.99

$

In Stock, Qty 5

0

14

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

15

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

16

MTD 784-0271

Handle Panel Ass'y.

Variations

784-0271-0637

MTD 784-0271-0637

No Longer Available PANEL ASM - POWDER BLACK (0637)

$

$

Not available

784-0271-0638

MTD 784-0271-0638

No Longer Available PANEL ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

784-0271-0674

MTD 784-0271-0674

No Longer Available PANEL ASM - YARDMAN YELLOW (0674)

$

$

Not available

784-0271-0691

MTD 784-0271-0691

No Longer Available PANEL ASM - BLACK JACK (0691)

$

$

Not available

$

$

17

MTD 749-0643A

Handle - L.H.

Variations

749-0643A-0483

MTD 749-0643A-0483

No Longer Available HANDLE - CHARCOAL GRAY (0483)

$

$

Not available

749-0643A-0637

MTD 749-0643A-0637

No Longer Available HANDLE - POWDER BLACK (0637)

$

$

Not available

749-0643A-0638

MTD 749-0643A-0638

No Longer Available HANDLE-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

749-0643A-0674

MTD 749-0643A-0674

No Longer Available HANDLE-LH - YARDMAN YELLOW (0674)

$

$

Not available

$

$

18

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

19

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 11

0

20

MTD 736-0105

Bell-Wash. 3/8" I.D.

$4.99

$

In Stock, Qty 6

0

21

MTD 710-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 16

0

22

MTD 714-0507

Cotter Pin 3/32" Dia. x 3/4"

$4.99

$

Usually ships in 3-6 days

0

23

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

24

MTD 747-0432

Tiller Flap Rod

$14.99

$

Usually ships in 3-6 days

0

25

MTD 14989

End Cover Ass'y. - L.H.

Variations

14989-0637

MTD 14989-0637

No Longer Available COVER ASM - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 14990

End Cover Ass'y. - R.H.

Note: (Not Shown)

Variations

14990-0637

MTD 14990-0637

No Longer Available COVER ASM - POWDER BLACK (0637)

$

$

Not available

14990-0638

MTD 14990-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

26

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

27

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

28

MTD 15390

Side Shield

Note: Code 638

Variations

15390-0480

MTD 15390-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

15390-0498

MTD 15390-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

15390-0499

MTD 15390-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

15390-0629

MTD 15390-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

15390-0637

MTD 15390-0637

No Longer Available SHIELD-SID - POWDER BLACK (0637)

$

$

Not available

15390-0638

MTD 15390-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

15390-0648

MTD 15390-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

15390-0662

MTD 15390-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

15390-0665

MTD 15390-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

15390-0674

MTD 15390-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

29

MTD 15397

L.H. Tine Ass'y. Comp.

Variations

15397-0637

MTD 15397-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 15398

R.H. Tine Ass'y. Comp.

Variations

15398-0637

MTD 15398-0637

No Longer Available TINE ASM- - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.99

$

In Stock, only 2 left!

0

31

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 11

0

32

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 7

0

33

MTD 714-0149B

Hairpin Cotter

$4.99

$

In Stock, only 2 left!

0

34

MTD 14978

Tine Adapter Ass'y.

Variations

14978-0637

MTD 14978-0637

No Longer Available ADAPTER AS - POWDER BLACK (0637)

$

$

Not available

$

$

35

MTD 742-0106

Tine 12" R.H.
(Superseded to 1916946001)

Variations

742-0106-0637

MTD 742-0106-0637

Tiller Bolo Tine, 12" RH 3-Hole - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

36

MTD 742-0105

Tine 12" L.H.

Variations

742-0105-0637

MTD 742-0105-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 711-0415

Clevis Pin 3/8" Dia.

$4.99

$

Usually ships in 3-6 days

0

38

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.99

$

In Stock, Qty 7

0

40

MTD 14979

Tine Shield Flap
(Superseded to 786-0113)

Variations

14979-0483

MTD 14979-0483

USE 786-0113A SHIELD-REAR TIN - CHARCOAL GRAY (0483)

$77.99

$

Usually ships in 3-6 days

0

14979-0498

MTD 14979-0498

Rear Tine Shield - OLD CUB YELLOW (0498)

$95.99

$

In Stock, only 3 left!

0

14979-0637

MTD 14979-0637

USE 786-0113A SHIELD-REAR TIN - POWDER BLACK (0637)

$77.99

$

Usually ships in 3-6 days

0

14979-0638

MTD 14979-0638

SHIELD-REAR TINE - MTD/TROY-BILT RED (0638)

$95.99

$

Usually ships in 3-6 days

0

14979-0665

MTD 14979-0665

SHIELD-REAR TINE - YARDMAN GREEN (0665)

$77.99

$

Usually ships in 3-6 days

0

14979-0606

MTD 14979-0606

No Longer Available SHIELD - MAJESTIC ORANGE (0606)

$

$

Not available

14979-0662

MTD 14979-0662

No Longer Available SHIELD - OYSTER GRAY (0662)

$

$

Not available

$73.99

$

Usually ships in 3-6 days

0

41

MTD 710-0736

Hex Bolt 5/16-18 x 1.0" Lg.

$

$

Not available

42

MTD 738-0507B

Shld. Bolt 1/2" Dia. x .43"

$4.99

$

In Stock, only 2 left!

0

43

MTD 736-0117

Fl-Wash. 3/8" I.D. x 5/8" O.D.
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

44

MTD 710-0216

Hex Bolt 3/8-16 x 3/4" Lg.

$4.49

$

In Stock, only 4 left!

0

45

MTD 14992

Depth Bar Ass'y.
(Superseded to 786-0120-0637)

Variations

14992-0637

MTD 14992-0637

Depth Bar Assembly - POWDER BLACK (0637)

$70.99

$

In Stock, only 3 left!

0

$70.99

$

In Stock, only 3 left!

0

50

MTD 14975

Frame Rail - L.H.

Note: Code 638

Variations

14975-0637

MTD 14975-0637

No Longer Available RAIL-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 726-0175

Clamp 5/16" Dia.

$

$

Not available

55

MTD 720-0165

Ball Knob 11/4" Dia.
(Superseded to 920-0232)

$11.99

$

In Stock, Qty 6

0

56

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 11

0

57

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

59

MTD 15393

Brkt. Reinforcement

Variations

15393-0637

MTD 15393-0637

No Longer Available BRACKET-RE - POWDER BLACK (0637)

$

$

Not available

$

$

61

MTD 784-0026

Tine Shield Ass'y.

Variations

784-0026-0498

MTD 784-0026-0498

No Longer Available SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

784-0026-0638

MTD 784-0026-0638

No Longer Available SHIELD-TIN - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

62

MTD 714-0149B

Hairpin Cotter

$4.99

$

In Stock, only 2 left!

0

63

MTD 711-0415

Clevis Pin 3/8" Dia.

$4.99

$

Usually ships in 3-6 days

0

64

MTD 749-0642A

Handle - R.H.

Variations

749-0642A-0637

MTD 749-0642A-0637

No Longer Available HANDLE - POWDER BLACK (0637)

$

$

Not available

749-0642A-0638

MTD 749-0642A-0638

No Longer Available HANDLE-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

749-0642A-0674

MTD 749-0642A-0674

No Longer Available HANDLE-RH - YARDMAN YELLOW (0674)

$

$

Not available

$

$

65

MTD 720-0195

Hand Knob

$16.99

$

Usually ships in 3-6 days

0

66

MTD 714-0127

Cotter Pin 1/16" Dia. x .75"

$

$

Not available

67

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.99

$

In Stock, only 2 left!

0

68

MTD 720-0143

Grip

$

$

Not available

69

MTD 738-0575

Shoulder Bolt .375" Dia. x 1.37" Lg.

$

$

Not available

70

MTD 741-0402

Hex Flange Plastic Bearing

$

$

Not available

71

MTD 738-0561

Shoulder Nut 1/4-20 Thd.
(Superseded to 938-0561)

$

$

Not available

72

MTD 746-0502

Throttle Control Wire
(Superseded to 946-0502)

$26.99

$

In Stock, only 1 left!

0

73

MTD 831-08234

Throttle Control Box Ass'y.

$

$

Currently unavailable

74

MTD 736-0219

Bell-Wash. .40" I.D. x 1.13"
(Superseded to 936-0219)

$4.49

$

In Stock, only 1 left!

0

75

MTD 784-0022

Handle Pivot Bracket

Variations

784-0022-0498

MTD 784-0022-0498

No Longer Available BRACKET - OLD CUB YELLOW (0498)

$

$

Not available

784-0022-0499

MTD 784-0022-0499

No Longer Available BRACKET - CUB BEIGE (0499)

$

$

Not available

784-0022-0637

MTD 784-0022-0637

No Longer Available BRACKET-PI - POWDER BLACK (0637)

$

$

Not available

784-0022-0638

MTD 784-0022-0638

No Longer Available BRACKET - MTD/TROY-BILT RED (0638)

$

$

Not available

784-0022-0687

MTD 784-0022-0687

No Longer Available BRACKET - PINE GREEN (0687)

$

$

Not available

$

$

76

MTD 738-0322

Shoulder Bolt 5/8" Dia. x .22" Lg.
(Superseded to 738-0322A)

$7.49

$

In Stock, only 1 left!

0

77

MTD 784-0019

Handle Mtg. Bracket

Variations

784-0019-0498

MTD 784-0019-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

784-0019-0637

MTD 784-0019-0637

No Longer Available 28DCKET-HA - POWDER BLACK (0637)

$

$

Not available

784-0019-0638

MTD 784-0019-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

78

MTD 784-0025

Adj. Handle Ass'y.

$

$

Currently unavailable

79

MTD 712-0375

Hex Cent, L-Nut 3/8-16 Thd.

$4.99

$

In Stock, only 2 left!

0

80

MTD 736-0105

Bell-Wash. .40" I.D. x .88"

$4.99

$

In Stock, Qty 6

0

81

MTD 736-0253

Bell-Wash. 1/2" I.D. x 1.00"

$4.49

$

In Stock, Qty 20+

0

82

MTD 711-0765

Lock Pin 5/16" Dia. x 8"

$

$

Not available

83

MTD 784-0023

Lower Sliding Ass'y.

$

$

Not available

84

MTD 736-0463

Fl-Wash. .291" I.D. x .62"

$4.99

$

In Stock, Qty 15

0

85

MTD 732-0145

Compression Spring 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

86

MTD 738-0147

Shoulder Bolt 1/2" Dia. x .170" Lg.

$

$

Not available

87

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

88

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

89

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

90

MTD 736-0159

Fl-Wash. .344" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

91

MTD 735-0126

Rubber Wash. .33 I.D. x .87"
(Superseded to 735-0126A)

$

$

Not available

92

MTD 746-0496

Control Cable (Forward)
(Superseded to 946-0496)

$86.99

$

In Stock, only 2 left!

0

93

MTD 746-0571

Control Cable (Reverse)
(Superseded to 946-0571)

$73.99

$

In Stock, only 4 left!

0

94

MTD 736-0285

Fl-Wash. .62" I.D. x 1.57"

$4.49

$

In Stock, Qty 20+

0

95

MTD 784-0270

Clutch Grip Ass'y. - R.H.

$

$

Not available

96

MTD 710-0528

Hex Bolt 5/16-18 x 1.25"

$4.99

$

In Stock, Qty 20+

0

97

MTD 736-0256

Fl-Wash. .64" I.D. x .94"
(Superseded to 936-0256)

$7.99

$

Usually ships in 3-6 days

0
