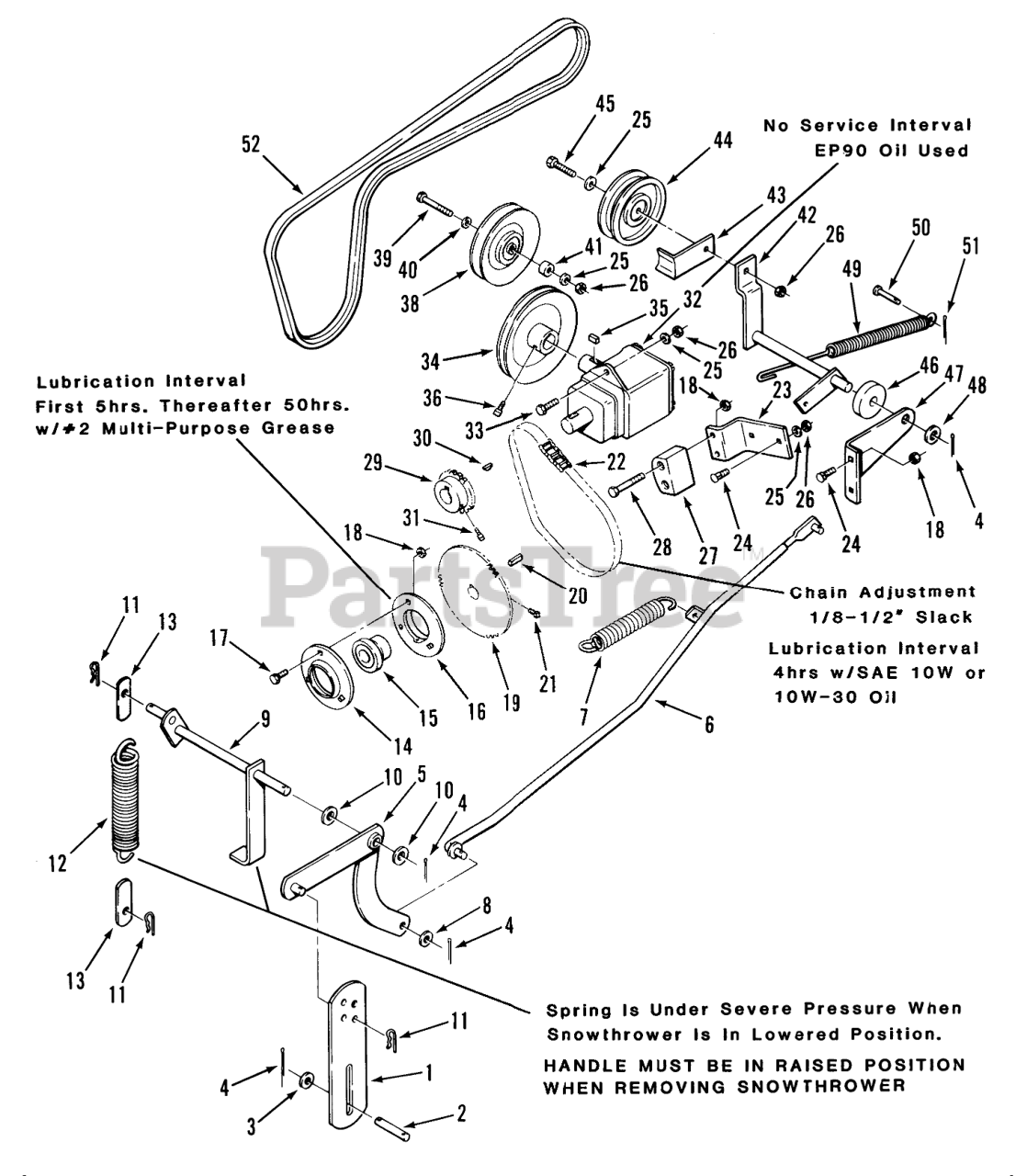

06-44SC01 - Toro 44" Two Stage Snow Thrower Attachment (1990) DUAL STAGE SNOWTHROWER-44 IN. (111.8 CM) VEHICLE IDENTIFICATION NUMBER-06-44SC01 Parts Diagram

44" Two Stage Snow Thrower Attachment

DUAL STAGE SNOWTHROWER-44 IN. (111.8 CM) VEHICLE IDENTIFICATION NUMBER-06-44SC01 Parts Diagram

  • Title

1

Toro 117219

LINK-LIFT R

$

$

Not available

2

Toro 933001

CLEVIS PIN

$

$

Not available

3

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

4

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

5

Toro 117543

WLDMT-SNOWTHWR LI R

$

$

Not available

6

Toro 117556

WLDMT-LIFT ROD R

$

$

Not available

7

Toro 110614

SPRING

$

$

Not available

8

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, Qty 6

0

9

Toro 116906

WLDMT-SPRING SUPP R
(Superseded to 116906-01)

$

$

Not available

10

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

11

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

12

Toro 4629

SPRING

$70.99

$

In Stock, only 2 left!

0

13

Toro 117539

RETAINER-SPRING R
(Superseded to 117539-01)

$19.99

$

Usually ships in 3-6 days

0

14

Toro 110568

Flange

$18.99

$

Usually ships in 3-6 days

0

15

Toro 110569

BEARING AND COLLAR

$108.99

$

In Stock, only 4 left!

0

16

Toro 119020

FLANGE-RELUBE

$24.99

$

Usually ships in 3-6 days

0

17

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

18

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

19

Toro 116919

SPROCKET-33T

$266.99

$

Usually ships in 3-6 days

0

20

Toro 6366

KEY

$5.49

$

Usually ships in 3-6 days

0

21

Toro 909546

SCREW-SET

$2.49

$

Usually ships in 3-6 days

0

22

Toro 117447

CHAIN

$

$

Not available

23

Toro 117517

BRACKET-TIGHTENER R

$

$

Not available

24

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 20+

0

25

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

26

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

27

Toro 108959

Chain Tightener
(Superseded to 95-7699)

$115.99

$

In Stock, only 3 left!

0

28

Toro 908023

Bolt 5/16-18 x 2
(Superseded to 322-10)

$0.99

$

In Stock, Qty 10

0

29

Toro 117338

SPROCKET-15 T
(Superseded to 117338-03)

$168.99

$

Usually ships in 3-6 days

0

30

Toro 937221

KEY-HI PRO
(Superseded to 3257-17)

$5.49

$

In Stock, Qty 10

0

31

Toro 909533

Set Screw
(Superseded to 324-15)

$1.31

$

In Stock, only 2 left!

0

32

Toro 116938

GEAR-BOX L.H.

$

$

Not available

33

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 16

0

34

Toro 117558

Pulley-Gearbox
(Superseded to 92-5769)

$94.99

$

Usually ships in 3-6 days

0

35

Toro 937089

KEY-WOODRUFF

$1.99

$

In Stock, Qty 5

0

36

Toro 909540

Set Screw
(Superseded to 3242-2)

$1.99

$

In Stock, Qty 6

0

38

Toro 115118

"V" Pulley
(Superseded to 92-7099)

$69.99

$

In Stock, only 1 left!

0

39

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

40

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

41

Toro 106887

SPACER

$9.99

$

Usually ships in 3-6 days

0

42

Toro 117546

WLDMT-IDLER ARM R

$

$

Not available

43

Toro 7450

Spacer
(Superseded to 7450-01)

$13.99

$

Usually ships in 3-6 days

0

44

Toro 116859

PULLEY-FLAT IDLER

$79.99

$

In Stock, only 1 left!

0

45

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

46

Toro 117770

RUBBER WASHER

$

$

Not available

47

Toro 117544

BRACKET-PIVOT R

$

$

Not available

48

Toro 920013

WASHER
(Superseded to 3256-27)

$2.99

$

In Stock, only 2 left!

0

49

Toro 117545

SPRING

$

$

Not available

50

Toro 932965

Clevis Pin
(Superseded to 283-10)

$9.99

$

Usually ships in 3-6 days

0

51

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 20+

0

52

Toro 116332

V-BELT 64 .5EL

$51.99

$

Usually ships in 3-6 days

0
