06-44SC01 - Toro 44" Two Stage Snow Thrower Attachment (SN: 010000001 - 019999999) (1991) CHUTE ASSEMBLY Parts Diagram

44" Two Stage Snow Thrower Attachment

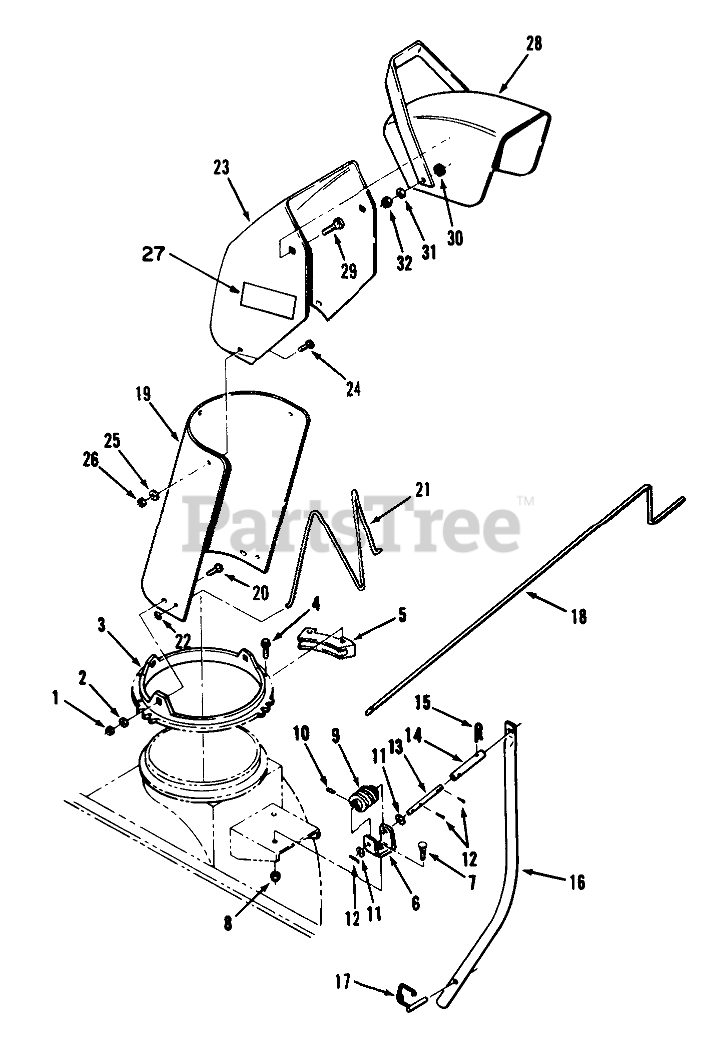

CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

3

Toro 25-5290

Screw
(Superseded to 25-5290-01)

$70.99

$

Usually ships in 3-6 days

0

4

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

5

Toro 25-5450

RETAINER-CHUTE

$36.99

$

In Stock, only 2 left!

0

6

Toro 49-6720

WORM BRKT B
(Superseded to 49-6720-03)

$24.99

$

Usually ships in 3-6 days

0

7

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 8-8600

GEAR-WORM, CHUTE

$134.99

$

Usually ships in 3-6 days

0

10

Toro 933152

Pin-Roll
(Superseded to 32121-50)

$3.49

$

In Stock, only 3 left!

0

11

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 20+

0

13

Toro 117529

ROD-LOWER CHUTE CONT

$62.99

$

Usually ships in 3-6 days

0

14

Toro 117538

COUPLING

$24.99

$

Usually ships in 3-6 days

0

15

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

16

Toro 119030

TUBE-CRANK SUPPOR R

$

$

Not available

17

Toro 111314

LOCKING PIN ASM

$24.99

$

In Stock, only 4 left!

0

18

Toro 51-2650

ROD-CHUTE CONTROL

$198.99

$

Usually ships in 3-6 days

0

19

Toro 26-1110

Chute-Extender
(Superseded to 26-1110-01)

$167.99

$

Usually ships in 3-6 days

0

20

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Toro 12-2040

WIRE-CHUTE

$

$

Not available

22

Toro 3290-326

NUT-PUSH

$4.99

$

Usually ships in 3-6 days

0

23

Toro 56-2600

Chute-Upper
(Superseded to 92-6335-01)

$189.99

$

Usually ships in 3-6 days

0

24

Toro 900036

CARRIAGE BOLT -4

$1.99

$

Usually ships in 3-6 days

0

25

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

26

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

27

Toro 111190

DECAL DANGER

$

$

Not available

28

Toro 11-9346

Deflector

$

$

Currently unavailable

29

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

30

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 10

0

31

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

32

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
