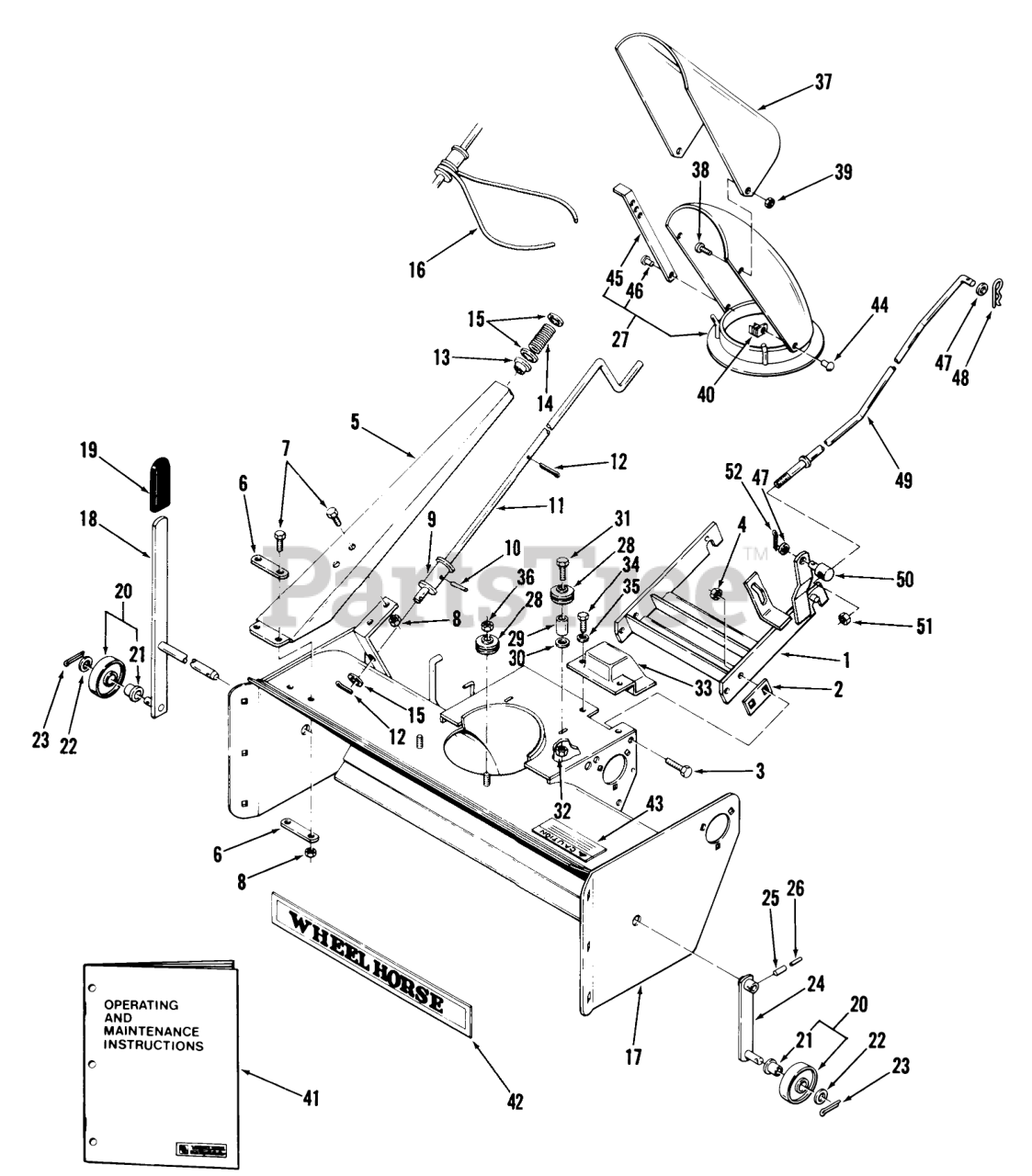

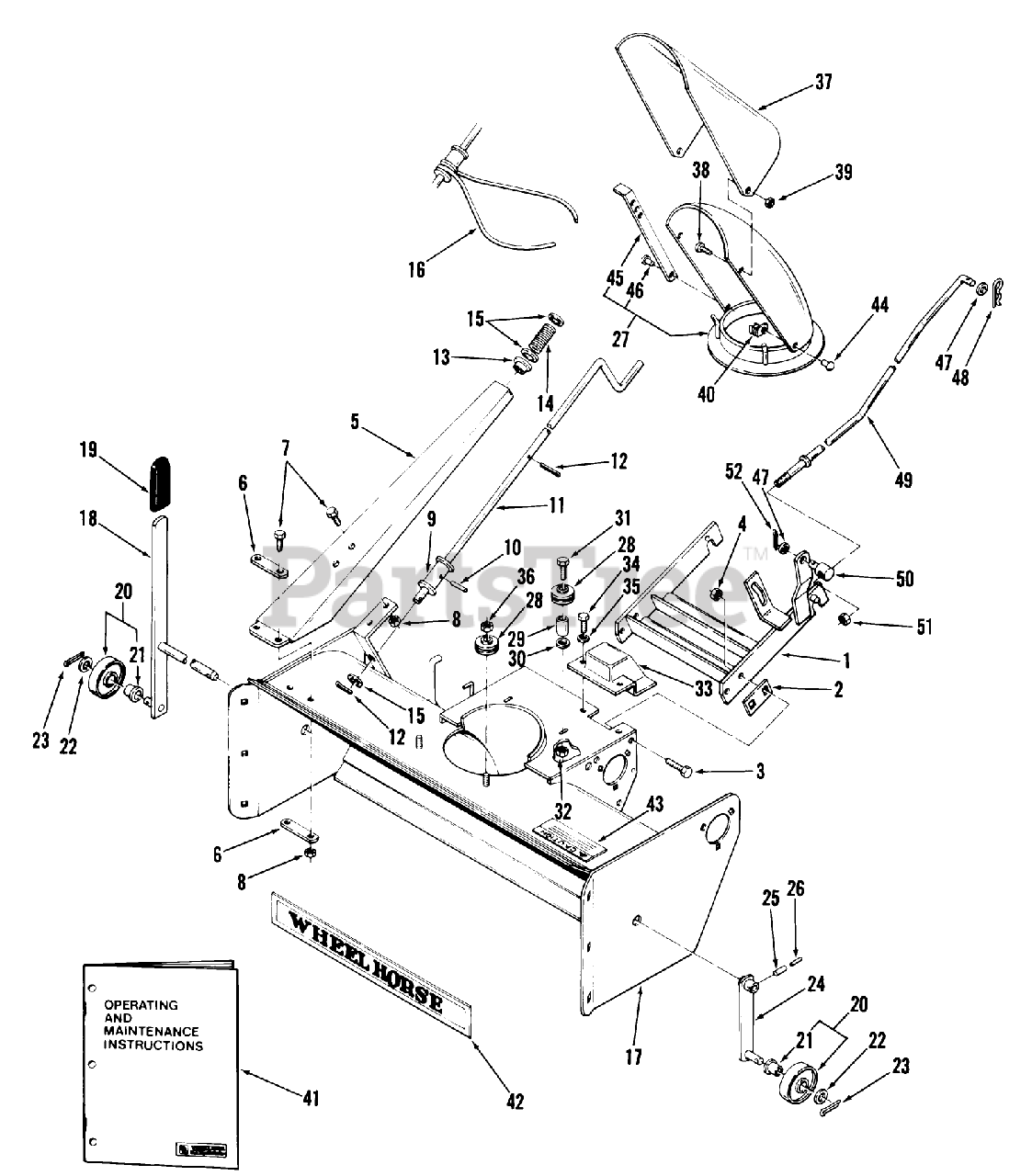

06-48ST01 - Toro 48" Snow Thrower Attachment (1981) SNOWTHOWER-37 IN. (94 CM) VEHICLE IDENTIFICATION NUMBER 06-37SX01 Parts Diagram

48" Snow Thrower Attachment

SNOWTHOWER-37 IN. (94 CM) VEHICLE IDENTIFICATION NUMBER 06-37SX01 Parts Diagram

  • Title

1

Toro 107682

Mounting Frame

$

$

Not available

2

Toro 107530

STRAP

Note: Indicates Part of Loose Parts Package 803265.

$

$

Not available

3

Toro 908035

Bolt
(Superseded to 323-7)

Note: Indicates Part of Loose Parts Package 803265.

$2.99

$

In Stock, Qty 20+

0

4

Toro 915663

NUT
(Superseded to 3296-39)

Note: Indicates Part of Loose Parts Package 803265.

$2.99

$

In Stock, Qty 20+

0

5

Toro 107524

Crank Support

$

$

Not available

6

Toro 7494

Bar-Reinforcing

Note: Indicates Part of Loose Parts Package 803265.

$

$

Not available

7

Toro 908032

Bolt
(Superseded to 323-4)

Note: Indicates Part of Loose Parts Package 803265.

$3.99

$

In Stock, Qty 19

0

8

Toro 915113

Nut
(Superseded to 32153-2)

Note: Indicates Part of Loose Parts Package 803265.

$0.99

$

In Stock, Qty 20+

0

9

Toro 105048

ASSY TUBE CRANK R

$79.99

$

Usually ships in 3-6 days

0

10

Toro 933215

ROLL PIN 1/4 X 1-1/4

$1.99

$

Usually ships in 3-6 days

0

11

Toro 107525

Crank
(Superseded to 108721)

$

$

Not available

12

Toro 932016

Pop Rivet
(Superseded to 3272-10)

Note: Indicates Part of Loose Parts Package 803265.

$1.49

$

In Stock, Qty 20+

0

13

Toro 5982

NYLINER BUSHING

Note: Indicates Part of Loose Parts Package 803265.

$

$

Not available

14

Toro 2354

SPRING-COMPRESSION

Note: Indicates Part of Loose Parts Package 803265.

$20.99

$

Usually ships in 3-6 days

0

15

Toro 920011

Washer
(Superseded to 3256-26)

Note: Indicates Part of Loose Parts Package 803265.

$0.99

$

In Stock, Qty 20+

0

16

Toro 104460

CABLE

Note: Indicates Part of Loose Parts Package 803265.

$22.99

$

In Stock, Qty 7

0

17

Toro 107526

X APPER ASSY

$

$

Not available

18

Toro 4477

ASSY AUGER SHAFT R

$

$

Not available

19

Toro 5359

GRIP

$9.49

$

Usually ships in 3-6 days

0

20

Toro 2173

Wheel Assembly (Includes Item 21)

$

$

Not available

21

Toro 1974

Bushing
(Superseded to 100284)

$11.99

$

Usually ships in 3-6 days

0

22

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

23

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 20+

0

24

Toro 5157

Wheel Support

$

$

Not available

25

Toro 933215

ROLL PIN 1/4 X 1-1/4

$1.99

$

Usually ships in 3-6 days

0

26

Toro 933267

PIN-SPIROL

$0.99

$

In Stock, Qty 12

0

27

Toro 5220

Shroud Assembly (Includes Item 45 & 46)

$

$

Not available

28

Toro 1973

Roller

$

$

Not available

29

Toro 2163

SPACER

$

$

Not available

30

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

31

Toro 908006

Bolt
(Superseded to 321-8)

$3.99

$

In Stock, Qty 20+

0

32

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

33

Toro 107547

COVER-BELT

Note: Indicates Part of Loose Parts Package 803265.

$

$

Not available

34

Toro 926671

Bolt
(Superseded to 9266714)

Note: Indicates Part of Loose Parts Package 803265.

$1.49

$

In Stock, Qty 16

0

35

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

Note: Indicates Part of Loose Parts Package 803265.

$0.99

$

In Stock, Qty 20+

0

36

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

37

Toro 2165

Deflector
(Superseded to 110978)

$

$

Not available

38

Toro 910836

MACH. SCREW

$

$

Not available

39

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

40

Toro 101447

CLAMP

$29.99

$

Usually ships in 3-6 days

0

41

Toro 810107R1

Operating and Maintenance Instructions

$

$

Currently unavailable

42

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

43

Toro 104463

Decal-Caution

$

$

Not available

44

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

45

Toro 2078

ARM R

$

$

Not available

46

Toro 923005

RIVET

$

$

Not available

47

Toro 920011

Washer
(Superseded to 3256-26)

Note: Indicates Part of Loose Parts Package 803265.

$0.99

$

In Stock, Qty 20+

0

48

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

Note: Indicates Part of Loose Parts Package 803265.

$1.99

$

In Stock, Qty 20+

0

49

Toro 107548

ROD

$

$

Not available

50

Toro 102213

TRUNION

Note: Indicates Part of Loose Parts Package 803265.

$68.99

$

Usually ships in 3-6 days

0

51

Toro 915665

Nut
(Superseded to 3296-23)

Note: Indicates Part of Loose Parts Package 803265.

$1.49

$

In Stock, Qty 20+

0

52

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

Note: Indicates Part of Loose Parts Package 803265.

$0.99

$

Usually ships in 3-6 days

0
