06-997779 (186-407-372) - Hechinger Walk-Behind Mower, Electric (1996) Motor Assembly Parts Diagram

Walk-Behind Mower, Electric

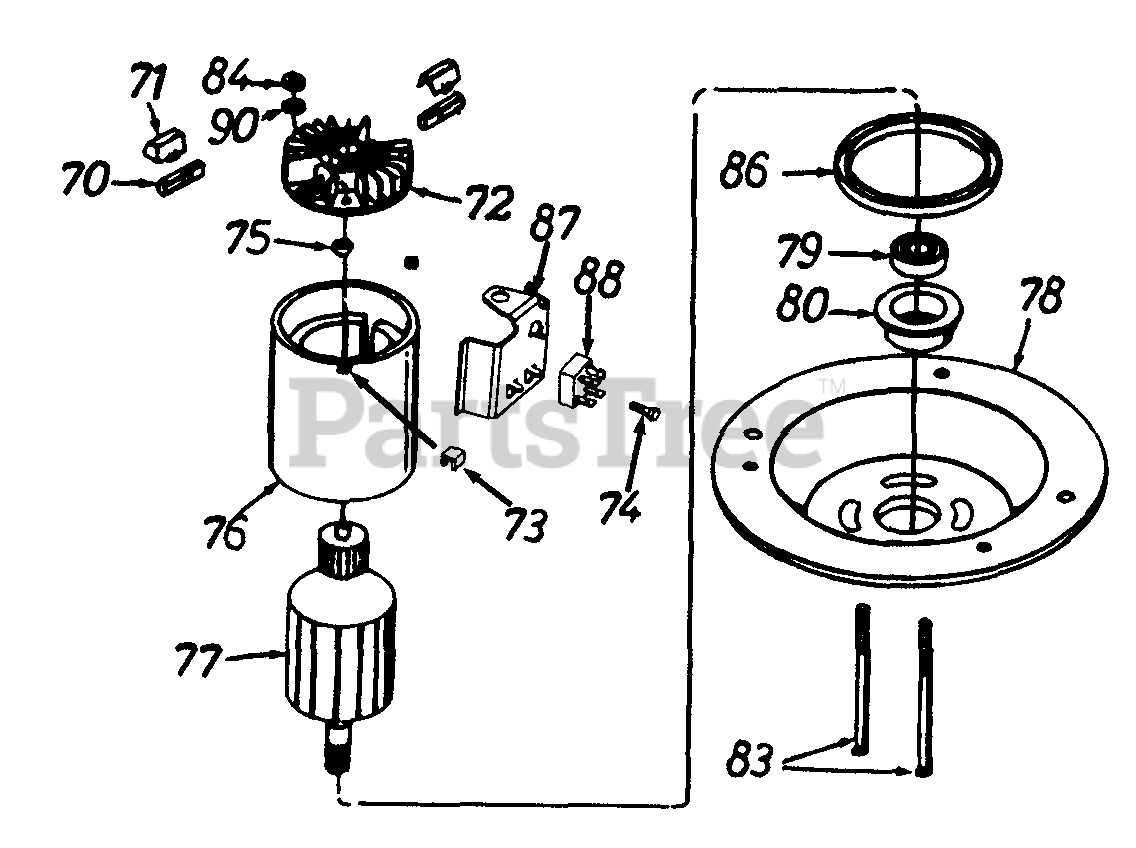

Motor Assembly Parts Diagram

  • Title

70

MTD 624-0031

Brush and Liner Ass'y.

$

$

Not available

71

MTD 724-0200

Brush Holder Cap
(Superseded to 924-0200)

$

$

Not available

72

MTD 624-0070

End Shield Ass'y. w/Plug

Note: (Incl. Ref. 70 & 71)

$

$

Currently unavailable

73

MTD 721-0305

Insulator Wire (Output)

$

$

Currently unavailable

74

MTD 710-0436

Hex Tap Scr. #10-16 x .62" Lg.
(Superseded to 710-0651)

$3.49

$

Usually ships in 3-6 days

0

75

MTD 741-0875

Needle Bearing

$

$

Not available

76

UNKNOWN

$

$

Not available

77

MTD 624-0029

Armature Ass'y.

$

$

Currently unavailable

78

MTD 724-0194

Motor End Plate

$

$

Currently unavailable

79

MTD 741-0124

Ball Bearing
(Superseded to 941-0600)

$23.99

$

In Stock, Qty 20+

0

80

MTD 748-0348

Bearing Adapter

$

$

Not available

83

MTD 710-1176

Carriage Bolt

$

$

Not available

84

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

86

MTD 721-0306

Motor Hsg. Insulator

$

$

Not available

87

MTD 782-5016

Brkt.-RectiFler/Heat Sink

$

$

Not available

88

MTD 725-1631

RectiFler

$

$

Not available

90

MTD 736-3090

Fl-Wash.26" I.D. x .72" O.D.

$6.49

$

In Stock, only 2 left!

0
