0602-1 - Generac CP 2,000 PSI Pressure Washer (1996-06) Engine Trim Specifications Parts Diagram

CP 2,000 PSI Pressure Washer

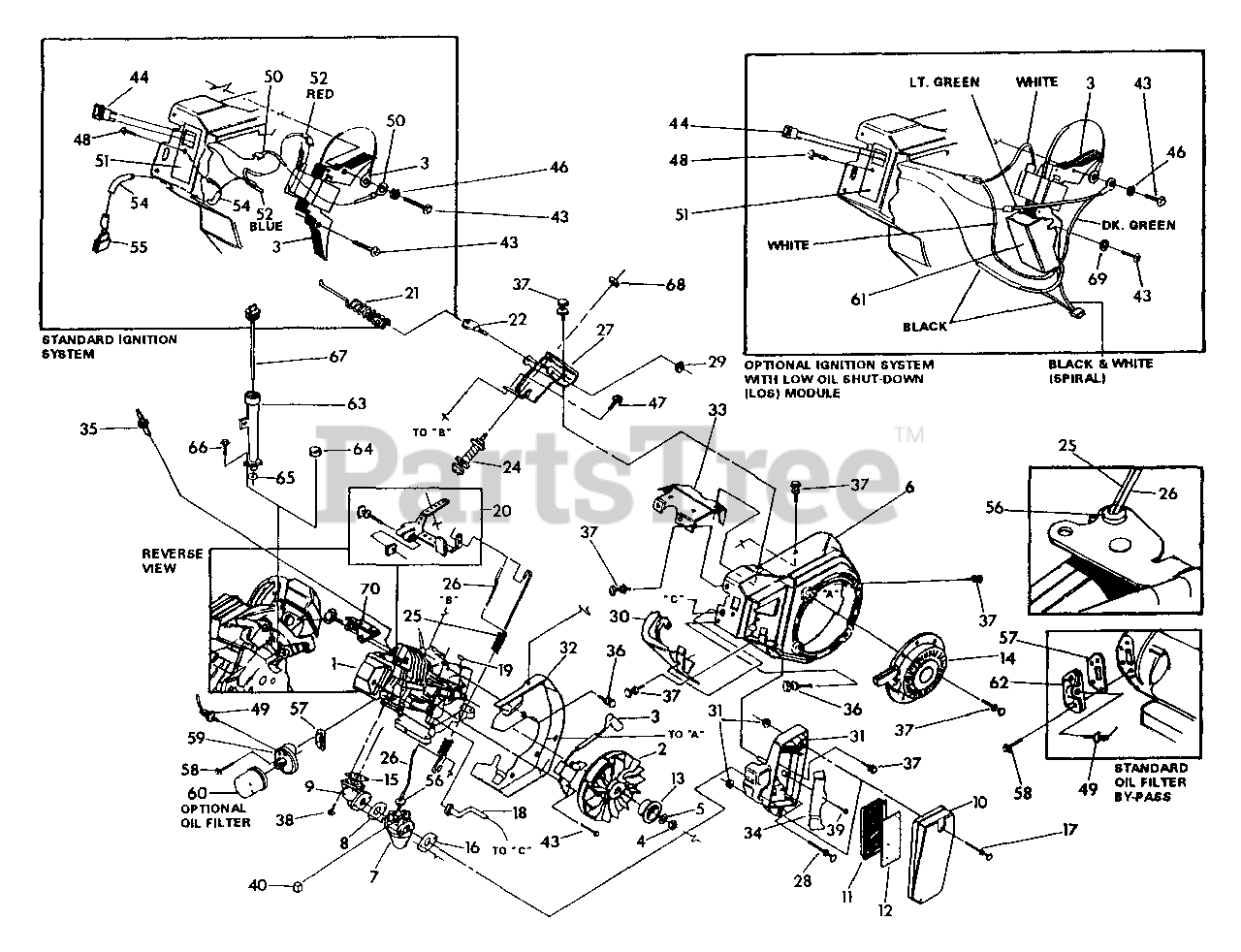

Engine Trim Specifications Parts Diagram

  • Title

1

Briggs & Stratton 90508

GN220 Long Block Taper Shaft

$1.49

$

Usually ships in 2-12 days

0

1

Briggs & Stratton 90507

GN191 Long Block Taper Shaft

$

$

Not available

1

90991H

GN191 Long Blk Straight Shaft

$

$

Not available

1

Briggs & Stratton 90995H

GN220 Long Blk Straight Shaft

$

$

Currently unavailable

1

Briggs & Stratton 92567

GN220 Long Blk Water Pump

$

$

Currently unavailable

2

Briggs & Stratton 77182E

Flywhl Assm. 28 Deg. Timing GN220

$

$

Currently unavailable

2

Briggs & Stratton 77182T

Flywhl Assm. 34 Deg. Timing GN191

$

$

Currently unavailable

3

Briggs & Stratton 81675

Ignition Coil Assembly

$

$

Currently unavailable

4

Briggs & Stratton 81810

M16 x 1.5 Hex Nut

$

$

Currently unavailable

5

Briggs & Stratton 83312

Conical Washer

$

$

Currently unavailable

6

Briggs & Stratton 90695A

Blower Housing

$

$

Currently unavailable

7

Briggs & Stratton 95948

Carb. - GN191HS-50Hz, GN220HS-50Hz Press. Washers

$

$

Currently unavailable

7

Briggs & Stratton 98469

Carb. - GN191HS-60Hz

$

$

Currently unavailable

7

Briggs & Stratton 97747

Carb. - GN220HS-60Hz

$

$

Not available

8

Briggs & Stratton 78631

Carb./Manifold Gasket

$

$

Not available

9

Briggs & Stratton 90948

Intake HS Manifold

$

$

Not available

10

Briggs & Stratton 78608

Air Cleaner Cover

$

$

Currently unavailable

10

Briggs & Stratton 78608A

Opt. Air Cleaner Cover (Plain)

$

$

Currently unavailable

11

Briggs & Stratton 78601

Air Filter Element
(Superseded to 78601GS)

$13.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 78602

Air Filter Pre-Cleaner

$

$

Not available

13

Briggs & Stratton 83015

Recoil Cup

$

$

Not available

14

Briggs & Stratton 95268

Recoil Assembly

$

$

Currently unavailable

15

Briggs & Stratton 90051

Manifold Head Gasket

$

$

Not available

16

Briggs & Stratton 91846

Carb./Air Cleaner Gasket

$

$

Not available

17

Briggs & Stratton 78609

Air Cleaner Cover Bolt

$

$

Not available

18

Briggs & Stratton 90947

Breather Hose
(Superseded to 7090947YP)

$5.99

$

In Stock, Qty 12

0

19

Briggs & Stratton 82774

4 x 19 Woodruff Key

$

$

Not available

20

Briggs & Stratton 86962

Governor Lever Assembly

$

$

Currently unavailable

21

Briggs & Stratton 78604

60Hz Governor Spring

$

$

Currently unavailable

21

Briggs & Stratton 86643

50Hz Governor Spring

$

$

Currently unavailable

22

Briggs & Stratton 83502

Governor Adjusting Screw

$

$

Not available

24

Briggs & Stratton 83782

Idle Control Coil

$

$

Currently unavailable

25

Briggs & Stratton 86037

Anti-Lash Extension Spring

$

$

Currently unavailable

26

Briggs & Stratton 86384

Governor Rod

$

$

Currently unavailable

27

Briggs & Stratton 83781

Governor Adjust Bracket

$

$

Currently unavailable

28

Briggs & Stratton 78643

Carb. Mounting Bolt

$

$

Not available

29

Briggs & Stratton 83503

M5-0.8 Metal Lock Nut

$

$

Currently unavailable

30

Briggs & Stratton 89739

Lower Wrapper

$

$

Currently unavailable

31

Briggs & Stratton 78607

Air Cleaner Base (with nuts)

$

$

Not available

32

Briggs & Stratton 78651C

Blower Housing Back Plate

$

$

Currently unavailable

33

Briggs & Stratton 92984

Top Assembly Wrapper
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

34

Briggs & Stratton 80303

Breather Canal Cover

$

$

Not available

35

Briggs & Stratton 72347

Champion RC12YC Spark Plug
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 45756

M6-1 x 10 Taptite Bolt

$

$

Not available

37

Briggs & Stratton 66476

M6-1 x 12 H Hd. w/Lockwasher Screw
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 80316

M6-1 x 30 Flanged H Hd. w/Lockwshr Screw

$

$

Currently unavailable

39

Briggs & Stratton 59635

#8 x.37" Plastite Screw

$

$

Currently unavailable

40

Briggs & Stratton 83504

Choke Lever Knob

$

$

Not available

43

Briggs & Stratton 82981

M6-1 x 30 Taptite Bolt

$

$

Currently unavailable

44

Briggs & Stratton 78653

Shut-off Switch
(Superseded to 78653GS)

$4.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 83512

M8 x 15 Taptite Bolt
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 85272

LED Low Oil ind. Light Assm.

$

$

Currently unavailable

48

Briggs & Stratton 86753

LED Low Oil indicator Light Assm. (Used w/ Opt. LOS Module)

$

$

Currently unavailable

49

Briggs & Stratton 77667

4 psi Oil Pressure Switch

$

$

Not available

50

Briggs & Stratton 00285271

Ground Wire Assembly

$

$

Currently unavailable

51

Briggs & Stratton 84195

LO.S., 5 Eng. Decal

$

$

Currently unavailable

52

Briggs & Stratton 00185271

Wire Assembly Ignition

$

$

Currently unavailable

54

Briggs & Stratton 85620

#3 Sleeving BLk

$

$

Currently unavailable

55

Briggs & Stratton 84329

3 Pin Male Housing

$

$

Currently unavailable

56

Briggs & Stratton 85953

Carb. Wear Washer

$

$

Currently unavailable

57

Briggs & Stratton 91848

Oil Filter Pad Gasket
(Superseded to 7091848YP)

$14.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 92978

M6 x 1.0 x 20 Taptite

$

$

Currently unavailable

59

Briggs & Stratton 84982

Oil Filter Adaptor (MC Series)

$

$

Currently unavailable

60

Briggs & Stratton 70185

Oil Filter
(Superseded to 70185GS)

Note: (Optional)

$14.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 87221A

LOS Module
(Superseded to 87221AGS)

Note: (Optional)

$78.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 88758

By-Pass Adaptor

Note: (Optional)

$

$

Currently unavailable

63

Briggs & Stratton 91041

Oil Fill Tube

Note: (Optional)

$

$

Currently unavailable

64

Briggs & Stratton 94820

36/64 Expansion Plug

$

$

Currently unavailable

65

Briggs & Stratton 91230

Oil Fill Gasket
(Superseded to 7079831YP)

$3.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 90388

M6 x 12 Taptite
(Superseded to 7090388YP)

$3.49

$

In Stock, only 3 left!

0

67

Briggs & Stratton 91475

Oil Fill Dipstick

Note: (Optional)

$

$

Not available

68

Briggs & Stratton 66311

M8-1.25 Hex Jam Nut

$

$

Currently unavailable

69

Briggs & Stratton 49811

M6-12.5 O.D. Flat Washer
(Superseded to 49811GS)

$1.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 95213

Fuel Tank Bracket

Note: (Optional)

$

$

Currently unavailable
