0606-0 - Generac 12,000 PSI Pressure Washer Pressure Washer Parts Diagram

12,000 PSI Pressure Washer

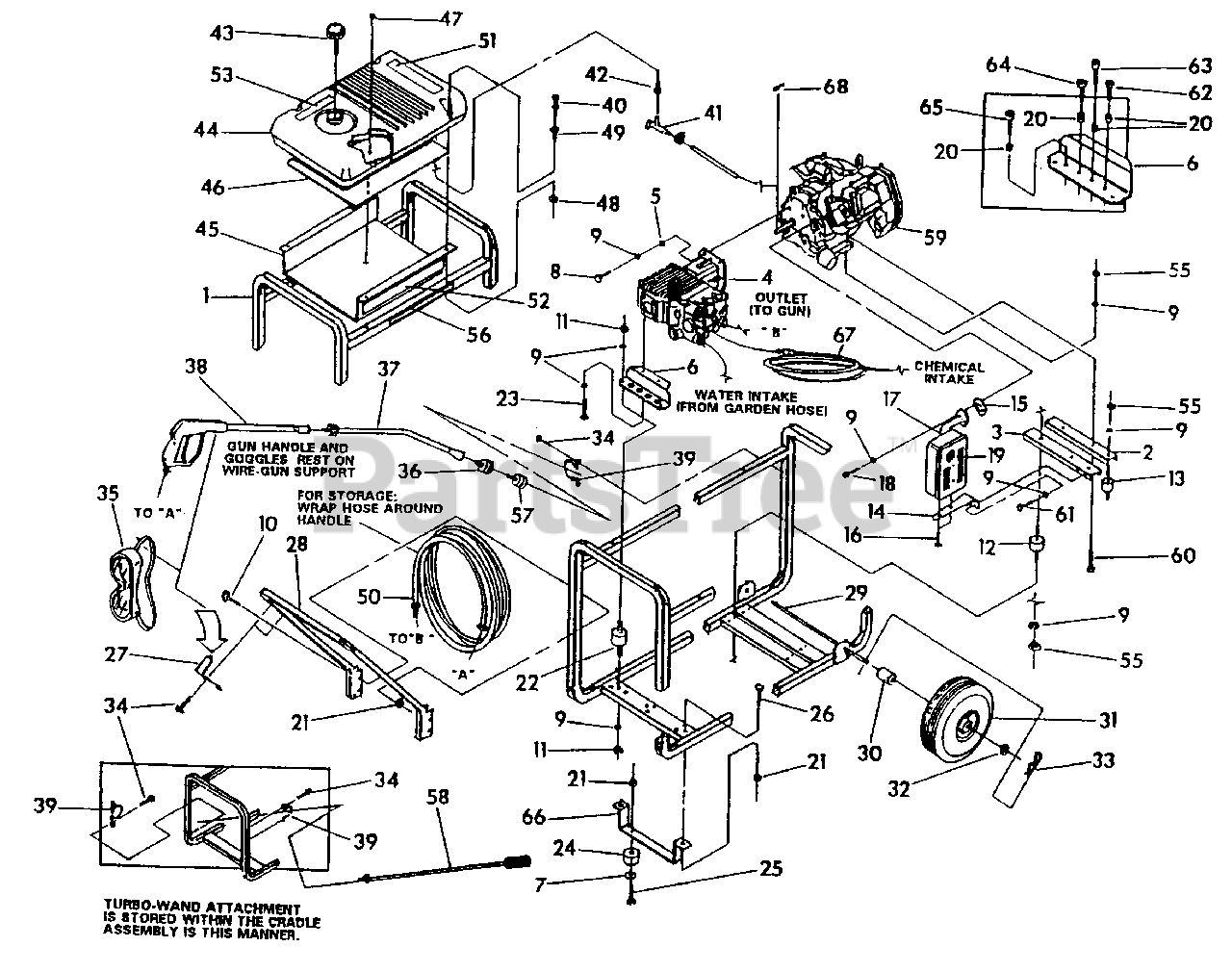

Pressure Washer Parts Diagram

  • Title

1

Briggs & Stratton 92412

Cradle-MC-12000

$

$

Currently unavailable

2

Briggs & Stratton 92531

Engine Support

$

$

Currently unavailable

3

Briggs & Stratton 92731

Engine & Muffler Support
(Superseded to N92731GS)

$24.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 92294

Pump-General 4 GPM at 3000 PSI

$

$

Currently unavailable

5

Briggs & Stratton 50190

M8 Flat Washer
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 92485

Pump Support Bracket
(Superseded to 92485GS)

$17.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 22145

M8 Flat Washer

$

$

Not available

8

Briggs & Stratton 22288

5/16"-24 x 1-1/4" Capscrew

$

$

Currently unavailable

9

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 39287

M8-1.25 x 45mm Capscrew
(Superseded to 39287GS)

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 45771

M8-1.25 Hex Nut

$

$

Not available

12

Briggs & Stratton 92609

Vibration Mount
(Superseded to 92609GS)

$38.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 82857

Vibration Mount
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 92532

Muffler Bracket
(Superseded to 92532GS)

$22.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 90239

Exhaust Gasket
(Superseded to 90239GS)

$4.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66476

M6-1.0 x 12mm Capscrew
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 91153

Muffler
(Superseded to A7433GS)

$

$

Not available

18

Briggs & Stratton 40976

M8-1.25 x 20mm Capscrew

$

$

Not available

19

Briggs & Stratton 83083

Spark Arrestor Screen
(Superseded to 83083GS)

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton 30809

Nozzle Grommet
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 52858

M8-1.25 Flange Lock Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

22

Briggs & Stratton 85652

Shock Mount
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 17

0

23

Briggs & Stratton 42907

M8-1.25 x 16mm Capscrew
(Superseded to 42907GS)

$4.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 27007

Shock Mount
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 8

0

25

Briggs & Stratton 42909

M8-1.25 x 30mm Capscrew
(Superseded to 42909GS)

$3.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 39253

M8-1.25 x 20mm Capscrew
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 89636

Gun Support Wire

$

$

Not available

28

Briggs & Stratton 93393C

Guide Handle
(Superseded to 93393CGS)

$119.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 93693A

Zinc Axle
(Superseded to 191267AGS)

$89.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 89635

Wheel Spacer

$

$

Currently unavailable

31

Briggs & Stratton 89742

Wheel

$

$

Not available

32

Briggs & Stratton 22247

5/8" Flat Washer
(Superseded to 5022247)

$45.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 87005

Quick Release Pin
(Superseded to 87005GS)

$4.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 86292

#10-16 Self-drilling Screw
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 87815

Safety Goggles
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 90199

Quick Disconnect Adaptor

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 89641

Wand

$

$

Not available

38

Briggs & Stratton 89633

Spray Gun
(Superseded to 89633GS)

$223.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 87985

Rear Wand Holder
(Superseded to 87985GS)

$9.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 78831B

M6-1.0 x 60mm Capscrew (Black)
(Superseded to 78831BGS)

$

$

Not available

41

Briggs & Stratton 80270

Tank Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 78299

Plastic Tank Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 94834

Fuel Cap
(Superseded to 691677)

$3.99

$

In Stock, Qty 5

0

44

Briggs & Stratton 92035

Fuel Tank

$

$

Not available

45

Briggs & Stratton 92039

Heat Shield

$

$

Currently unavailable

46

Briggs & Stratton 92665

#2-1/4" thick Insulation
(Superseded to 92665GS)

$16.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 85000

Insulation Clip
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 77395

M6 Flange Lock Nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 83465

Tank Grommet
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 89634

3/8" I.D. Hose

Note: (50 ft. long)

$

$

Currently unavailable

51

Briggs & Stratton 92629

Decal-Danger

$

$

Currently unavailable

52

Briggs & Stratton 99139

Decal-Industrical 12000
(Superseded to 99139GS)

$8.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 94077

Decal-Start Instructions

$

$

Currently unavailable

55

Briggs & Stratton 25244

5/16"-18 Hex Nut
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 93221

Decal-Constr. Contractor

$

$

Not available

57

Briggs & Stratton 90200

Nozzle-Chemical Injection 2540 (Black)

$3.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 89493

Turbo Wand

$

$

Currently unavailable

59

Briggs & Stratton ENG94415

13 HP Engine

$

$

Currently unavailable

60

Briggs & Stratton 22531

5/16"-18 x 1-3/4" Capscrew
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 22142

5/16"-18 x 3/4" Capscrew
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 90200A

Quick Connect Nozzle 00045 (Red)
(Superseded to 195983AGS)

$10.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 90200B

Quick Connect Nozzle 15045 (Yellow)
(Superseded to 195983BGS)

$11.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 90200C

Quick Connect Nozzle 25045 (Green)
(Superseded to 195983CGS)

$11.99

$

In Stock, only 1 left!

0

65

Briggs & Stratton 90200D

Quick Connect Nozzle 40045 (White)
(Superseded to 191903DGS)

$18.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 92483

Unit Support Bracket
(Superseded to 92483GS)

$48.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 92550

Injection Tube
(Superseded to 92550GS)

Note: (Replacement)

$67.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 63281

Key-1/4" sq. x 2" long
(Superseded to 703890)

$4.99

$

In Stock, Qty 8

0
