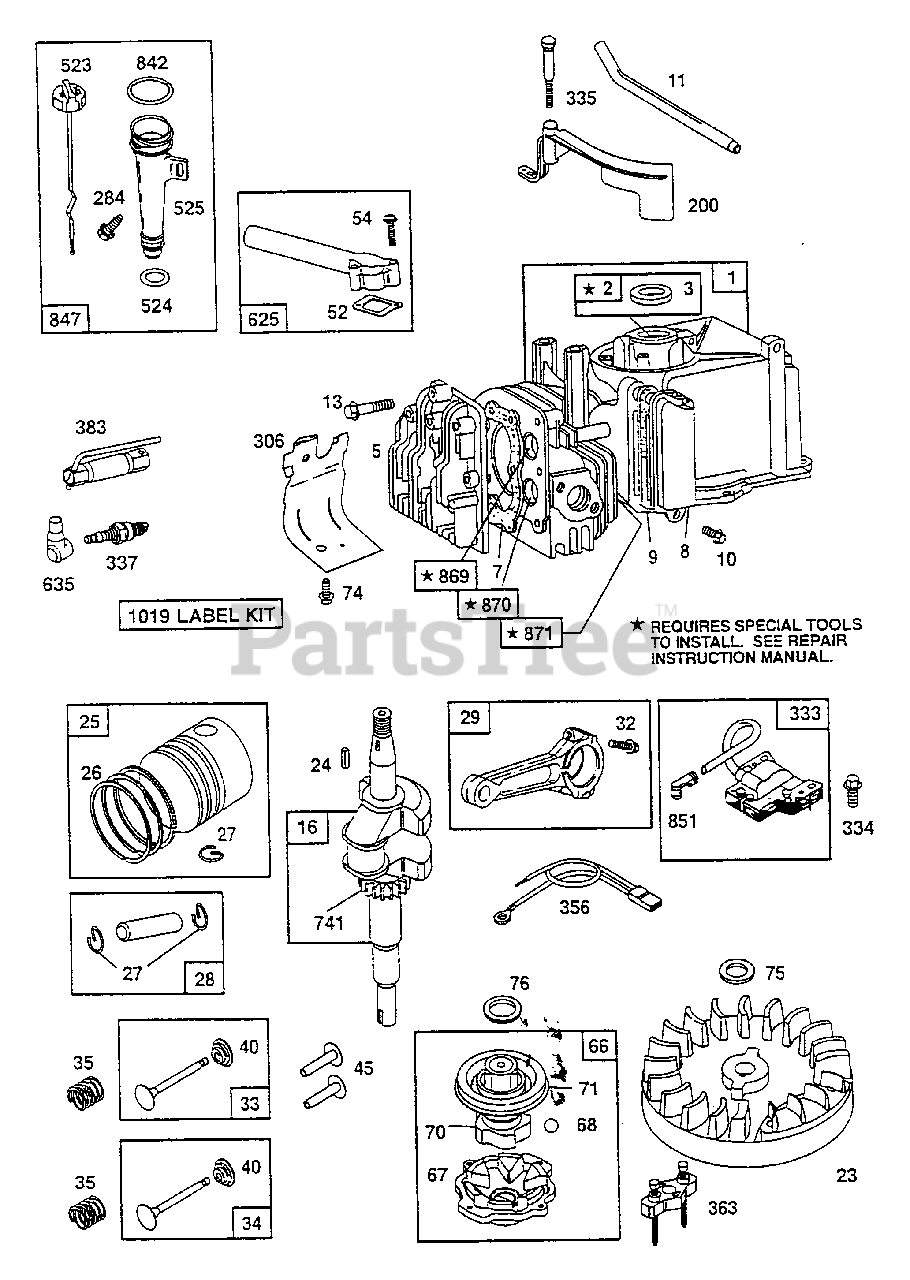

0616-0 - Craftsman 1,500 PSI Pressure Washer Engine Breakdown (Part 1) Parts Diagram

1,500 PSI Pressure Washer

Engine Breakdown (Part 1) Parts Diagram

  • Title

1

Briggs & Stratton 399164

Cylinder Assembly
(Superseded to 699653)

$153.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, Qty 6

0

3

Briggs & Stratton 299819

Oil Seal
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 214227

Cylinder Head

$

$

Currently unavailable

7

Briggs & Stratton 272694

Cylinder Head Gasket
(Superseded to 698717)

$5.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 298383

Breather Assembly
(Superseded to 791781)

$14.99

$

In Stock, only 4 left!

0

9

Briggs & Stratton 272602

Breather Gasket
(Superseded to 695890)

$4.49

$

In Stock, Qty 13

0

10

Briggs & Stratton 94621

Hex Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 231774

Breather Tube
(Superseded to 691245)

$8.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 93111

Hex Screw
(Superseded to 592840)

$43.99

$

In Stock, only 4 left!

0

16

Briggs & Stratton 496838

Crankshaft

$142.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 496278

Flywheel
(Superseded to 795695)

$78.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Flywheel Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 298904

Piston Assembly (Standard)
(Superseded to 793214)

$

$

Not available

25

Briggs & Stratton 298905

Piston Assembly (.010" O.S.)

$50.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 298906

Piston Assembly (.020" O.S.)

$95.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 298907

Piston Assembly (.030" O.S.)

$

$

Not available

26

Briggs & Stratton 298982

Ring Set (Standard)

$48.99

$

In Stock, Qty 11

0

26

Briggs & Stratton 299742

Ring Set (Std. Chrome)
(Superseded to 298982)

$48.99

$

In Stock, Qty 11

0

26

Briggs & Stratton 298983

Ring Set (.010" O.S.)

$22.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 298984

Ring Set (.020" O.S.)

$35.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 298985

Ring Set (.030" O.S.)

$23.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Piston Pin Lock
(Superseded to 691588)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298909

Piston Pin (Standard)

$8.99

$

In Stock, only 4 left!

0

28

Briggs & Stratton 298908

Piston Pin (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 496792

Connecting Rod
(Superseded to 699654)

$61.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94699

Hex Screw
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 296676

Exhaust Valve

$23.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 296677

Intake Valve

$24.99

$

In Stock, only 4 left!

0

35

Briggs & Stratton 260552

Valve Spring
(Superseded to 690520)

$5.49

$

In Stock, Qty 9

0

40

Briggs & Stratton 93312

Valve Retainer
(Superseded to 692194)

$5.99

$

In Stock, Qty 18

0

45

Briggs & Stratton 230173

Valve Tappet
(Superseded to 691762)

$9.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270345

Intake Gasket
(Superseded to 270345S)

$4.49

$

In Stock, Qty 9

0

54

Briggs & Stratton 93485

Hex Screw
(Superseded to 691111)

$3.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 399671

Starter Clutch

$34.99

$

In Stock, Qty 15

0

67

Briggs & Stratton 394897

Clutch Housing

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Clutch Ball
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298799

Clutch Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

Retainer Washer
(Superseded to 691359)

$9.99

$

In Stock, only 1 left!

0

74

Briggs & Stratton 93758

Hex Screw
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 223047

Washer
(Superseded to 691736)

$5.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 68238

Seal
(Superseded to 691359)

$9.99

$

In Stock, only 1 left!

0

200

Briggs & Stratton 281024

Governor Blade
(Superseded to 691912)

$13.99

$

In Stock, only 2 left!

0

284

Briggs & Stratton 94073

Hex Screw
(Superseded to 691002)

$8.49

$

In Stock, only 1 left!

0

306

Briggs & Stratton 221805

Cylinder Shield
(Superseded to 690400)

$6.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 398593

Magneto Armature
(Superseded to 591420)

$53.99

$

In Stock, Qty 12

0

334

Briggs & Stratton 94731

Hex Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93435

Shoulder Screw
(Superseded to 691107)

$3.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398808

Stop Wire

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Flywheel Puller

$23.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Spark Plug Wrench
(Superseded to 89838S)

$6.49

$

In Stock, Qty 5

0

523

Briggs & Stratton 497968

Oil Fill Cap
(Superseded to 692040)

$14.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 271485

Oil Seal
(Superseded to 691876)

$5.49

$

In Stock, only 1 left!

0

525

Briggs & Stratton 280504

Oil Fill Tube
(Superseded to 691320)

$13.99

$

Usually ships in 2-12 days

0

625

Briggs & Stratton 298775

Intake Manifold
(Superseded to 693446)

$14.99

$

In Stock, only 1 left!

0

635

Briggs & Stratton 66538

Spark Plug Boot
(Superseded to 66538S)

$3.99

$

In Stock, Qty 16

0

741

Briggs & Stratton 261533

Timing Gear
(Superseded to 691805)

$15.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

Cap Seal
(Superseded to 691870)

$4.49

$

In Stock, only 1 left!

0

847

Briggs & Stratton 497969

Oil Fill Tube
(Superseded to 691440)

$25.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Cable Terminal
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

869

Briggs & Stratton 211172

intake Valve Seat
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

Exhaust Valve Seat
(Superseded to 691702)

$8.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231348

Exhaust Valve Guide (Bushing)

$31.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Intake Valve Guide (Bushing)

$14.99

$

In Stock, only 3 left!

0

1019

Briggs & Stratton 497624

Label Kit

$34.99

$

Usually ships in 2-12 days

0
