0616-0 - Craftsman 1,500 PSI Pressure Washer Engine Breakdown (Part 3) Parts Diagram

1,500 PSI Pressure Washer

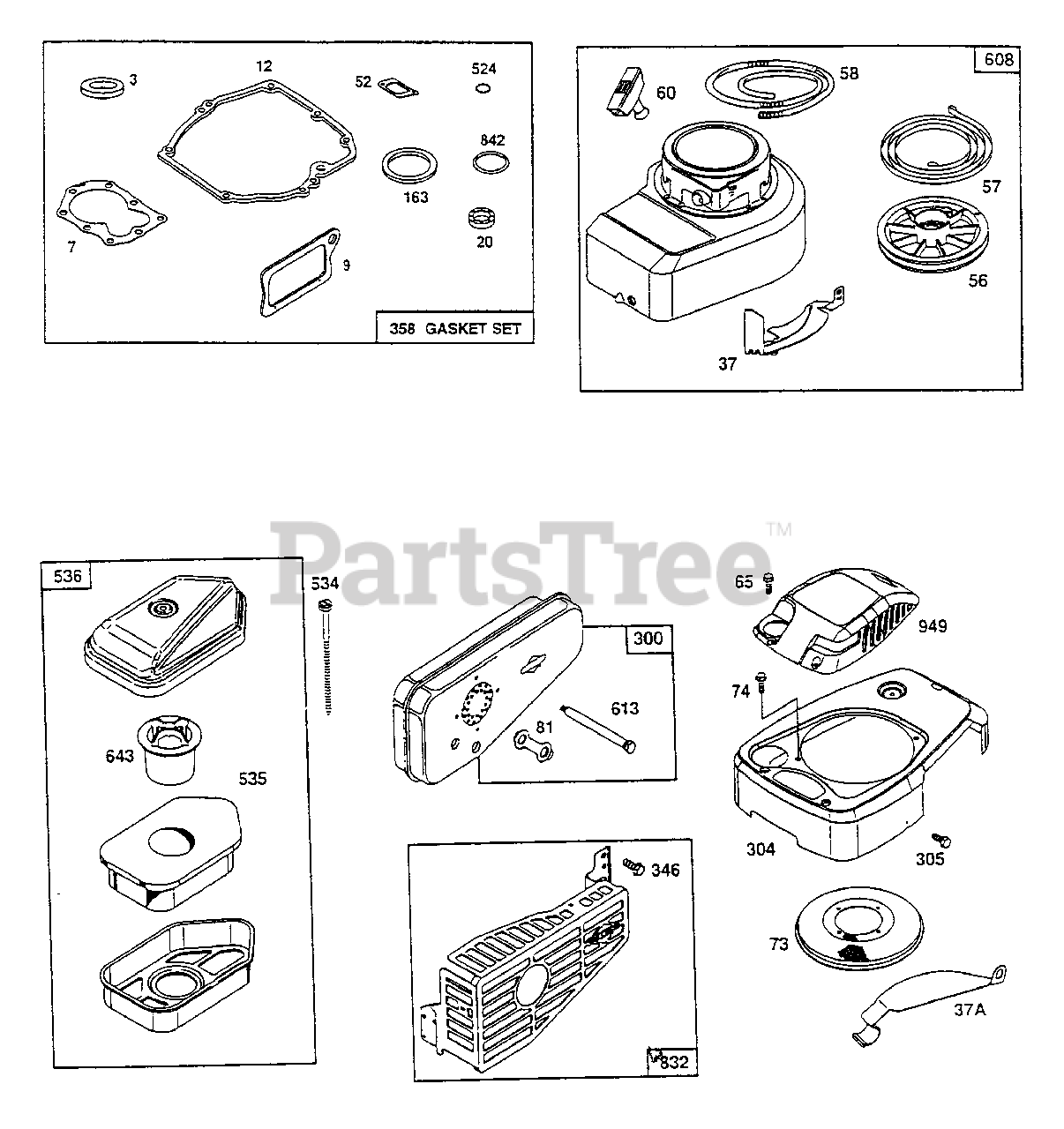

Engine Breakdown (Part 3) Parts Diagram

  • Title
3

Briggs & Stratton 299819

Oil Seal
(Superseded to 299819S)

$5.49

$

In Stock, only 3 left!

0

7

Briggs & Stratton 272694

Cylinder Head Gasket
(Superseded to 698717)

$5.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272602

Breather Gasket
(Superseded to 695890)

$4.49

$

In Stock, Qty 6

0

12

Briggs & Stratton 270833

Crankcase Gasket (.015" Thick, Standard)
(Superseded to 692218)

$

$

Not available

12

Briggs & Stratton 270895

Crankcase Gasket (.005" Thick)

$9.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 270896

Crankcase Gasket (.009" Thick)

$5.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391483

Oil Seal
(Superseded to 391483S)

$5.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 225013

Flywheel Gaurd
(Superseded to 691209)

$10.99

$

Usually ships in 2-12 days

0

37A

Briggs & Stratton 224819

Flywheel Gaurd
(Superseded to 690482)

$10.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270345

Intake Gasket
(Superseded to 270345S)

$4.49

$

In Stock, Qty 8

0

56

Briggs & Stratton 281336

Starter Pulley
(Superseded to 281336S)

$14.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 490179

Rewind Starter Spring

$14.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 280406

Starter Rope
(Superseded to 280406S)

Note: (Cut to Required Length)

$8.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 393152

Starter Rope Grip

$4.99

$

In Stock, only 2 left!

0

65

Briggs & Stratton 94579

Hex Screw
(Superseded to 692779)

$3.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 221661

Rotating Screen
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93758

Hex Screw
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 223256

Muffler Screw Lock
(Superseded to 691179)

$5.99

$

In Stock, only 1 left!

0

163

Briggs & Stratton 271139

Air Cleaner Gasket
(Superseded to 271139S)

$3.99

$

In Stock, Qty 20+

0

300

Briggs & Stratton 394644

Exhaust Muffler
(Superseded to 692307)

$36.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 497281

Blower Housing
(Superseded to 793972)

$55.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94153

Hex Screw
(Superseded to 692198)

$5.99

$

In Stock, only 2 left!

0

346

Briggs & Stratton 94602

Hex Screw
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

358

Briggs & Stratton 298989

Gasket Set
(Superseded to 590777)

$

$

Not available

524

Briggs & Stratton 271485

Oil Seal
(Superseded to 691876)

$5.49

$

In Stock, Qty 10

0

534

Briggs & Stratton 93865

Slotted Screw
(Superseded to 691417)

$5.99

$

In Stock, only 4 left!

0

535

Briggs & Stratton 272235

Air Filter
(Superseded to 272235S)

$5.99

$

In Stock, Qty 10

0

536

Briggs & Stratton 497628

Air Cleaner
(Superseded to 698472)

$

$

Not available

608

Briggs & Stratton 497815

Rewind Starter (5 O'clock position)
(Superseded to 499926)

$98.99

$

Usually ships in 2-12 days

0

613

Briggs & Stratton 93935

Hex Screw
(Superseded to 691413)

$5.99

$

In Stock, only 2 left!

0

643

Briggs & Stratton 280972

Air Filter Retainer
(Superseded to 691911)

$9.99

$

Usually ships in 2-12 days

0

832

Briggs & Stratton 494896

Muffler Gaurd
(Superseded to 699299)

$45.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

Cap Seal
(Superseded to 691870)

$4.49

$

In Stock, only 1 left!

0

842

Briggs & Stratton 63709

Intake Valve Guide (Bushing)

$14.99

$

Usually ships in 2-12 days

0

949

Briggs & Stratton 281476

Finger Guard
(Superseded to 691932)

$22.99

$

Usually ships in 2-12 days

0
