0616-0 - Craftsman 1,500 PSI Pressure Washer Repair Parts Drawing No. 98873 Parts Diagram

1,500 PSI Pressure Washer

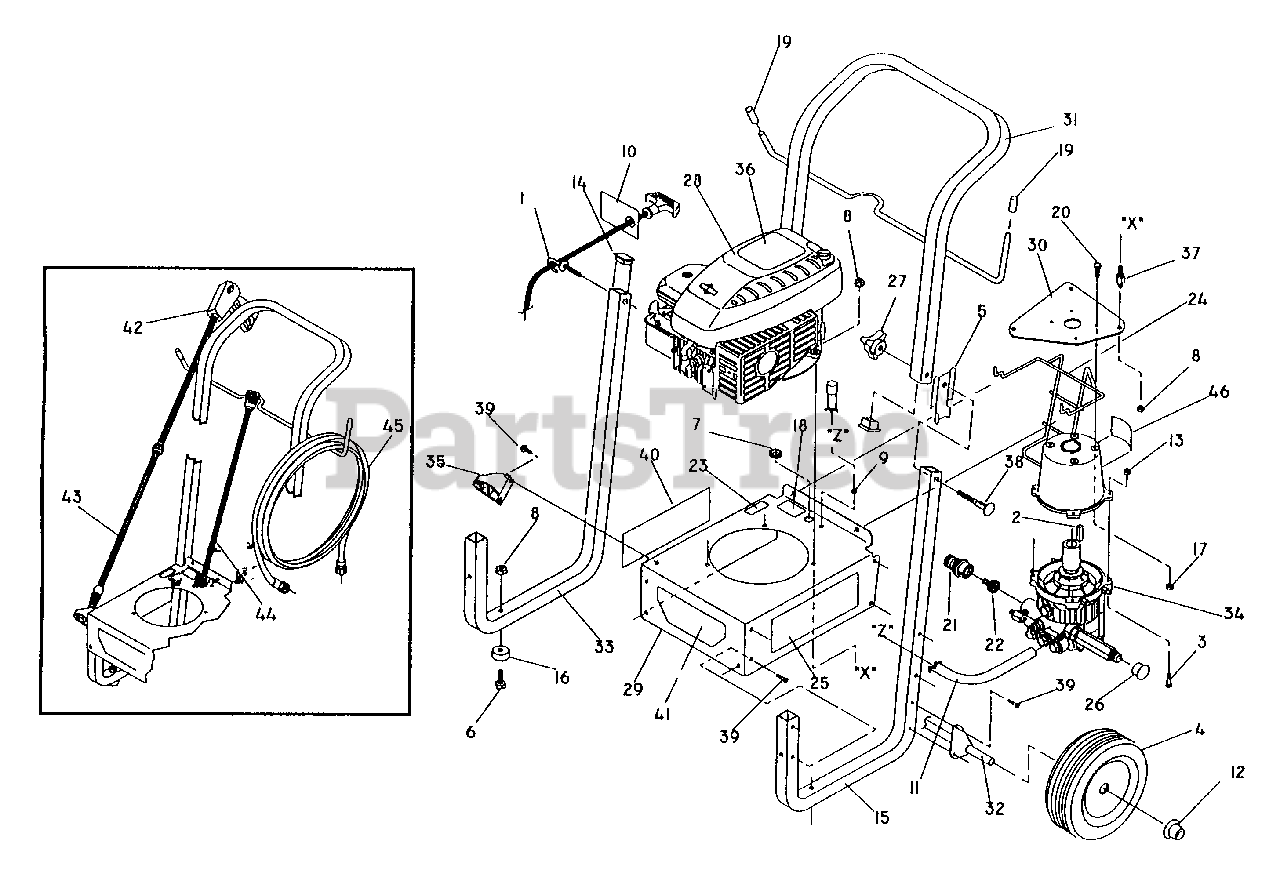

Repair Parts Drawing No. 98873 Parts Diagram

  • Title

1

Briggs & Stratton 97998

Square neck eyebolt
(Superseded to 97998GS)

$4.49

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 23139B

3/16" x 1-1/2" Square Key
(Superseded to 23139BGS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 38750

M6-1.0 x 30mm Hex Head Capscrew
(Superseded to 38750GS)

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 97876

Wheel
(Superseded to 97876GS)

$15.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 97082

Bracket Clip
(Superseded to 97082GS)

$5.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 39414

M8-1.00 x 35mm Hex Head Capscrew
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 92235

Turbo Grommet
(Superseded to 199553GS)

$4.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 52858

M8-1.25mm Nut Locking
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 30809

1/8"-11/16" Grommet
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 70453

Yellow Tag Warning Oil
(Superseded to 70453GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 96168

Chemical Hose Injection Assembly
(Superseded to 96168GS)

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 75402

1/2" Pushnut
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

13

Briggs & Stratton 77395

M6 Flange Lock Nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 81895

3/4" Square Cap Plug
(Superseded to 81895GS)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 97758

Left Hand Vertical Shaft Tube
(Superseded to 97758GS)

$36.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 87841

Vibration Mount
(Superseded to 87841GS)

$3.99

$

In Stock, only 3 left!

0

17

Briggs & Stratton 49820

M8-1.25mm Nylock Nut

$

$

Not available

18

Briggs & Stratton 91373

Sears Data Plate

$

$

Currently unavailable

19

Briggs & Stratton 92528

Vinyl Cap

$

$

Currently unavailable

20

Briggs & Stratton 43107

M8-1.25 x 25mm Hex Head Capscrew
(Superseded to 43107GS)

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 96016

Pump Quick Disconnect
(Superseded to 7175187GS)

$17.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 96017

Male End Quick Disconnect
(Superseded to 96017GS)

$4.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 96307

1-800 No. Decal
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 97762

Chemical Jug Hanger

$

$

Not available

25

Briggs & Stratton 96405

Danger Decal

$

$

Not available

26

Briggs & Stratton 97100

H.P. Adaptor Cap
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 97178

Handle Knob
(Superseded to 97178GS)

$8.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 97730

Briggs & Stratton Engine

$

$

Currently unavailable

29

Briggs & Stratton 97738

Base

$

$

Currently unavailable

30

Briggs & Stratton 97739

Mount Plate
(Superseded to 97739GS)

$18.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 97740

Handle

$

$

Not available

32

Briggs & Stratton 97741

Axle
(Superseded to 97741GS)

$21.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 97742

Right Hand Base Tube
(Superseded to 97742GS)

$36.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 97745

Lavor Wash 1500 Pump

$

$

Not available

35

Briggs & Stratton 97769

Gun Holder Cup
(Superseded to 97769GS)

$10.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 98164

Engine Decal

$

$

Currently unavailable

37

Briggs & Stratton 97891

Stud

$

$

Not available

38

Briggs & Stratton 97912

1/4-20 x 2.25mm Carriage Bolt
(Superseded to 97912GS)

$3.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 97996

1/4-20mm Screw
(Superseded to 97996GS)

$3.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 98021

Starting Instructions Decal
(Superseded to 98021GS)

$4.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 98022

3.8 HP Sears Decal

$

$

Not available

42

Briggs & Stratton 98316

Gun

$

$

Currently unavailable

43

Briggs & Stratton 98317

Regular Nozzle Wand
(Superseded to 188792CGS)

$60.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 98318

Turbo Nozzle Wand
(Superseded to B2335GS)

$47.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 97810

Hose

$

$

Currently unavailable

46

Briggs & Stratton 98754

Pump Seep Warning Decal

$

$

Currently unavailable
