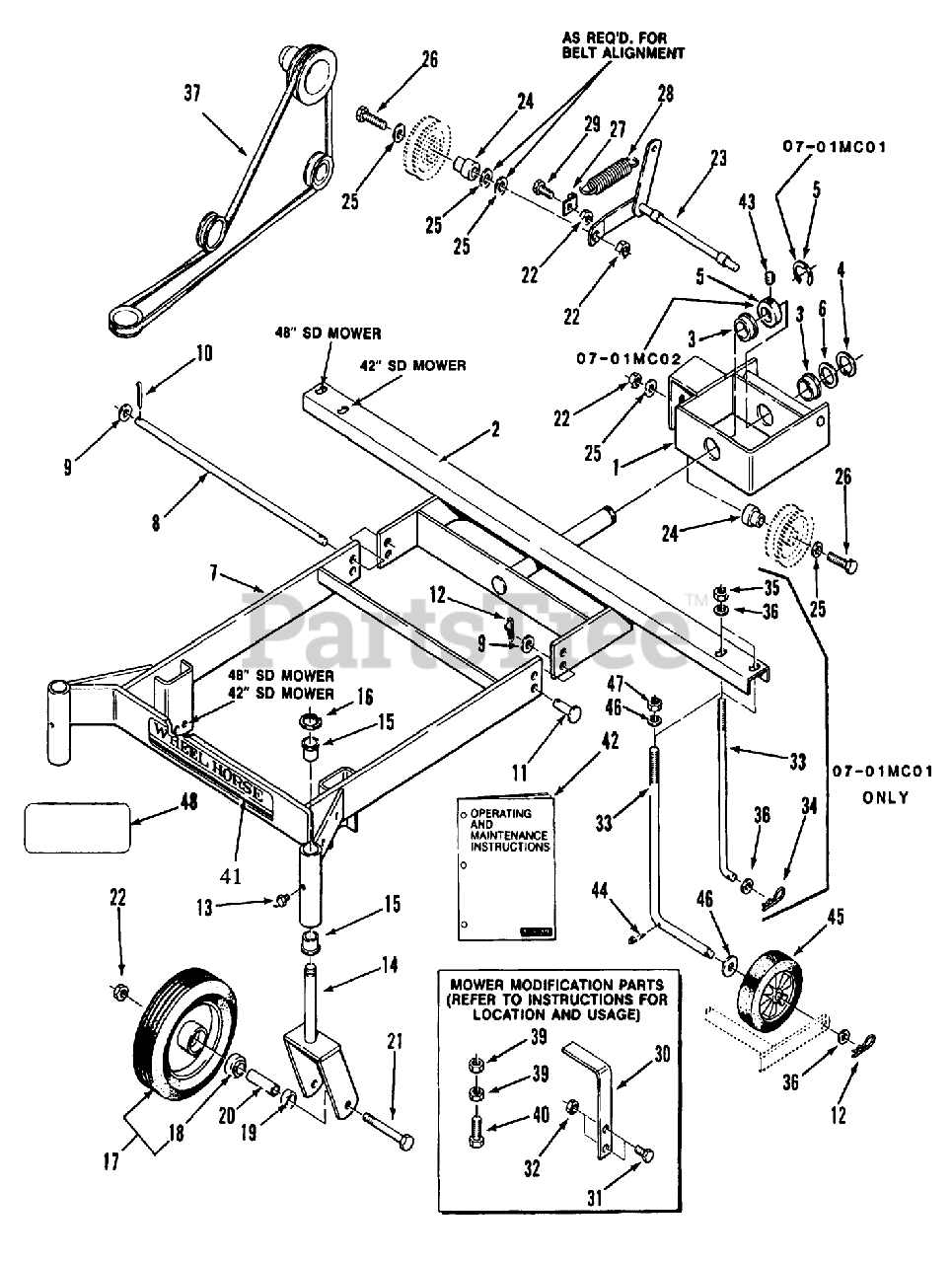

07-01MC02 - Toro Front Mower Carrier (1988) Front Mount Mower Carrier Vehicle Identification Number 07-01mc01, 07-01mc02, 07-01mc03 Parts Diagram

Front Mower Carrier

Front Mount Mower Carrier Vehicle Identification Number 07-01mc01, 07-01mc02, 07-01mc03 Parts Diagram

  • Title

1

Toro 109927

DISCONTINUED
(Superseded to 116283)

$

$

Not available

Toro 116283

DISCONTINUED

$

$

Not available

2

Toro 110119

Pivot Frame (07-01MC01)

$

$

Not available

Toro 110517

ASSY PIVOT FRAME *R

$

$

Not available

3

Toro 103007

BUSHING

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$

$

Not available

4

Toro 7939

See Supercession: 32151-36
(Superseded to 32151-36)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$4.99

$

In Stock, Qty 20+

0

5

Toro 8192

DISCONTINUED

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$

$

Not available

Toro 5700

E RING

$4.99

$

Usually ships in 3-6 days

0

6

Toro 920251

WASHER

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$3.49

$

In Stock, only 2 left!

0

7

Toro 109938

ASSY FRAME *R

$

$

Not available

8

Toro 109945

DISCONTINUED

$

$

Not available

9

Toro 920011

See Supercession: 3256-26
(Superseded to 3256-26)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$0.99

$

In Stock, Qty 16

0

10

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$0.99

$

Usually ships in 3-6 days

0

11

Toro 932997

CLEVIS PIN

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$

$

Not available

12

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$1.99

$

In Stock, Qty 20+

0

13

Toro 1030

DUP PART SEE $BOOK

$

$

Not available

14

Toro 109946

DISCONTINUED

$

$

Not available

15

Toro 106872

BUSHING

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$62.99

$

Usually ships in 3-6 days

0

16

Toro 936125

See Supercession: 32120-72
(Superseded to 32120-72)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$2.49

$

In Stock, only 4 left!

0

17

Toro 109900

DISCONTINUED
(Superseded to 114275)

$

$

Not available

18

Toro 105720

DISCONTINUED

$

$

Not available

19

Toro 100686

SPACER

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$

$

Not available

20

Toro 109950

SPACER

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$

$

Not available

21

Toro 908044

See Supercession: 323-16
(Superseded to 323-16)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$3.49

$

In Stock, Qty 5

0

22

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$2.99

$

In Stock, Qty 20+

0

23

Toro 109951

DISCONTINUED

$

$

Not available

24

Toro 109785

SPACER

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$

$

Not available

25

Toro 920039

See Supercession: 3256-4
(Superseded to 3256-4)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$1.99

$

In Stock, Qty 20+

0

26

Toro 908038

See Supercession: 323-10
(Superseded to 323-10)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$1.49

$

In Stock, Qty 7

0

27

Toro 2534

CLIP - SPRING

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$4.99

$

In Stock, only 2 left!

0

28

Toro 100071

SPRING-EXTENSION

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$12.99

$

In Stock, only 3 left!

0

29

Toro 908034

See Supercession: 323-6
(Superseded to 323-6)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$2.99

$

In Stock, Qty 20+

0

30

Toro 106380

HANDLE-EXTENSION *R

$

$

Not available

31

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$1.49

$

In Stock, Qty 20+

0

32

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$0.99

$

In Stock, Qty 6

0

33

Toro 4384

See Supercession: 703449
(Superseded to 703449)

$

$

Not available

Toro 110519

ROD HANGER *R

$

$

Not available

34

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 5

0

35

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$2.99

$

In Stock, Qty 20+

0

36

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$0.99

$

In Stock, Qty 20+

0

37

Toro 109956

DISCONTINUED

$

$

Not available

Toro 110138

DISCONTINUED

$

$

Not available

39

Toro 109779

NUT-HEX, JAM

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$

$

Not available

40

Toro 908035

See Supercession: 323-7
(Superseded to 323-7)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$3.49

$

In Stock, Qty 20+

0

41

Toro 111183

DISCONTINUED

$

$

Not available

42

Toro 810642R1

Operating And Maintenance Instructions

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$

$

Currently unavailable

43

Toro 909531

DISCONTINUED

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$

$

Not available

44

Toro 932009

See Supercession: 3272-9
(Superseded to 3272-9)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$0.99

$

Usually ships in 3-6 days

0

45

Toro 109375

WHEEL ASM

$

$

Not available

46

Toro 920011

See Supercession: 3256-26
(Superseded to 3256-26)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$0.99

$

In Stock, Qty 16

0

47

Toro 915665

See Supercession: 3296-23
(Superseded to 3296-23)

Note: Indicates Part of Loose Parts Package 807041 (07-01MC01,02); 807248 (07-01MC03)

$1.49

$

In Stock, Qty 20+

0

48

Toro 112403

DECAL-OVERLAY

$

$

Not available
