07-07BC01 - Toro 37" Twin Rear Bagger (1988) A & 100-SERIES TWIN REAR GRASS BAGGER-30 IN./76 CM MOWER (VEHICLE IDENTIFICATION NUMBER 37-07BR01) Parts Diagram

37" Twin Rear Bagger

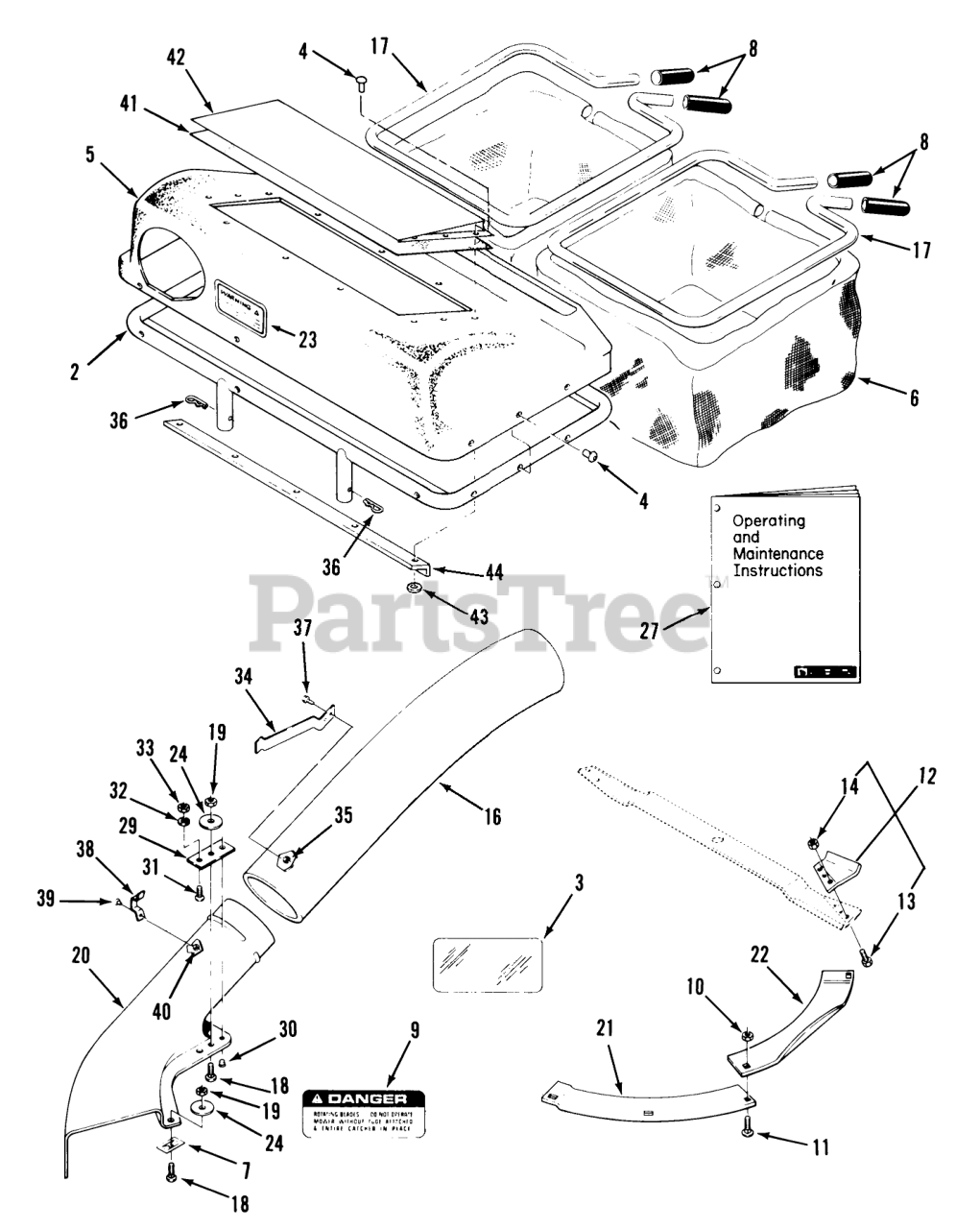

A & 100-SERIES TWIN REAR GRASS BAGGER-30 IN./76 CM MOWER (VEHICLE IDENTIFICATION NUMBER 37-07BR01) Parts Diagram

  • Title

2

Toro 112993

Frame

$

$

Not available

3

Toro 112403

DECAL-OVERLAY

$

$

Not available

4

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

5

Toro 114360

TOP-BAGGER

$

$

Not available

6

Toro 114422

BAG-(BLACK) W/HANDLE

$

$

Not available

7

Toro 106535

SPEED NUT 1/4-20

Note: Indicates Part of Loose Parts Package 807178.

$

$

Not available

8

Toro 6528

GRIP

$

$

Not available

9

Toro 113914

DECAL-DANGER

$

$

Not available

10

Toro 915112

Nut
(Superseded to 3217-6)

Note: Indicates Part of Loose Parts Package 807178.

$1.49

$

In Stock, Qty 12

0

11

Toro 900037

Bolt
(Superseded to 3230-1)

Note: Indicates Part of Loose Parts Package 807178.

$1.99

$

In Stock, Qty 20+

0

12

Toro 110974

Lift Tab Kit (includes items 13 & 14)

Note: Indicates Part of Loose Parts Package 807178.

$84.99

$

Usually ships in 3-6 days

0

13

Toro 108686

BOLT 5/16-18X5/8

Note: Indicates Part of Loose Parts Package 807178.

$9.49

$

Usually ships in 3-6 days

0

14

Toro 108687

NUT-LOCK 5/16-18

Note: Indicates Part of Loose Parts Package 807178.

$1.49

$

Usually ships in 3-6 days

0

16

Toro 113003

TUBE-BAGGER

$

$

Not available

17

Toro 113364

Bag Frame

$

$

Not available

18

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

Note: Indicates Part of Loose Parts Package 807178.

$3.99

$

In Stock, Qty 20+

0

19

Toro 915661

Nut
(Superseded to 3296-42)

Note: Indicates Part of Loose Parts Package 807178.

$0.99

$

In Stock, Qty 20+

0

20

Toro 112999

Elbow (includes items 29-33, 38, 39 & 40)

$

$

Not available

21

Toro 110155

PLATE MOWER RING B (NS)
(Superseded to 110155-03)

$53.99

$

In Stock, only 1 left!

0

22

Toro 110156

PLATE MOWER B

$15.99

$

In Stock, only 1 left!

0

23

Toro 108627

DECAL-WARNING

$

$

Not available

24

Toro 103995

WASHER

Note: Indicates Part of Loose Parts Package 807178.

$9.49

$

In Stock, only 2 left!

0

27

Toro 810534R1

Operating and Maintenance Instructions

Note: Indicates Part of Loose Parts Package 807178.

$

$

Currently unavailable

29

Toro 110477

PLATE

$

$

Not available

30

Toro 923785

RIVET -4

$1.49

$

Usually ships in 3-6 days

0

31

Toro 910796

Screw
(Superseded to 9107964)

$1.49

$

Usually ships in 3-6 days

0

32

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

33

Toro 915538

Hex Nut
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

34

Toro 109625

SPRING-TUBE

Note: Indicates Part of Loose Parts Package 807178.

$

$

Not available

35

Toro 915740

Nut
(Superseded to 3296-2)

Note: Indicates Part of Loose Parts Package 807178.

$2.49

$

In Stock, Qty 20+

0

36

Toro 933507

Pin-Cotter
(Superseded to 9335074)

$5.99

$

In Stock, Qty 5

0

37

Toro 910792

Screw
(Superseded to 910790)

Note: Indicates Part of Loose Parts Package 807178.

$0.99

$

In Stock, only 2 left!

0

38

Toro 109628

BRACKET

$10.99

$

Usually ships in 3-6 days

0

39

Toro 923792

POPRIVET

$

$

Not available

40

Toro 920003

WASHER

$

$

Not available

41

Toro 114361

Top Screen

$

$

Not available

42

Toro 114362

Screen Cover

$

$

Not available

43

Toro 920270

Washer
(Superseded to 9202704)

$1.49

$

In Stock, Qty 7

0

44

Toro 114381

Top Stiffener

$

$

Not available
