07-36TL03 - Toro 36" Tiller Attachment (1984) TILLER-36 IN. (92 CM) VEHICLE IDENTIFICATION NUMBER 07-36TL03 Parts Diagram

36" Tiller Attachment

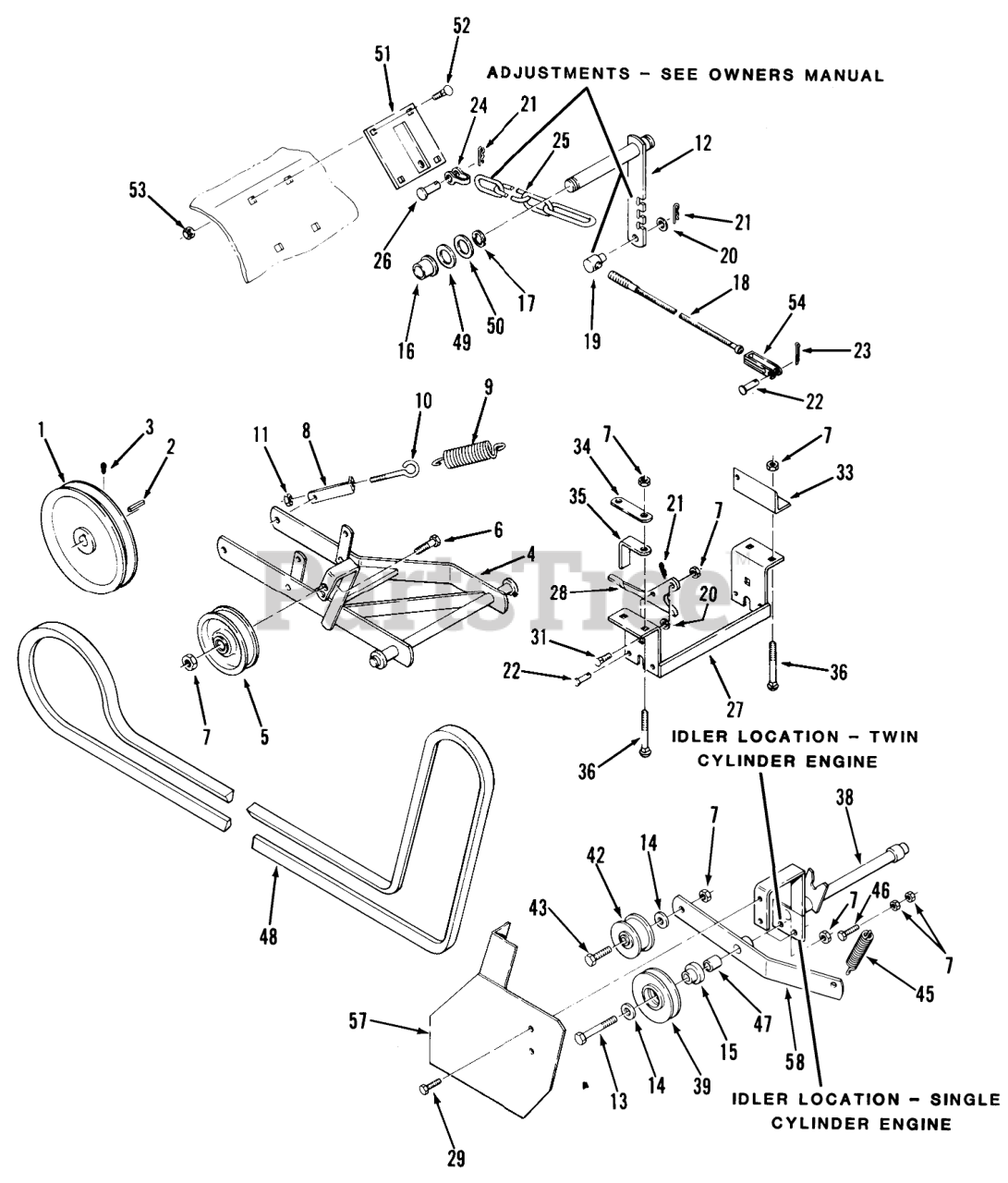

TILLER-36 IN. (92 CM) VEHICLE IDENTIFICATION NUMBER 07-36TL03 Parts Diagram

  • Title

1

Toro 6844

Pulley
(Superseded to 93-0345)

$164.99

$

Usually ships in 3-6 days

0

2

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

Note: Indicates Part of Loose Parts Package 807008.

$6.49

$

In Stock, only 2 left!

0

3

Toro 909540

Set Screw
(Superseded to 3242-2)

Note: Indicates Part of Loose Parts Package 807008.

$1.99

$

In Stock, Qty 6

0

4

Toro 105543

Hitch
(Superseded to 93-1607-01)

$398.99

$

Usually ships in 3-6 days

0

5

Toro 105874

Flat Idler
(Superseded to 92-7104)

$29.99

$

In Stock, only 2 left!

0

6

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

7

Toro 915113

Nut
(Superseded to 32153-2)

Note: Indicates Part of Loose Parts Package 807008.

$0.99

$

In Stock, Qty 20+

0

8

Toro 104448

Bracket-Spring
(Superseded to 93-1606-03)

Note: Indicates Part of Loose Parts Package 807008.

$42.99

$

Usually ships in 3-6 days

0

9

Toro 4629

SPRING

$70.99

$

In Stock, only 2 left!

0

10

Toro 100653

EYEBOLT

Note: Indicates Part of Loose Parts Package 807008.

$22.99

$

Usually ships in 3-6 days

0

11

Toro 915663

NUT
(Superseded to 3296-39)

Note: Indicates Part of Loose Parts Package 807008.

$2.99

$

In Stock, Qty 20+

0

12

Toro 110044

ASSY LEVER R
(Superseded to 110044-01)

$

$

Not available

13

Toro 908041

Bolt
(Superseded to 323-13)

$1.99

$

In Stock, Qty 16

0

14

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

15

Toro 1982

Spacer

$

$

Not available

16

Toro 108519

BUSHING-BRONZE

Note: Indicates Part of Loose Parts Package 807008.

$15.99

$

In Stock, Qty 8

0

17

Toro 5618

E-RING

Note: Indicates Part of Loose Parts Package 807008.

$0.99

$

In Stock, Qty 15

0

18

Toro 108144

CABLE

Note: Indicates Part of Loose Parts Package 807008.

$88.99

$

Usually ships in 3-6 days

0

19

Toro 104524

TRUNNION-CLUTCH ROD

Note: Indicates Part of Loose Parts Package 807008.

$43.99

$

Usually ships in 3-6 days

0

20

Toro 920009

Washer
(Superseded to 3256-24)

Note: Indicates Part of Loose Parts Package 807008.

$0.99

$

In Stock, Qty 20+

0

21

Toro 933504

Hairpin
(Superseded to 9335044)

Note: Indicates Part of Loose Parts Package 807008.

$1.49

$

In Stock, Qty 14

0

22

Toro 932120

Pin
(Superseded to 9321204)

Note: Indicates Part of Loose Parts Package 807008.

$4.99

$

Usually ships in 3-6 days

0

23

Toro 932000

Cotter Pin
(Superseded to 3272-1)

Note: Indicates Part of Loose Parts Package 807008.

$0.99

$

In Stock, Qty 10

0

24

Toro 105820

Clevis
(Superseded to 79-2280)

Note: Indicates Part of Loose Parts Package 807008.

$19.99

$

Usually ships in 3-6 days

0

25

Toro 110046

CHAIN LIFT
(Superseded to 92-7074)

Note: Indicates Part of Loose Parts Package 807008.

$

$

Not available

26

Toro 105821

Clevis Pin
(Superseded to 9329584)

Note: Indicates Part of Loose Parts Package 807008.

$

$

Not available

27

Toro 104659

Bracket
(Superseded to 104659-01)

$171.99

$

Usually ships in 3-6 days

0

28

Toro 104657

PLATE-LATCHING

Note: Indicates Part of Loose Parts Package 807008.

$36.99

$

Usually ships in 3-6 days

0

29

Toro 926671

Bolt
(Superseded to 9266714)

Note: Indicates Part of Loose Parts Package 807008.

$1.49

$

In Stock, Qty 16

0

31

Toro 900063

Bolt
(Superseded to 323-12)

Note: Indicates Part of Loose Parts Package 807008.

$2.49

$

In Stock, Qty 20+

0

33

Toro 108485

LINK-BRACKET R
(Superseded to 108485-01)

Note: Indicates Part of Loose Parts Package 807008.

$

$

Not available

34

Toro 3697

BRACKET-REAR LINK MOUNTING

Note: Indicates Part of Loose Parts Package 807008.

$33.99

$

Usually ships in 3-6 days

0

35

Toro 7713

SPACER-BRACKET

Note: Indicates Part of Loose Parts Package 807008.

$

$

Not available

36

Toro 900073

Bolt-Carriage
(Superseded to 3231-11)

Note: Indicates Part of Loose Parts Package 807008.

$5.49

$

In Stock, only 4 left!

0

38

Toro 110008

ASSY SUPPORT R
(Superseded to 110008-01)

$

$

Not available

39

Toro 104974

Pulley-V
(Superseded to 92-7103)

$53.99

$

In Stock, only 4 left!

0

42

Toro MW8821

IDLER PULLEY

$22.99

$

In Stock, only 1 left!

0

43

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

45

Toro 6135

SPRING-BRAKE

Note: Indicates Part of Loose Parts Package 807008.

$10.99

$

In Stock, only 4 left!

0

46

Toro 908035

Bolt
(Superseded to 323-7)

Note: Indicates Part of Loose Parts Package 807008.

$2.99

$

In Stock, Qty 20+

0

47

Toro 102025

SPACER

$

$

Not available

48

Toro 110265

V-BELT

$96.99

$

Usually ships in 3-6 days

0

49

Toro 1278

WASHER

Note: Indicates Part of Loose Parts Package 807008.

$2.99

$

In Stock, Qty 20+

0

50

Toro 5210

WASHER-SHIM

Note: Indicates Part of Loose Parts Package 807008.

$2.49

$

In Stock, Qty 20+

0

51

Toro 106531

Lift Plate
(Superseded to 93-1608-03)

$

$

Not available

52

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

53

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

54

Toro 108145

CLEVIS-SHORT

Note: Indicates Part of Loose Parts Package 807008.

$38.99

$

Usually ships in 3-6 days

0

Toro 108143

CLEVIS-LONG

$53.99

$

Usually ships in 3-6 days

0

57

Toro 110039

ASM: FRONT IDLER R
(Superseded to 110039-01)

$

$

Not available

58

Toro 110013

Arm-Idler
(Superseded to 92-4082-01)

$90.99

$

Usually ships in 3-6 days

0
