07-40TL01 - Toro 40" Tiller Attachment (1980) PARTS LIST FOR SHEET METAL AND TINES (FIG. A) Parts Diagram

40" Tiller Attachment

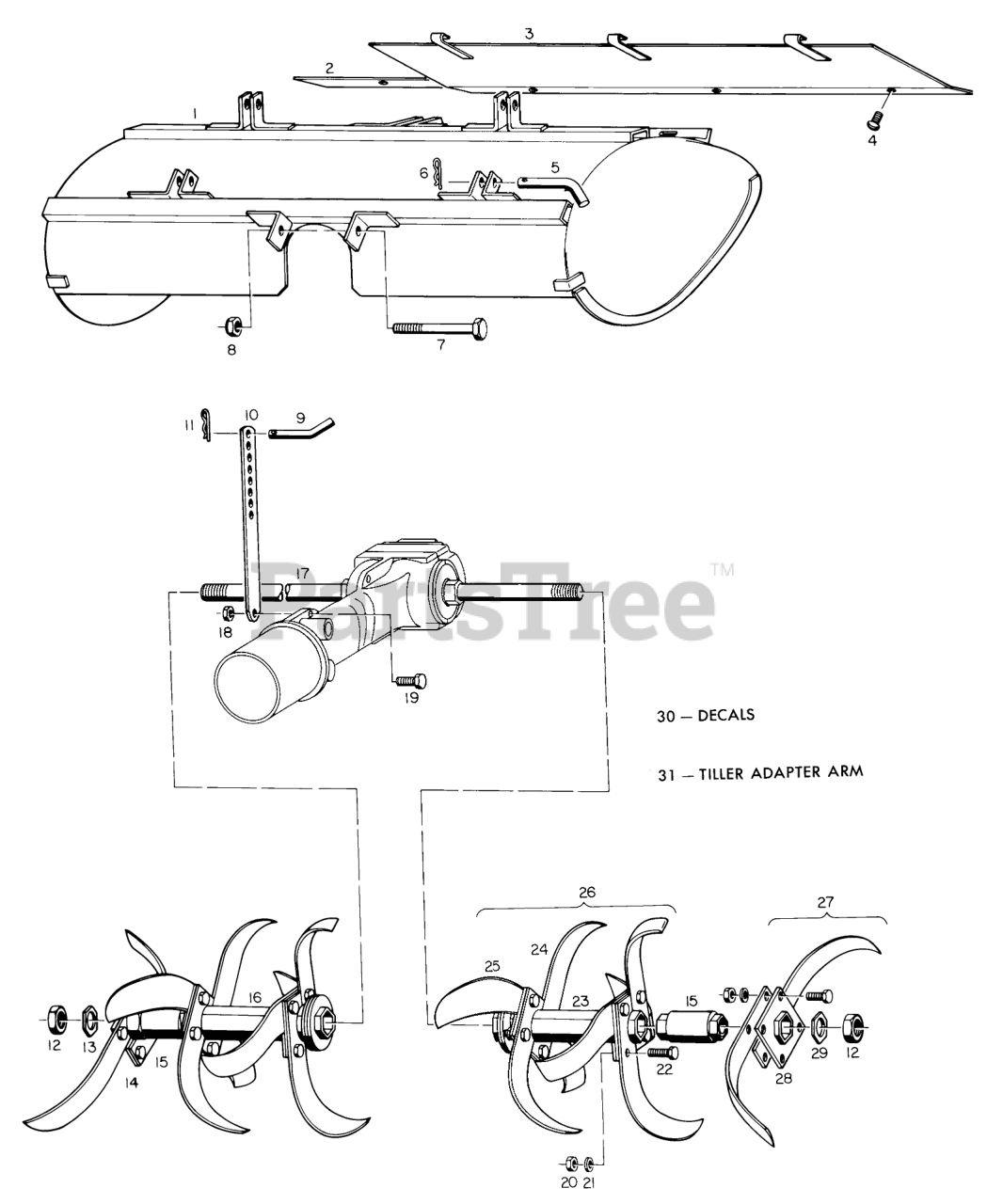

PARTS LIST FOR SHEET METAL AND TINES (FIG. A) Parts Diagram

  • Title

1

Toro 251111

Hood Assembly

$

$

Not available

2

Toro 251104

Ballast Plate

$

$

Not available

3

Toro 251112

Rear Drag Plate

$

$

Not available

4

Toro 251126

Screw

$

$

Not available

5

Toro 251266

"L" Clevis Pin

$

$

Not available

6

Toro 251066

Hairpin Cotter

$

$

Not available

7

Toro 251122

Bolt

$

$

Not available

8

Toro 251200

Nut

$

$

Not available

9

Toro 251266

"L" Clevis Pin

$

$

Not available

10

Toro 251103

Adjusting Lever

$

$

Not available

11

Toro 251066

Hairpin Cotter

$

$

Not available

12

Toro 251201

Nut

$

$

Not available

13

Toro 251235

Lockwasher

$

$

Not available

14

Toro 251117

R. H. Outside Tine Assembly, Same as 27, except with two #24 Left Hand Tines

$

$

Not available

15

Toro 251261

Spacing Hub

$

$

Not available

16

Toro 251116

R. H. Inside Tine Assembly (Consists of Parts 20-25)

$

$

Not available

17

Toro 251063

Tine Shaft

$

$

Not available

18

Toro 251199

Nut

$

$

Not available

19

Toro 250167

Bolt

$

$

Not available

20

Toro 250374

Nut

$

$

Not available

21

Toro 250458

Washer
(Superseded to 920084)

$0.99

$

Usually ships in 3-6 days

0

22

Toro 250167

Bolt

$

$

Not available

23

Toro 251113

Tine Carrier Plate Assembly

$

$

Not available

24

Toro 251105

Left Hand Tine

$

$

Not available

25

Toro 251106

Righ Hand Tine

$

$

Not available

26

Toro 251114

L.H. Inside Tine Assembly (Consists of Parts 20-25)

$

$

Not available

27

Toro 251115

L.H. Outside Tine Assembly (Consists of 20, 21, 22, 28 and 29)

$

$

Not available

28

Toro 251118

Carrier Plate Assembly

$

$

Not available

29

Toro 251235

Lockwasher

$

$

Not available

30

Toro 105003

Caution Decal
(Superseded to 92-7112)

$

$

Not available

30

Toro 102831

Decal
(Superseded to 108851)

$33.99

$

Usually ships in 3-6 days

0

31

Toro 251169

Adapter Arm

$

$

Not available
