07-4XVC01 - Toro 42"/48" Vacuum Bagger (SN: 020000001 - 029999999) (1992) PULLEY & BELT ASSEMBLY Parts Diagram

42"/48" Vacuum Bagger

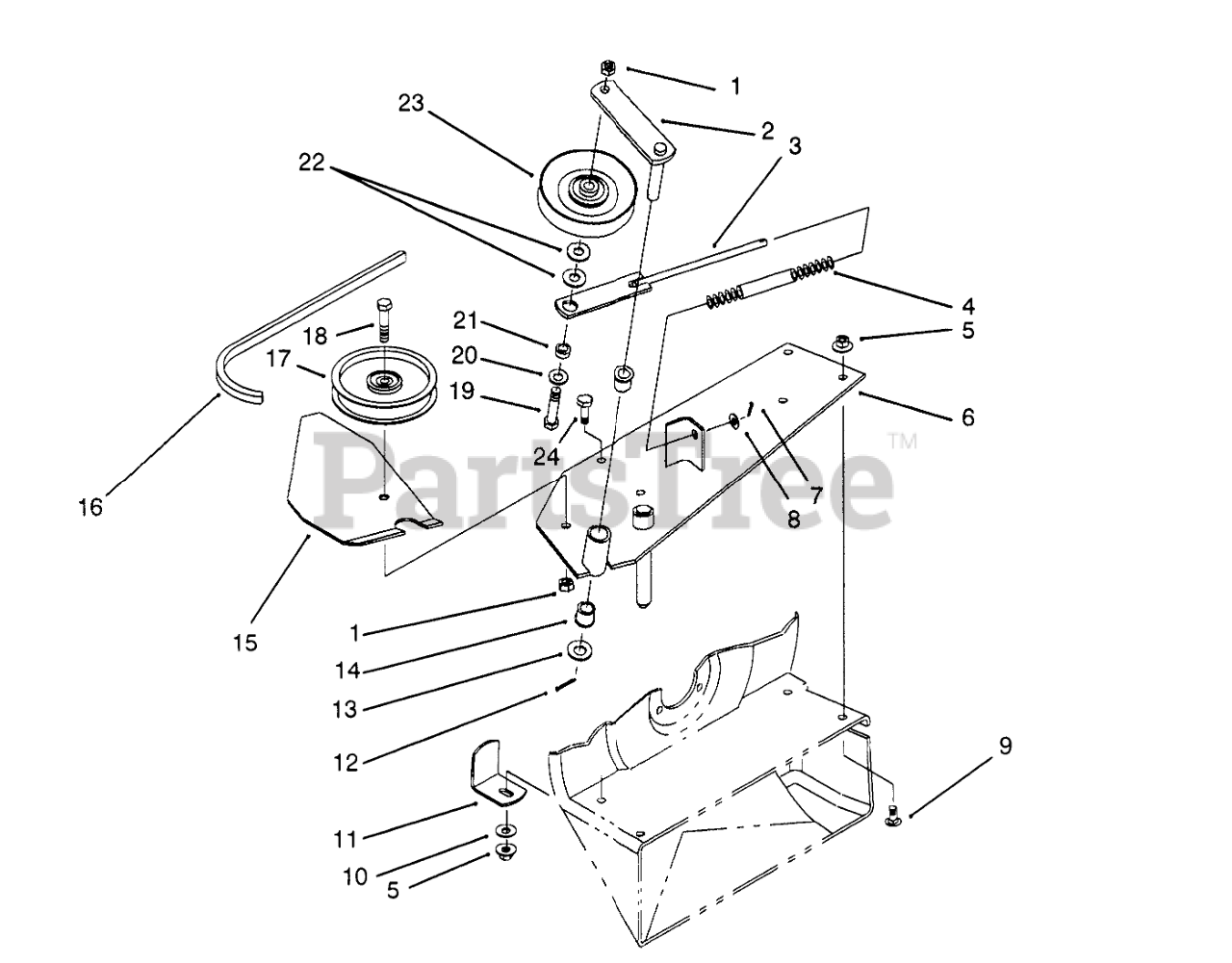

PULLEY & BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 79-1970

IDLER ARM ASM

$55.99

$

Usually ships in 3-6 days

0

3

Toro 79-2020

SPRING-ROD

$54.99

$

Usually ships in 3-6 days

0

4

Toro 79-7110

SPRING-COMPRESSION

$11.99

$

Usually ships in 3-6 days

0

5

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 79-1380

BLOWER-MTG ASM
(Superseded to 79-1380-03)

$218.99

$

Usually ships in 3-6 days

0

7

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 79-7440

BRACKET-SUPPORT, HOUSING

$18.99

$

Usually ships in 3-6 days

0

12

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

13

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 100284

BUSHING

$11.99

$

Usually ships in 3-6 days

0

15

Toro 79-7280

SHIELD SUPPORT B
(Superseded to 79-7280-03)

$36.99

$

Usually ships in 3-6 days

0

16

Toro 79-7480

V-BELT

$87.99

$

In Stock, only 1 left!

0

Toro 79-7490

V-BELT

Note: Not illustrated

$88.99

$

Usually ships in 3-6 days

0

17

Toro 112895

Pulley
(Superseded to 93-1622)

$42.99

$

Usually ships in 3-6 days

0

18

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 107213

SPACER

$12.99

$

In Stock, only 1 left!

0

22

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

23

Toro 115118

"V" Pulley
(Superseded to 92-7099)

$69.99

$

In Stock, only 1 left!

0

24

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
