07-4XVC01 - Toro 42"/48" Vacuum Bagger (SN: 020000001 - 029999999) (1992) SHIELD ASSEMBLY (48" CUTTING UNIT) Parts Diagram

42"/48" Vacuum Bagger

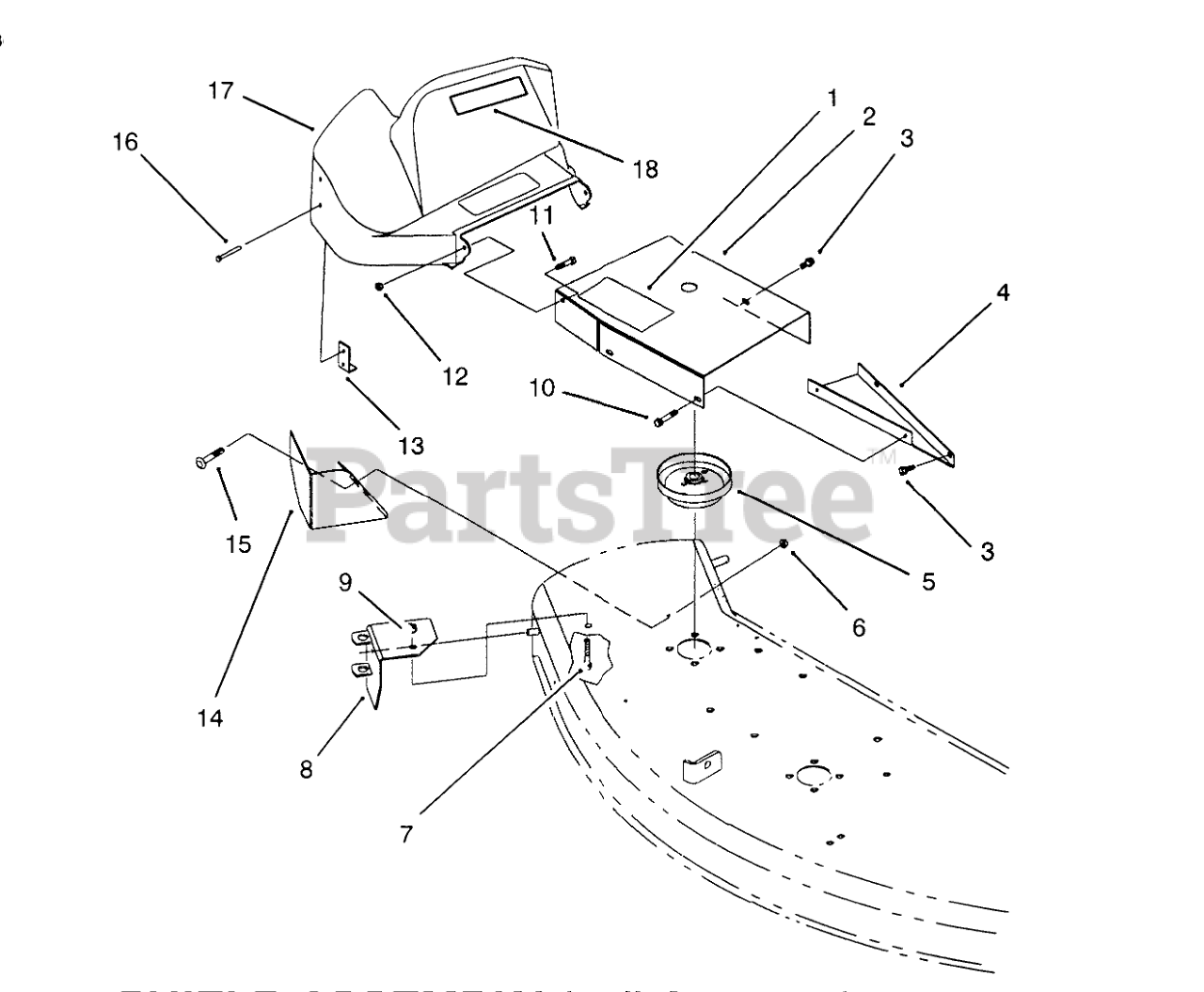

SHIELD ASSEMBLY (48" CUTTING UNIT) Parts Diagram

  • Title

1

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

2

Toro 92-1160

Inner Shield Assembly (Incl. Ref. #1)

$

$

Not available

3

Toro 3234-26

SCREW-HHF

$3.49

$

In Stock, Qty 9

0

4

Toro 79-7200

48" ADAPTOR SHIELD B
(Superseded to 79-7200-03)

$

$

Not available

5

Toro 79-7130

PULLEY

$143.99

$

Usually ships in 3-6 days

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 79-7000

PIVOT SUPPORT ASM
(Superseded to 79-7000-03)

$131.99

$

Usually ships in 3-6 days

0

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

11

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 88-1870

BRACKET-SUPPORT, SHIELD

$

$

Not available

14

Toro 79-7290

48" DEFLECTOR B
(Superseded to 79-7290-03)

$

$

Not available

15

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

16

Toro 79-0470

RIVET-POP

$

$

Not available

17

Toro 86-9300

SHIELD-BELT

$

$

Not available

18

Toro 79-7620

DECAL - DANGER

$

$

Not available
