07-4XVS01 - Toro 42"/48" Easy Twin Vacuum Bagger (SN: 020000001 - 029999999) (1992) HOUSING & IMPELLER ASSEMBLY Parts Diagram

42"/48" Easy Twin Vacuum Bagger

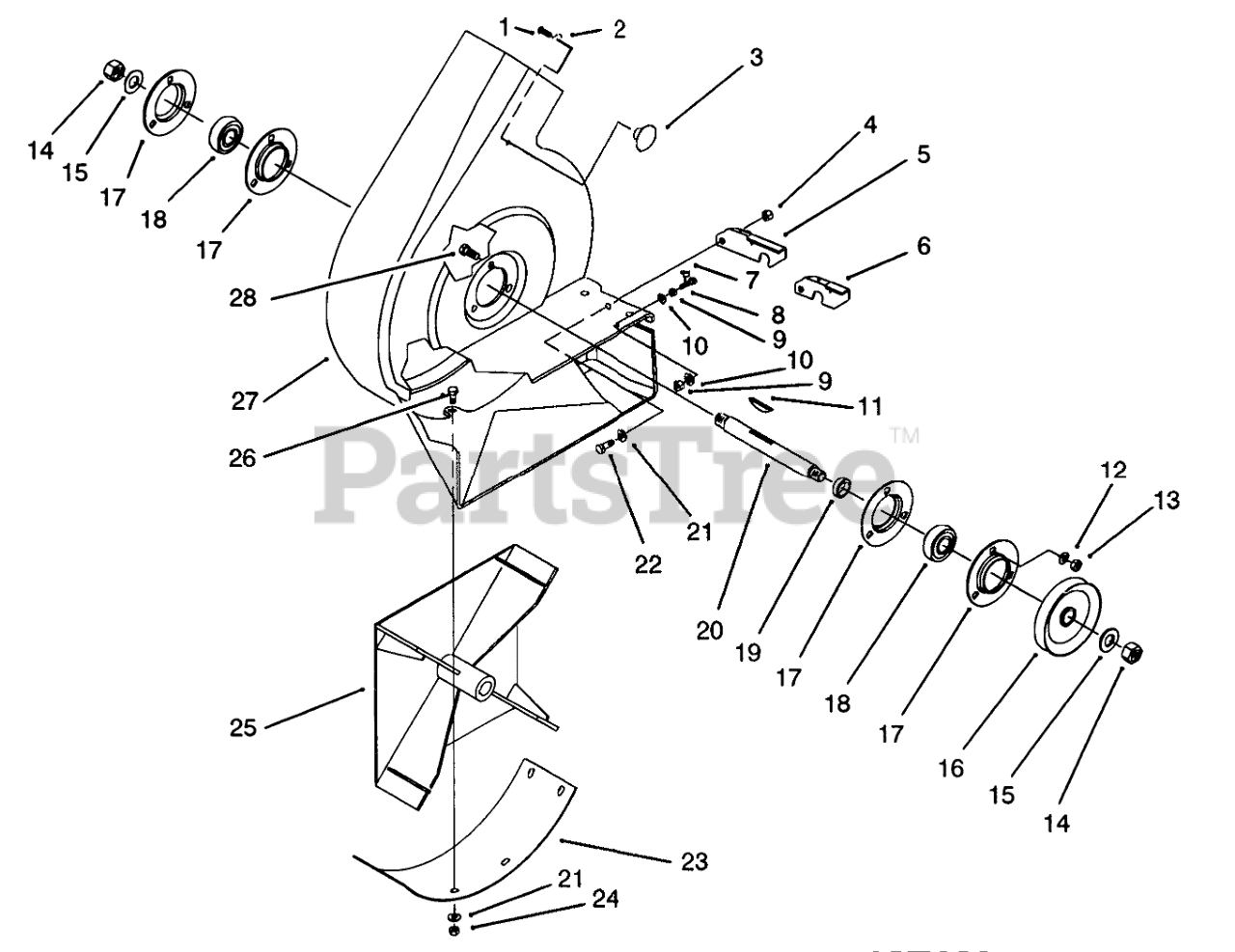

HOUSING & IMPELLER ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-8

SCREW-PPHTF

$5.99

$

Usually ships in 3-6 days

0

2

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

3

Toro 233-68

KNOB

$7.49

$

Usually ships in 3-6 days

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 79-7230

48" BLOWER LATCH B
(Superseded to 79-7230-03)

$22.99

$

In Stock, only 2 left!

0

6

Toro 79-7220

42" BLOWER LATCH B
(Superseded to 79-7220-03)

$24.99

$

Usually ships in 3-6 days

0

7

Toro 79-7390

SPRING-EXTENSION

$19.99

$

Usually ships in 3-6 days

0

8

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

9

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 4 left!

0

10

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3257-40

KEY

$9.49

$

Usually ships in 3-6 days

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

14

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 13

0

15

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 79-1460

PULLEY-BLOWER

$68.99

$

Usually ships in 3-6 days

0

17

Toro 251-341

FLANGE

$16.99

$

In Stock, only 2 left!

0

18

Toro 251-288

BEARING-BALL

$98.99

$

In Stock, only 4 left!

0

19

Toro 7038

Spacer

$9.99

$

Usually ships in 3-6 days

0

20

Toro 79-1470

SHAFT-BLOWER

$62.99

$

Usually ships in 3-6 days

0

21

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 79-7170

COVER-BLOWER, BOTTOM
(Superseded to 79-7170-03)

$29.99

$

In Stock, only 3 left!

0

24

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 79-4300

Impeller
(Superseded to 79-4300-03)

$473.99

$

Usually ships in 3-6 days

0

26

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

27

Toro 79-6890

HOUSING-VAC, BLOWER
(Superseded to 119-3325)

$507.99

$

Usually ships in 3-6 days

0

28

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0
