07-50TL01 - Toro 50" Tiller Attachment (1982) TILLER-36 IN. (92 CM) VEHICLE IDENTIFICATION NUMBER 07-36TL01 Parts Diagram

50" Tiller Attachment

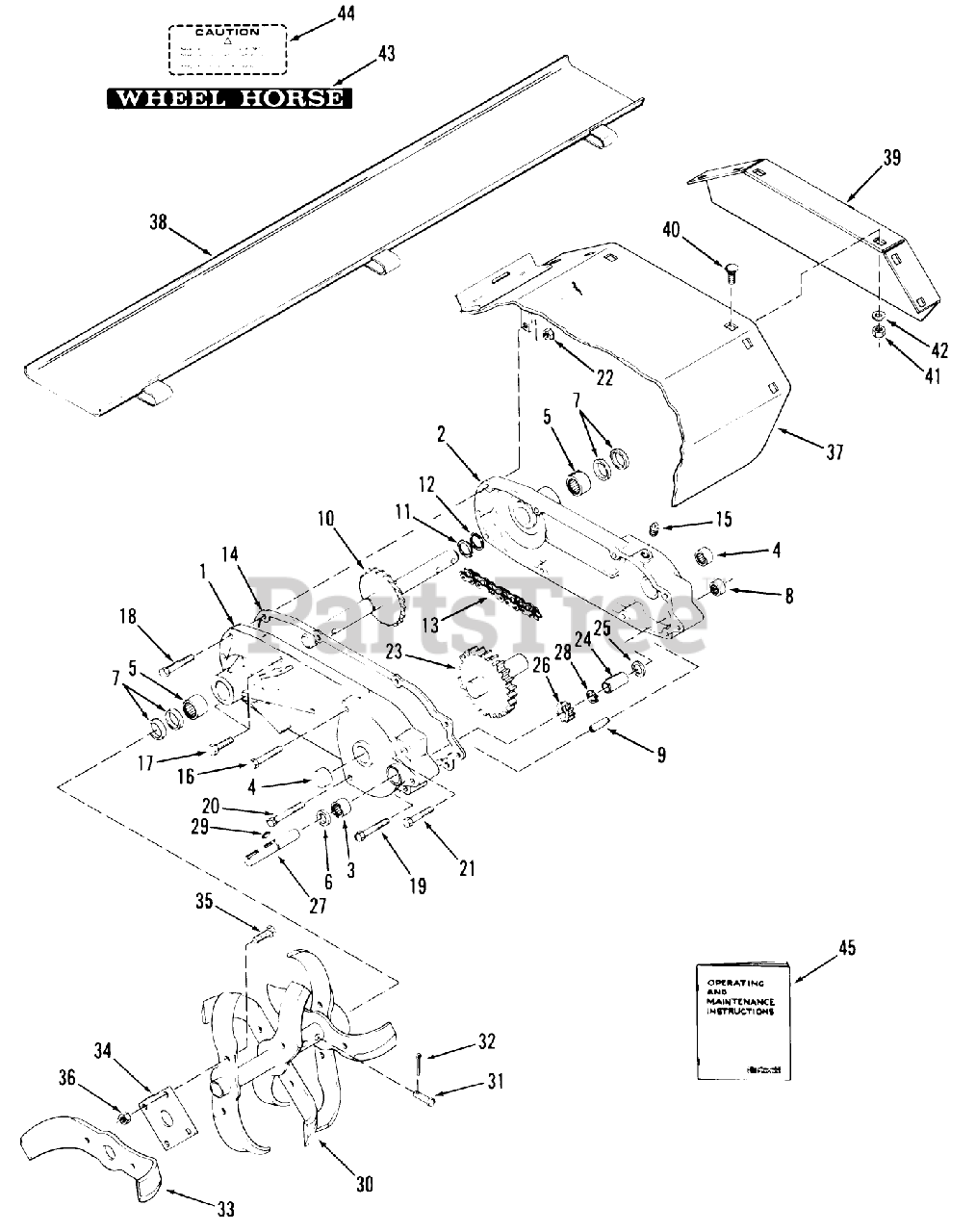

TILLER-36 IN. (92 CM) VEHICLE IDENTIFICATION NUMBER 07-36TL01 Parts Diagram

  • Title

1

Toro 6836

R.H. Case (w/Bearings)

$

$

Not available

2

Toro 6839

L.H. Case (w/Bearings)

$

$

Not available

3

Toro 1540

BEARING-NEEDLE

$34.99

$

Usually ships in 3-6 days

0

4

Toro 1532

BEARING-NEEDLE

$50.99

$

In Stock, only 4 left!

0

5

Toro 6838

BEARING-NEEDLE

$54.99

$

In Stock, only 2 left!

0

6

Toro 100441

SEAL-OIL

$8.49

$

In Stock, only 3 left!

0

7

Toro 103118

SEAL

$21.99

$

In Stock, Qty 10

0

8

Toro 1529

BEARING-NEEDLE

$43.99

$

Usually ships in 3-6 days

0

9

Toro 933242

ROLL PIN 3/8 X 1

$

$

Not available

10

Toro 106009

TINE SHAFT ASM

$

$

Not available

11

Toro 936136

Snap Ring
(Superseded to 32120-33)

$7.49

$

In Stock, Qty 20+

0

12

Toro 106011

WASHER

$9.49

$

Usually ships in 3-6 days

0

13

Toro 6848

CHAIN

$274.99

$

Usually ships in 3-6 days

0

14

Toro 6851

Gasket

$

$

Not available

15

Toro 943421

SOLID PIPE PLUG

$

$

Not available

16

Toro 908143

H H C S
(Superseded to 323-39)

$11.99

$

In Stock, Qty 20+

0

17

Toro 908041

Bolt
(Superseded to 323-13)

$1.99

$

In Stock, Qty 14

0

18

Toro 908043

HHCS
(Superseded to 323-15)

$1.99

$

In Stock, Qty 19

0

19

Toro 908144

BOLT
(Superseded to 323-23)

$5.49

$

In Stock, Qty 20+

0

20

Toro 908149

Hex Bolt
(Superseded to 323-25)

$14.99

$

Usually ships in 3-6 days

0

21

Toro 908044

Bolt 3/8-16 x 4
(Superseded to 323-16)

$3.49

$

In Stock, Qty 20+

0

22

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

23

Toro 106007

GEAR AND SHAFT ASM

$

$

Not available

24

Toro 6963

Spacer
(Superseded to 704086)

$

$

Not available

25

Toro 1535

WASHER-THRUST

$10.99

$

In Stock, only 2 left!

0

26

Toro 3528

GEAR-PINION

$

$

Not available

27

Toro 104387

SHAFT-INPUT

$313.99

$

Usually ships in 3-6 days

0

28

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, Qty 20+

0

29

Toro 937014

Key
(Superseded to 3257-5)

$5.49

$

In Stock, Qty 20+

0

30

Toro 9204

Tine R.H.
(Superseded to 93-1602-03)

$797.99

$

Usually ships in 3-6 days

0

Toro 9205

Tine L.H.
(Superseded to 93-1603-03)

$

$

Not available

31

Toro 9208

PIN-CLEVIS

$

$

Not available

32

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

33

Toro 9206

R.H. Tine
(Superseded to 92-1653-03)

$

$

Not available

Toro 9207

L.H. Tine
(Superseded to 93-1604-03)

$

$

Not available

34

Toro 9203

Plate-Tine Mounting
(Superseded to 93-1601-03)

$

$

Not available

35

Toro 908046

H H C S
(Superseded to 324-4)

$3.99

$

Usually ships in 3-6 days

0

36

Toro 915114

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

37

Toro 106094

X-REF 92-6514-01
(Superseded to 92-6514)

$

$

Not available

38

Toro 106092

Rear Shield
(Superseded to 93-1609-01)

$186.99

$

Usually ships in 3-6 days

0

39

Toro 104434

Cover-End
(Superseded to 93-1605-01)

$

$

Not available

40

Toro 900036

CARRIAGE BOLT -4

$1.99

$

Usually ships in 3-6 days

0

41

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

42

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

43

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

44

Toro 105003

Caution Decal
(Superseded to 92-7112)

$

$

Not available

45

Toro 810191R1

Operating and Maintenance Instructions

$

$

Currently unavailable
