070 (112-070-100) - Cub Cadet 20" Walk-Behind Mower (1982) Wheel, Throttle Control and Flap Assemblies Parts Diagram

20" Walk-Behind Mower

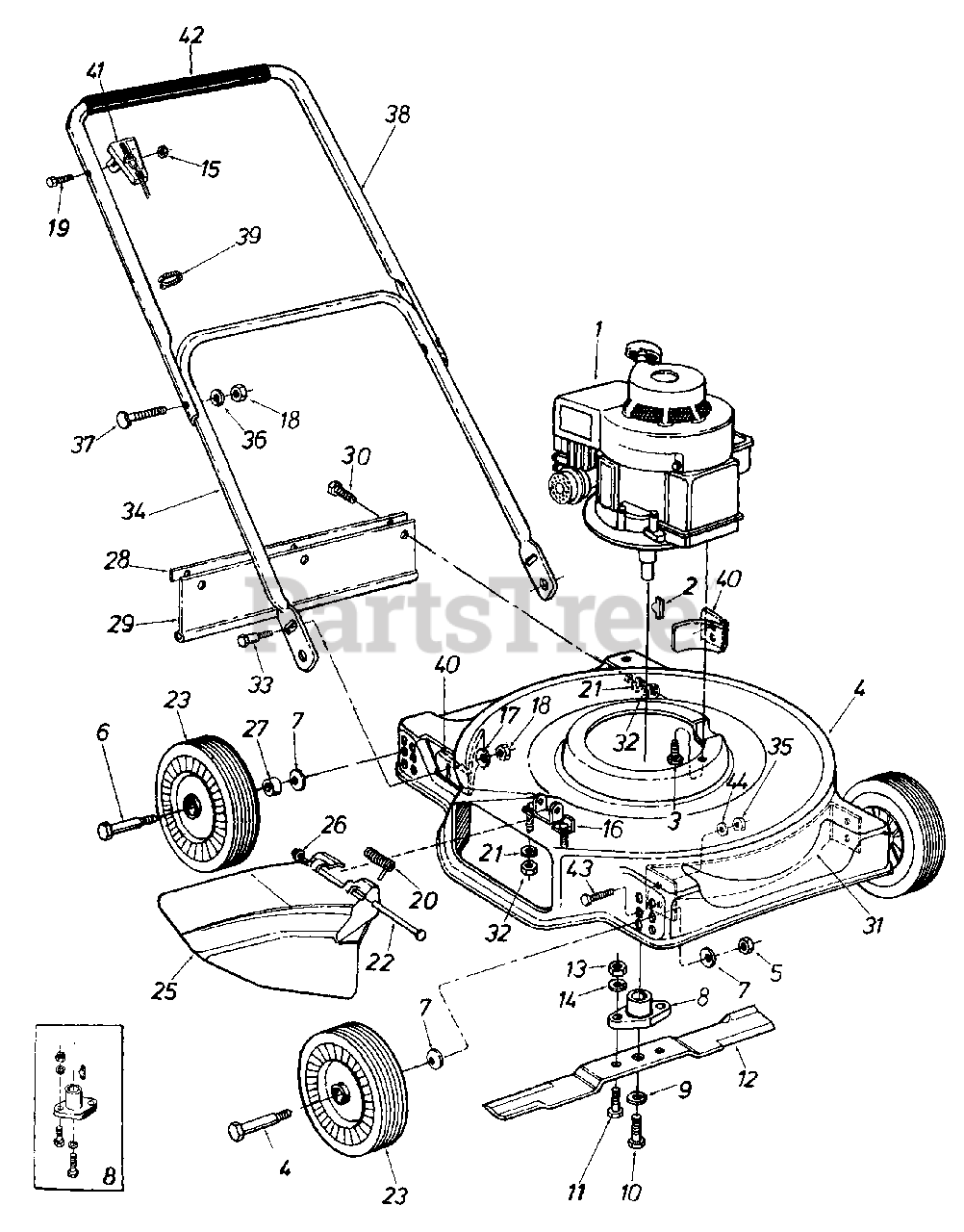

Wheel, Throttle Control and Flap Assemblies Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Cub Cadet 714-0365

#6 Hi-Pro Key 5/32 x 5/8" Dia.

$4.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0654

Hex Wash. Hd. Tap Scr. 3/8-16 x .88" Lg.
(Superseded to 710-0654A)

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 14482

20" Deck

Note: Color Code - 499; Code N

$

$

Currently unavailable

5

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 738-0509

Axle Bolt - Rear

$

$

Not available

7

Cub Cadet 736-0105

Belleville Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 10769

Blade Adapter Kit

$

$

Not available

9

Cub Cadet 736-0217

L-Wash. 3/8" I.D. Heavy Duty

$3.99

$

In Stock, Qty 13

0

10

Cub Cadet 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. (Grade 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

11

Cub Cadet 710-0117

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)
(Superseded to 710-0888)

$3.99

$

In Stock, Qty 11

0

12

Cub Cadet 742-0123

20" Blade

$

$

Not available

13

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

14

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

16

Cub Cadet 14428

Deflector Hinge Plate

Note: Color Code - 499

$

$

Currently unavailable

17

Cub Cadet 736-0242

Belleville Wash.

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0606

Hex Bolt 1/4-20 x 1.50" Lg.

$4.99

$

In Stock, Qty 15

0

20

Cub Cadet 732-0415

Torsion Spring

Note: Code N

$

$

Not available

21

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

22

Cub Cadet 711-0717

Hinge Pin 3/16" Dia. x 3.88" Lg.

$

$

Not available

23

Cub Cadet 734-0840

Wheel Ass'y. Comp. 7 x 1.50

$

$

Not available

24

Cub Cadet 738-0213

Axle Bolt - Front

$7.49

$

In Stock, Qty 5

0

25

Cub Cadet 14580

Chute Deflector

Note: Code N

$

$

Currently unavailable

26

Cub Cadet 726-0111

Push Nut .19 Rod

$6.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 750-0515

Spacer .511" I.D. x .70" O.D. x .38" Lg.

$4.49

$

In Stock, Qty 7

0

28

Cub Cadet 14531

Retaining Strip

Note: Code N

$

$

Currently unavailable

29

Cub Cadet 731-0575

Flap Ass'y.
(Superseded to 731-1029)

Note: Code N

$26.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 14589

Front Baffle (20")

Note: Optional Part; Code N

$

$

Currently unavailable

32

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

33

Cub Cadet 738-0296

Shoulder Bolt .437" Dia. x .268" Lg.

Note: (5/16-18 Thd.)

$3.99

$

In Stock, Qty 11

0

34

Cub Cadet 749-0449

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, Qty 10

0

35

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

Note: Optional Part

$3.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 710-0671

Curved Hd. Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

38

Cub Cadet 749-0385

Upper Handle

$

$

Not available

39

Cub Cadet 726-0188

Plastic Cable Tie

$

$

Not available

40

Cub Cadet 14590

Rear Baffle

Note: Code N

$

$

Currently unavailable

41

Cub Cadet 746-0259

Throttle Control Ass'y. Comp.

$

$

Not available

42

Cub Cadet 731-3026

Grip - Blue

$

$

Currently unavailable

43

Cub Cadet 310-0301

Hex Bolt 3/8-16 x .62" Lg.

Note: Optional Part

$

$

Currently unavailable

44

Cub Cadet 736-0105

Belleville Washer

Note: Optional Part

$3.99

$

In Stock, Qty 20+

0
