071035-02 - Briggs & Stratton Power Management System Power Management System - Hingeless Enclosure (208430) Parts Diagram

Power Management System

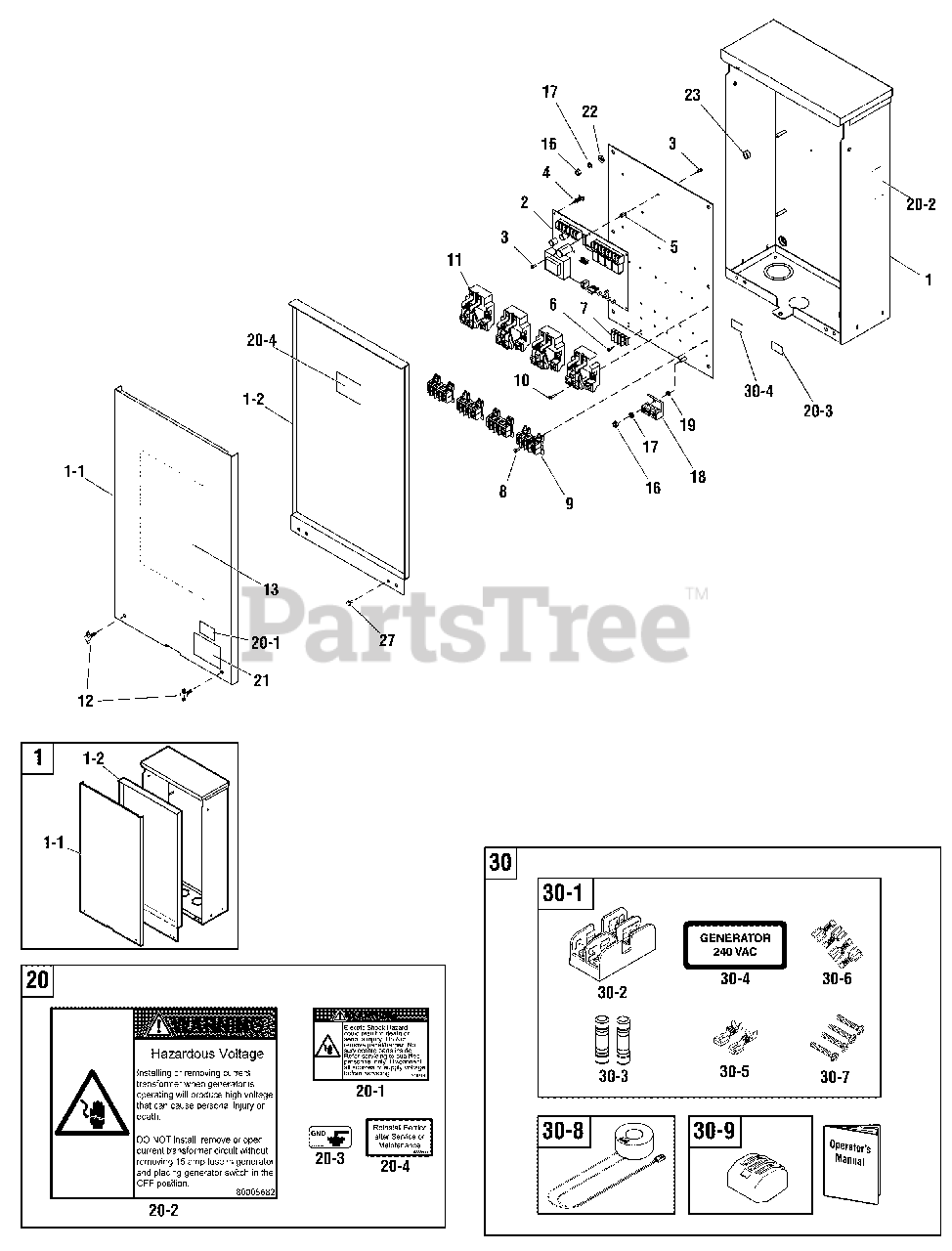

Power Management System - Hingeless Enclosure (208430) Parts Diagram

  • Title

1

-----

ENCLOSURE

Note: (Includes Ref. Nos. 1-1 & 1-2)

$

$

Not available

1-1

Briggs & Stratton 705947

DOOR

$333.99

$

Usually ships in 2-12 days

0

1-2

Briggs & Stratton 705957

DEADFRONT

$256.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 207937GS

BOARD, Load Control Center Relay

$1261.99

$

Usually ships in 2-12 days

0

3

-----

* SCREW, Phillips Head, 6-32 x 3/8

$

$

Not available

4

Briggs & Stratton 197979GS

SPACER, PCB Bard, 1/2"

$5.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 208541GS

SPACER

$33.99

$

Usually ships in 2-12 days

0

6

-----

* SCREW, Phillips Head, Trilobular, #6-32 x 3/8

$

$

Not available

7

Briggs & Stratton 208554GS

TERMINAL STRIP

$44.99

$

Usually ships in 2-12 days

0

8

-----

* SCREW, Phillips Head, Trilobular, #8-32 x 5/8

$

$

Not available

9

Briggs & Stratton 209484GS

TERMINAL BLOCK ASSEMBLY

$65.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 208587GS

PPHS, Trilobular, #8-32 x 3/8

$38.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 208397GS

RELAY

$228.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 315108GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 207983GS

DECAL, Wiring

$162.99

$

Usually ships in 2-12 days

0

16

-----

*NUT, 1/4-20

$

$

Not available

17

-----

*WASHER, Lock, 14

$

$

Not available

18

Briggs & Stratton 196094GS

LUG
(Superseded to 84006973)

$40.99

$

Usually ships in 2-12 days

0

19

-----

* WASHER, Shakeproof, Ext M6 - 1/4

$

$

Not available

20

Briggs & Stratton 704420

DECAL SHEET-WARNINGS

Note: (Includes Ref. Nos. 20-1, 20-2, 20-3 & 20-4)

$16.99

$

Usually ships in 2-12 days

0

20-1

-----

DECAL, Warning, Shock

$

$

Not available

20-2

-----

DECAL, Warning, Contact

$

$

Not available

20-3

-----

DECAL, Ground

$

$

Not available

20-4

-----

DECAL, Reinstall

$

$

Not available

21

Briggs & Stratton 198655GS

DECAL, Shock

$12.99

$

Usually ships in 2-12 days

0

22

-----

* WASHER, Flat, 1/4

$

$

Not available

23

Briggs & Stratton 192150GS

SPACER
(Superseded to 22241GS)

$3.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B5763GS

TRILOBULAR, #10-32 x 3/8

$3.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 208556GS

KIT, Manual

Note: (Includes Ref. Nos. 30-1, 30-8, 30-9 & Manual)

$240.99

$

Usually ships in 2-12 days

0

30-1

Briggs & Stratton 209097GS

KIT, Fuse

Note: (Includes Ref. Nos. 30-2, 30-3, 30-4, 30-5, 30-6 & 30-7)

$93.99

$

Usually ships in 2-12 days

0

30-2

Briggs & Stratton 192151GS

FUSE HOLDER

$8.49

$

Usually ships in 2-12 days

0

30-3

Briggs & Stratton 205110GS

FUSE

$31.99

$

Usually ships in 2-12 days

0

30-4

Briggs & Stratton 209096GS

DECAL, Generator

$30.99

$

Usually ships in 2-12 days

0

30-5

-----

LUG

$

$

Not available

30-6

-----

LUG

$

$

Not available

30-7

-----

SCREW

$

$

Not available

30-8

Briggs & Stratton 208899GS

KIT, Current Transformer
(Superseded to 208106GS)

$32.99

$

Usually ships in 2-12 days

0

30-9

Briggs & Stratton 197956GS

BLOCK, Terminal w/Levers

$4.49

$

Usually ships in 2-12 days

0
