071038-00 - Briggs & Stratton 200 Amp Automatic Transfer Switch, ACCM3 Transfer Switch Parts Diagram

200 Amp Automatic Transfer Switch, ACCM3

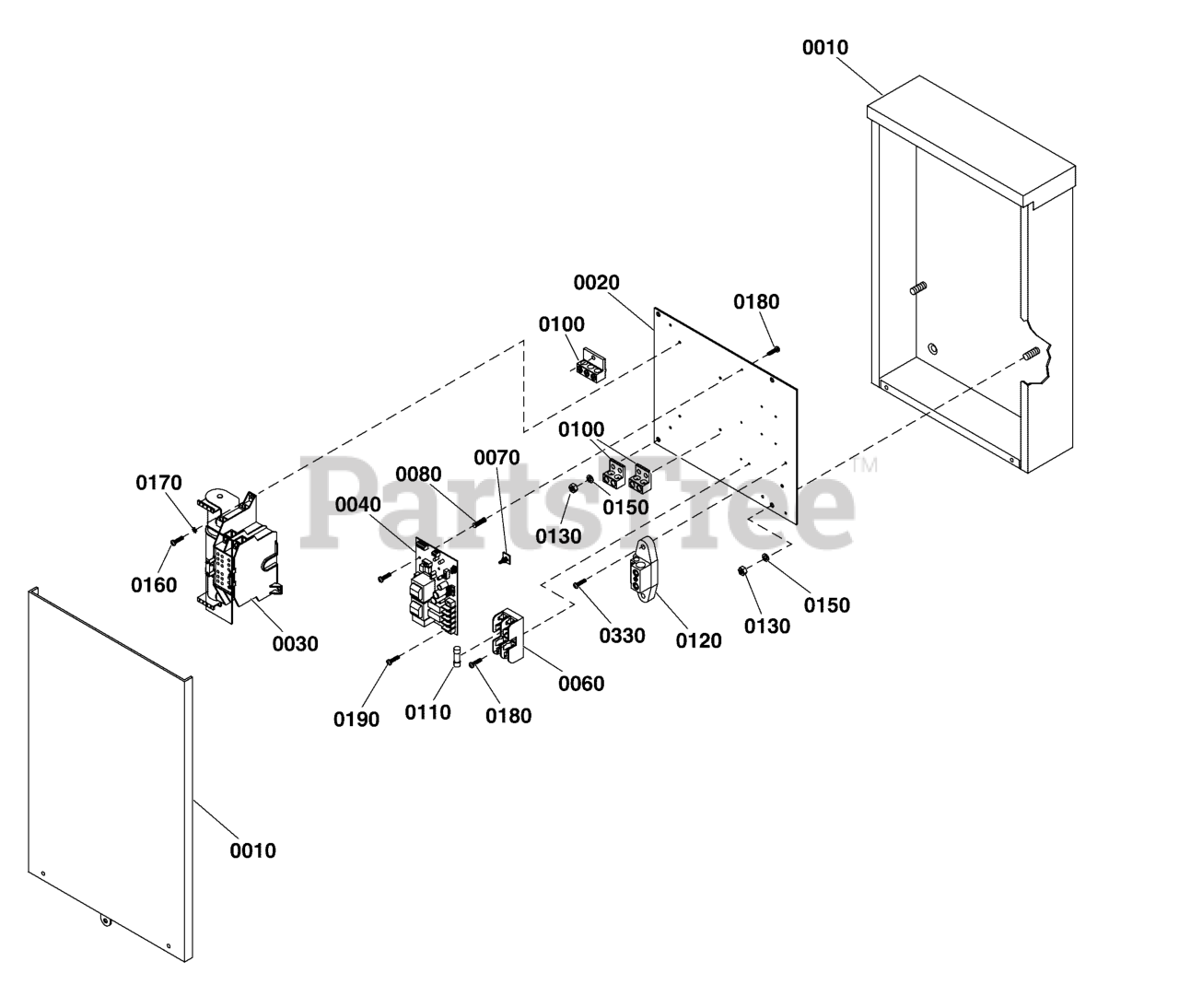

Transfer Switch Parts Diagram

  • Title

0010

ENCLOSURE

$

$

Not available

0020

BACK PANEL

$

$

Not available

0030

Briggs & Stratton 314866GS

CONTACTOR, 200A

$655.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton 771701

CONTROLLER

$394.99

$

In Stock, only 1 left!

0

0060

Briggs & Stratton 192151GS

FUSE HOLDER, 30 Amp 2P

$8.49

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 202420GS

SUPPORT

$4.99

$

Usually ships in 2-12 days

0

0080

Briggs & Stratton 205123GS

SPACER

$9.99

$

Usually ships in 2-12 days

0

0100

Briggs & Stratton 196094GS

LUG, Ground
(Superseded to 84006973)

$40.99

$

Usually ships in 2-12 days

0

0110

Briggs & Stratton 205110GS

FUSE, 10 Amp 600v

$31.99

$

Usually ships in 2-12 days

0

0120

Briggs & Stratton 192696GS

TERMINAL, Neutral

$31.99

$

Usually ships in 2-12 days

0

0130

Briggs & Stratton 22241GS

NUT, Hex, 3/8-16

$3.99

$

Usually ships in 2-12 days

0

0150

WASHER, Lock, Split, 1/4"

$

$

Not available

0160

Briggs & Stratton 36701GS

SCREW, 10-32 X 1/2, PPHMS

$2.99

$

Usually ships in 2-12 days

0

0170

Briggs & Stratton 23762

WASHER, External Shakeproof - No. 10
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

0180

Briggs & Stratton 36901GS

PPHMS, 6-32 X 3/8

$3.99

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 36903GS

PPHMS, 6-32 X 5/8

$3.49

$

Usually ships in 2-12 days

0

0330

Briggs & Stratton 36935

Phillips pan head screw - No. 10-32 x 3/4"

$

$

Not available

--

Briggs & Stratton 195114GS

MANUAL, Operator's

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 312844GS

KIT, Manual

Note: (Not Illustrated)

$178.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208899GS

KIT, Current Transformer
(Superseded to 208106GS)

Note: (Not Illustrated)

$32.99

$

Usually ships in 2-12 days

0
