071045-02 - Briggs & Stratton 100 Amp Automatic Transfer Switch Transfer Switch - Hingeless Enclosure (80010966) Parts Diagram

100 Amp Automatic Transfer Switch

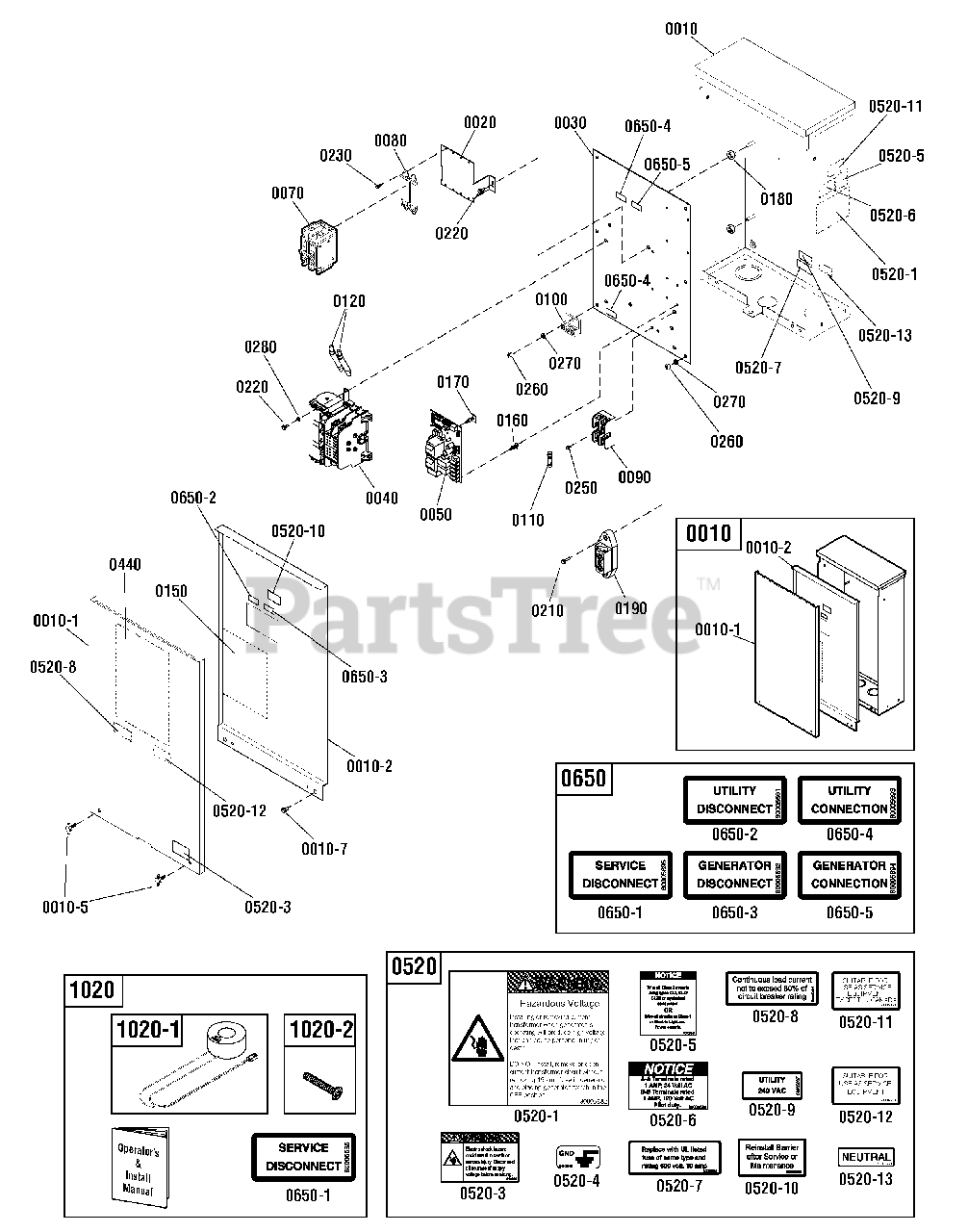

Transfer Switch - Hingeless Enclosure (80010966) Parts Diagram

  • Title

0010

-----

ENCLOSURE

$

$

Not available

0010-1

Briggs & Stratton 705949

DOOR

$229.99

$

Usually ships in 2-12 days

0

0010-2

Briggs & Stratton 706781

DEADFRONT

$338.99

$

Usually ships in 2-12 days

0

0010-5

Briggs & Stratton 315108GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

0010-7

-----

* TRILOBULAR, #10-32 x 3/8

$

$

Not available

0020

Briggs & Stratton 198129GS

BRACKET

$25.99

$

Usually ships in 2-12 days

0

0030

-----

BACK PANEL

$

$

Not available

0040

Briggs & Stratton 314867GS

SWITCH, Transfer

$654.99

$

Usually ships in 2-12 days

0

0050

Briggs & Stratton 208059GS

BOARD, Circuit
(Superseded to 771701)

$419.99

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 192882GS

BREAKER, Circuit, 100A
(Superseded to 311318GS)

Note: (Connect to Utility Power)

$190.99

$

Usually ships in 2-12 days

0

0080

Briggs & Stratton 192770GS

BRACKET

$56.99

$

Usually ships in 2-12 days

0

0090

Briggs & Stratton 192151GS

HOLDER, Fuse

$8.99

$

Usually ships in 2-12 days

0

0100

Briggs & Stratton 196094GS

LUG
(Superseded to 84006973)

$43.99

$

Usually ships in 2-12 days

0

0110

Briggs & Stratton 205110GS

FUSE

$33.99

$

Usually ships in 2-12 days

0

0120

Briggs & Stratton 193689GS

WIRE

$11.99

$

Usually ships in 2-12 days

0

0150

Briggs & Stratton 193664GS

INSULATION

$22.99

$

Usually ships in 2-12 days

0

0160

Briggs & Stratton 197979GS

SPACER, PCB Board, 1/2

$5.49

$

Usually ships in 2-12 days

0

0170

Briggs & Stratton 202841GS

STANDOFF

$5.99

$

Usually ships in 2-12 days

0

0180

Briggs & Stratton 22241GS

NUT, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 11

0

0190

Briggs & Stratton 192696GS

TERMINAL

$36.99

$

Usually ships in 2-12 days

0

0210

-----

* TRILOBULAR, #10-32 x 3/4

$

$

Not available

0220

-----

* TRILOBULAR, #10-32 x 1/2

$

$

Not available

0230

-----

* TRILOBLAR, 8-32 x 3/8

$

$

Not available

0250

-----

* SCREW, Hex Head, Trilobular, #6-32 x 3/8

$

$

Not available

0260

-----

* NUT, 1/4-20

$

$

Not available

0270

-----

* WASHER, Lock, 1/4

$

$

Not available

0280

-----

* WASHER, External Tooth, #10

$

$

Not available

0440

Briggs & Stratton 709511

DECAL

$33.99

$

Usually ships in 2-12 days

0

0520

Briggs & Stratton 704420

DECAL SHEET- WARNINGS

Note: (Includes all parts shown in box)

$17.99

$

Usually ships in 2-12 days

0

0520-1

-----

DECAL, Warning Voltage

$

$

Not available

0520-3

-----

DECAL, Warning Shock

$

$

Not available

0520-4

-----

DECAL, Ground

$

$

Not available

0520-5

-----

DECAL, Notice

$

$

Not available

0520-6

-----

DECAL, Contacts Rated

$

$

Not available

0520-7

-----

DECAL, Fuse

$

$

Not available

0520-8

-----

DECAL, Circuit Breaker

$

$

Not available

0520-9

-----

DECAL, Sensing, Utility

$

$

Not available

0520-10

-----

DECAL, Reinstall AFter

$

$

Not available

0520-11

-----

DECAL, Not Sutiable

$

$

Not available

0520-12

-----

DECAL, Suit. as Service Equip.

$

$

Not available

0520-13

-----

DECAL, Neutral

$

$

Not available

0650

Briggs & Stratton 705423

DECAL SHEET - CONNECTIONS

Note: (Includes all parts shown in box)

$20.99

$

Usually ships in 2-12 days

0

0650-1

-----

DECAL, Service Disconnect

$

$

Not available

0650-2

-----

DECAL, Utility Disconnect

$

$

Not available

0650-3

-----

DECAL, Gen Disconnect

$

$

Not available

0650-4

-----

DECAL, Utility Connection

$

$

Not available

0650-5

-----

DECAL, Gen Connection

$

$

Not available

1020

Briggs & Stratton 709503

KIT, Manual Acc
(Superseded to 709518)

Note: (Includes all parts shown in box)

$71.99

$

Usually ships in 2-12 days

0

1020-1

Briggs & Stratton 208106GS

CURRENT TRANSFORMER

$34.99

$

Usually ships in 2-12 days

0

1020-2

Briggs & Stratton 193306GS

SCREW, Bonding

$6.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6309

KIT, Circuit Breaker

Note: (Optional Accessory)

$169.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 317609GS

DECAL, Power Delay Notice

Note: (Optional Accessory)

$

$

Currently unavailable
