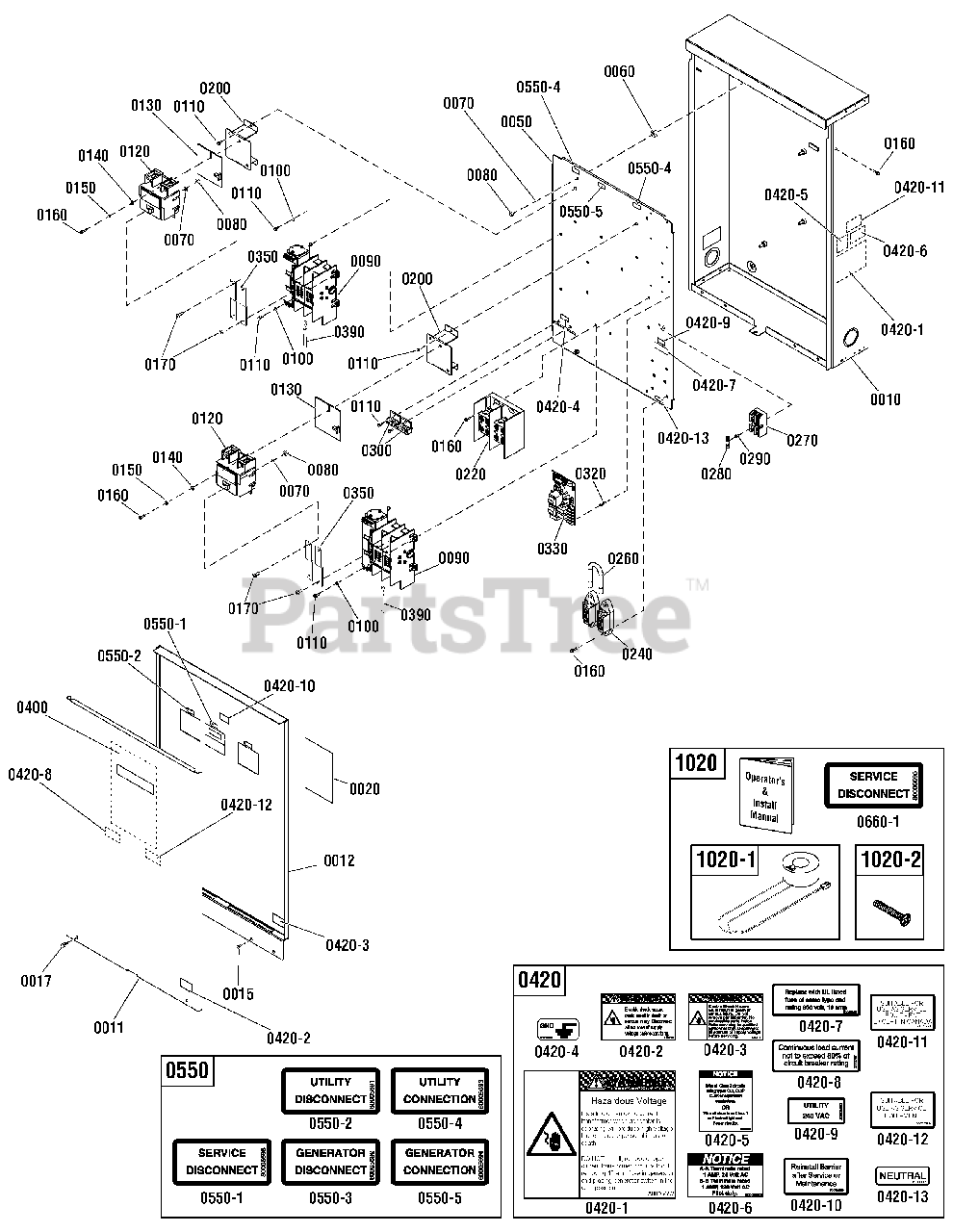

071058-01 - Briggs & Stratton Dual 200 Amp/Split 200 Amp Automatic Transfer Switch, ACCM Transfer Switch (80015853) Parts Diagram

Dual 200 Amp/Split 200 Amp Automatic Transfer Switch, ACCM

Transfer Switch (80015853) Parts Diagram

  • Title

0010

Briggs & Stratton 313251GS

ENCLOSURE

$

$

Not available

0011

Briggs & Stratton 313347GS

DOOR

$

$

Not available

0012

Briggs & Stratton 706784

PANEL

$479.99

$

Usually ships in 2-12 days

0

0015

-----

* TRILOBULAR, #10-32 x 3/8

$

$

Not available

0017

Briggs & Stratton 315108GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 193664GS

INSULATION

$22.99

$

Usually ships in 2-12 days

0

0050

Briggs & Stratton 313885GS

BACK PANEL

$

$

Currently unavailable

0060

Briggs & Stratton 22241GS

NUT, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, only 4 left!

0

0070

-----

* WASHER, Lock, 1/4

$

$

Not available

0080

-----

* NUT, 1/4-20

$

$

Not available

0090

Briggs & Stratton 315050GS

SWITCH, Transfer

$863.99

$

Usually ships in 2-12 days

0

0100

-----

* WASHER, Ext., #10

$

$

Not available

0110

-----

* TRILOBULAR, #10-32 x 1/2

$

$

Not available

0120

Briggs & Stratton 192065GS

BREAKER, Circuit, 200A

$221.99

$

Usually ships in 2-12 days

0

0130

Briggs & Stratton 192879GS

INSULATOR

$8.99

$

Usually ships in 2-12 days

0

0140

-----

* WASHER, Flat, #10

$

$

Not available

0150

-----

* WASHER, Lock, #10

$

$

Not available

0160

-----

* TRILOBULAR, #10-32 x 3/4

$

$

Not available

0170

-----

* SCREW, Pan Head Phillips, 1/4-20 x 3/4

$

$

Not available

0200

Briggs & Stratton 314880GS

BRACKET

$18.99

$

In Stock, only 1 left!

0

0220

Briggs & Stratton 314327GS

TERMINAL
(Superseded to 706845)

$351.99

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 192696GS

TERMINAL

$36.99

$

Usually ships in 2-12 days

0

0260

Briggs & Stratton 314877GS

WIRE

$22.99

$

Usually ships in 2-12 days

0

0270

Briggs & Stratton 192151GS

HOLDER, Fuse

$8.99

$

Usually ships in 2-12 days

0

0280

Briggs & Stratton 205110GS

FUSE

$33.99

$

Usually ships in 2-12 days

0

0290

-----

* TRILOBULAR, #6-32 x 3/8

$

$

Not available

0300

Briggs & Stratton 196094GS

LUG
(Superseded to 84006973)

$43.99

$

Usually ships in 2-12 days

0

0320

Briggs & Stratton 197979GS

SPACER

$5.49

$

Usually ships in 2-12 days

0

0330

Briggs & Stratton 208059GS

BOARD, Circuit
(Superseded to 771701)

$419.99

$

Usually ships in 2-12 days

0

0350

Briggs & Stratton 709512

BAR, Buss

$16.99

$

Usually ships in 2-12 days

0

0390

Briggs & Stratton 314324GS

WIRE

$46.99

$

Usually ships in 2-12 days

0

0400

Briggs & Stratton 709513

DECAL

$48.99

$

Usually ships in 2-12 days

0

0420

Briggs & Stratton 704420

DECAL SHEET- WARNINGS

Note: (Includes all parts shown in box)

$17.99

$

Usually ships in 2-12 days

0

0420-1

-----

DECAL, Warning Voltage

$

$

Not available

0420-2

-----

DECAL, Warning Shock

$

$

Not available

0420-3

-----

DECAL, Warning Shock

$

$

Not available

0420-4

-----

DECAL, Ground

$

$

Not available

0420-5

-----

DECAL, Notice

$

$

Not available

0420-6

-----

DECAL, Contacts Rated

$

$

Not available

0420-7

-----

DECAL, Fuse

$

$

Not available

0420-8

-----

DECAL, Circuit Breaker

$

$

Not available

0420-9

-----

DECAL, Sensing, Utility

$

$

Not available

0420-10

-----

DECAL, Reinstall After

$

$

Not available

0420-11

-----

DECAL, Not Sutiable

$

$

Not available

0420-12

-----

DECAL, Suit. as Service Equip.

$

$

Not available

0420-13

-----

DECAL, Neutral

$

$

Not available

0550

Briggs & Stratton 705423

DECAL SHEET - CONNECTIONS

Note: (Includes all parts shown in box)

$20.99

$

Usually ships in 2-12 days

0

0550-1

-----

DECAL, Service Disconnect

$

$

Not available

0550-2

-----

DECAL, Utility Disconnect

$

$

Not available

0550-3

-----

DECAL, Gen Disconnect

$

$

Not available

0550-4

-----

DECAL, Utility Connection

$

$

Not available

0550-5

-----

DECAL, Gen Connection

$

$

Not available

1020

Briggs & Stratton 709507

KIT, Manual ACC
(Superseded to 709518)

Note: (Includes all parts shown in box)

$71.99

$

Usually ships in 2-12 days

0

1020-1

Briggs & Stratton 208106GS

CURRENT TRANSFORMER

$34.99

$

Usually ships in 2-12 days

0

1020-2

Briggs & Stratton 193306GS

SCREW, Bonding

$6.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 317609GS

DECAL, Power Delay Notice

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 6310

KIT, Circuit breaker

Note: (Optional Accessory)

$246.99

$

Usually ships in 2-12 days

0
