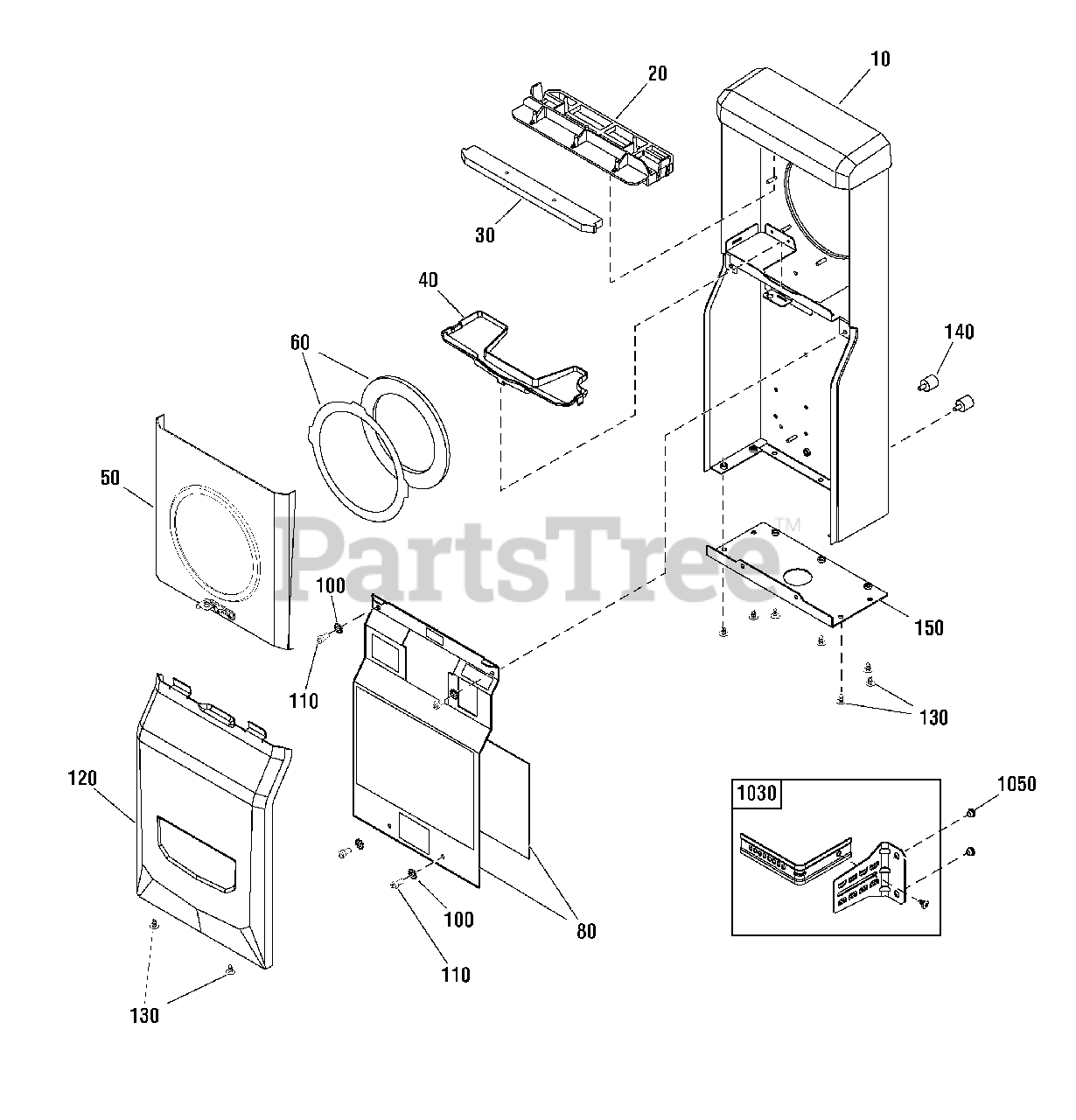

071094-01 - Briggs & Stratton 200 Amp Direct Power Enclosure Group (80011441) Parts Diagram

200 Amp Direct Power

Enclosure Group (80011441) Parts Diagram

  • Title

10

-----

ENCLOSURE

$

$

Not available

20

Briggs & Stratton 707380

BRACKET

$45.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 707381

GASKET

$16.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 707384

TRAY

$34.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 707385

PANEL, Meter Cover

$193.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 707382

GASKET

Note: (With Adhesive)

$44.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 707383

DEADFRONT

Note: (Includes Insulation & Decals)

$193.99

$

Usually ships in 2-12 days

0

100

-----

* WASHER, Shakeproof, #10

$

$

Not available

110

Briggs & Stratton 707411

SCREW

Note: (Set of 2)

$4.49

$

Usually ships in 2-12 days

0

120

Briggs & Stratton 707409

DOOR

$170.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 707394

SCREW

Note: (Set of 2)

$6.99

$

Usually ships in 2-12 days

0

140

Briggs & Stratton 707386

BUMPER

$7.49

$

Usually ships in 2-12 days

0

150

Briggs & Stratton 707410

PANEL, Bottom

$93.99

$

Usually ships in 2-12 days

0

1030

Briggs & Stratton 707405

KIT, Mounting Bracket

Note: (Includes all parts shown in box) (Qty 2 required)

$85.99

$

Usually ships in 2-12 days

0

1050

Briggs & Stratton 707417

GROMMET

$8.99

$

Usually ships in 2-12 days

0
