071232-00 - Briggs & Stratton 200 Amp Transfer Switch, Symphony II Transfer Switch - Enclosure (80019956) Parts Diagram

200 Amp Transfer Switch, Symphony II

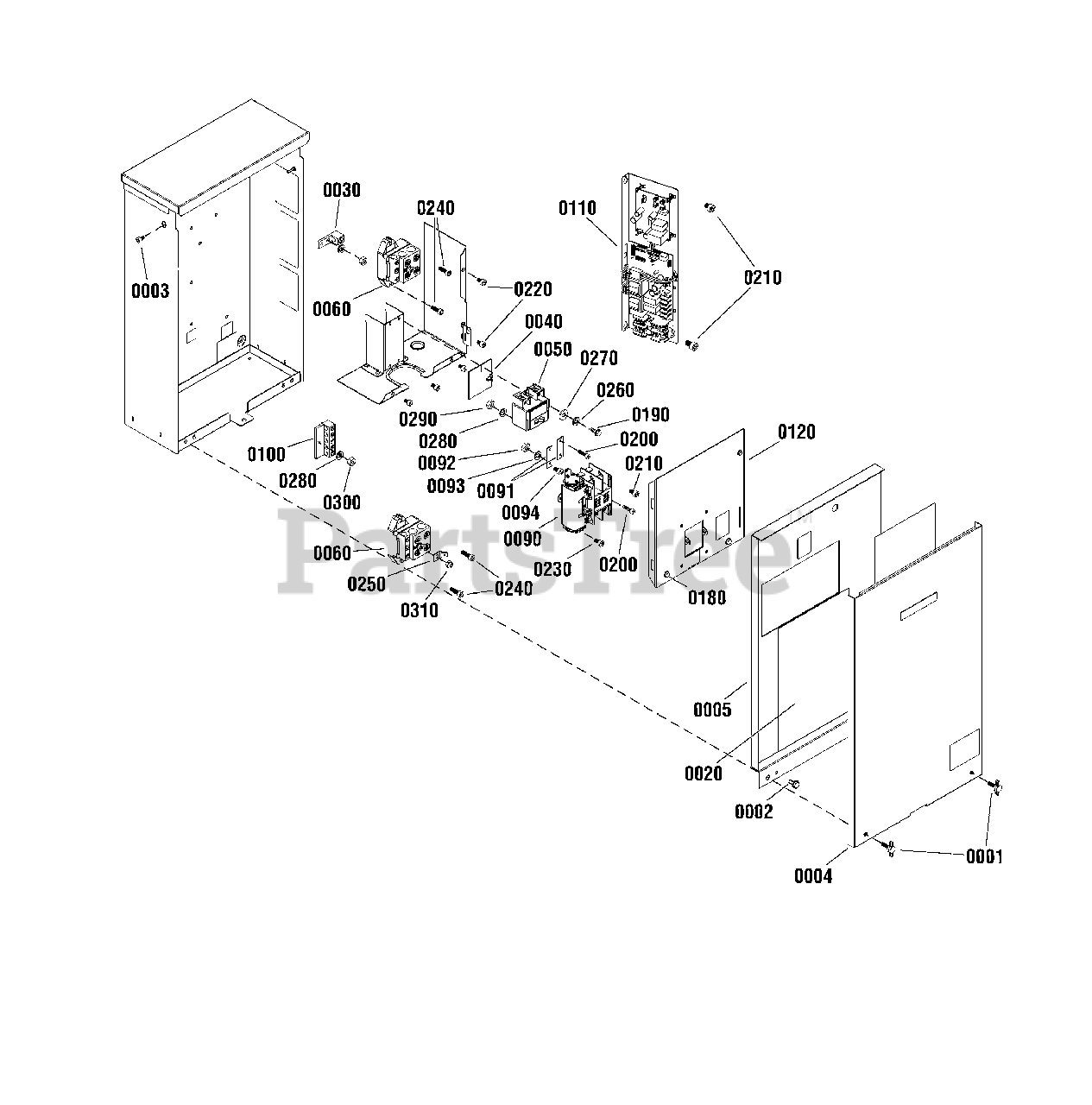

Transfer Switch - Enclosure (80019956) Parts Diagram

  • Title

0001

Briggs & Stratton 315108GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

0002

Briggs & Stratton B5763GS

TRILOBULAR, #10-32 x 3/8

$3.99

$

Usually ships in 2-12 days

0

0003

Briggs & Stratton 24679GS

TRILOBULAR, #10-32 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0004

Briggs & Stratton 770438

DOOR

$

$

Currently unavailable

0005

Briggs & Stratton 770619

DEADFRONT

$193.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 193664GS

INSULATION

$20.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 199011GS

LUG, Ground Connect

$8.49

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton 192879GS

INSULATION, Breaker

$8.49

$

Usually ships in 2-12 days

0

0050

Briggs & Stratton 192065GS

BREAKER, Circuit, 200A

$207.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 770620

TERMINAL, Neutral 6 Position

$

$

Not available

0090

Briggs & Stratton 315050GS

SWITCH, Transfer

$863.99

$

Usually ships in 2-12 days

0

0091

Briggs & Stratton 319267GS

BAR, Bus

$16.99

$

Usually ships in 2-12 days

0

0092

-----

NUT, Hex, 1/4-20

$

$

Not available

0093

-----

WASHER, Lock, 1/4

$

$

Not available

0094

-----

SCREW, Phillips, 1/4-20 x 3/4

$

$

Not available

0100

Briggs & Stratton 770600

TERMINAL, Ground 5 Position

$38.99

$

Usually ships in 2-12 days

0

0110

Briggs & Stratton 770601

BOARD, Circuit

$

$

Not available

0120

Briggs & Stratton 770621

DEADFRONT, Sub Assembly

$107.99

$

Usually ships in 2-12 days

0

0180

-----

* TRILOBULAR, #10-32 x 3/8

$

$

Not available

0190

-----

* TRILOBLAR, #10-32 x 3/4

$

$

Not available

0200

-----

* SCREW, Phillips Head, 1/4-20 x 3/4

$

$

Not available

0210

-----

* CAPSCREW, Socket Head, M5 - .8 x 10

$

$

Not available

0220

-----

* CAPSCREW, Socket Head, M5 - .8 x 6

$

$

Not available

0230

-----

* CAPSCREW, Socket Head, M5 - .8 x 8

$

$

Not available

0240

-----

* CAPSCREW, Socket Head, M5 - .8 x 20

$

$

Not available

0250

-----

* NUT, Hex, M6 x 1

$

$

Not available

0250

Briggs & Stratton 74138GS

ADAPTER, Disconnect

$17.99

$

Usually ships in 2-12 days

0

0260

-----

WASHER, #10

$

$

Not available

0270

-----

WASHER, Flat

$

$

Not available

0280

-----

* LOCKWASHER, 1/4

$

$

Not available

0290

-----

* NUT, 1/4-20

$

$

Not available

0300

-----

* NUT, Hex, M6-1

$

$

Not available

0310

-----

* NUT, Nylock #10-32

$

$

Not available
