071253-00 - Briggs & Stratton 150 Amp Automatic Transfer Switch Transfer Switch - Hingeless Enclosure Parts Diagram

150 Amp Automatic Transfer Switch

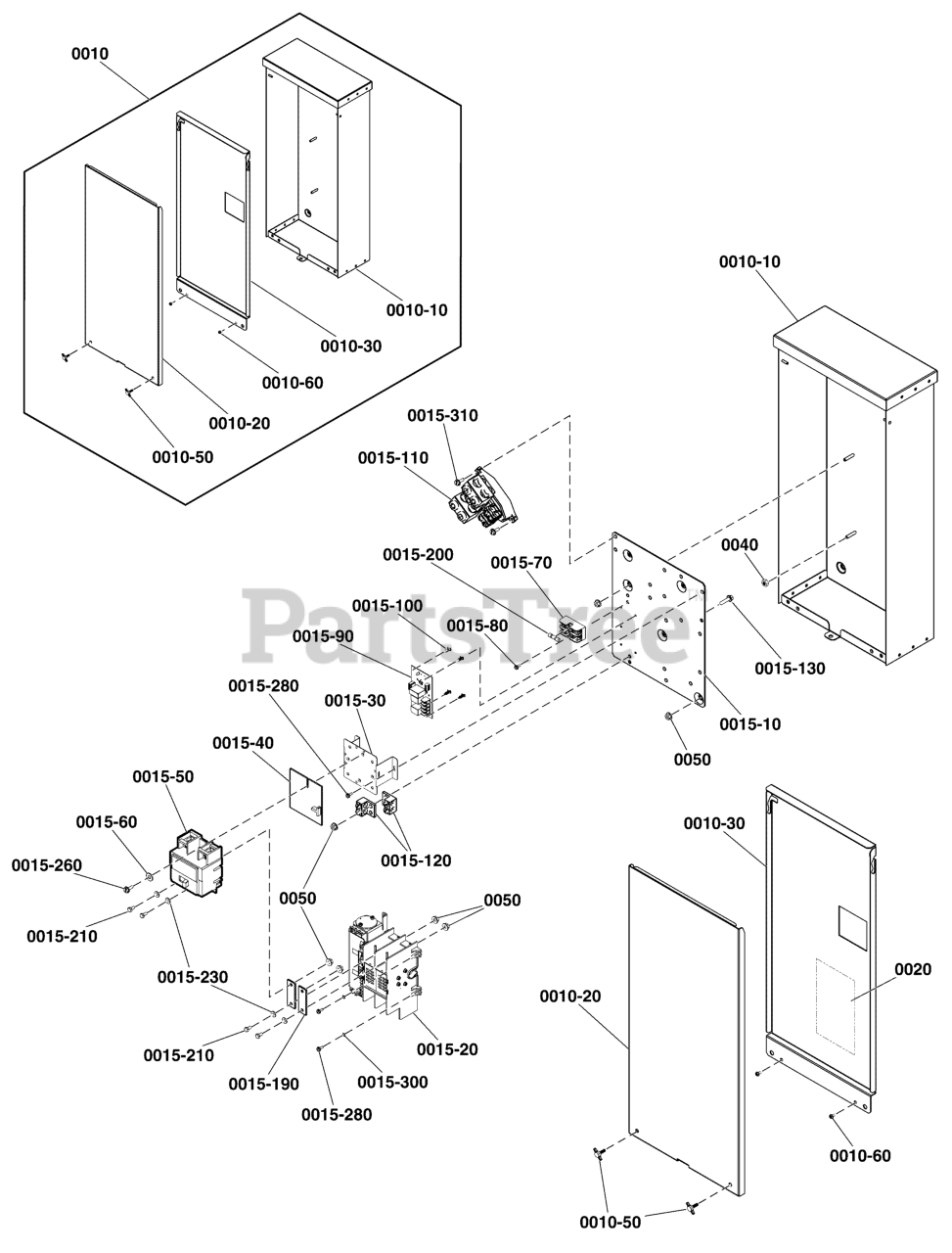

Transfer Switch - Hingeless Enclosure Parts Diagram

  • Title

0010

ASSEMBLY, Enclosure

Note: (**See footnote)

$

$

Not available

0010-10

ENCLOSURE

Note: (**See footnote)

$

$

Not available

0010-20

Briggs & Stratton 84004938

DOOR, Enclosure

Note: (Incl. Ref. Nos. 0035, 0055, 0060)

$

$

Currently unavailable

0035

DECAL, B&S Logo

$

$

Not available

0055

Briggs & Stratton 84004859

DECAL, Transfer Switch, 200A

$

$

Currently unavailable

0060

DECAL SHEET - WARNINGS

$

$

Not available

0010-30

Briggs & Stratton 84004939

PANEL, Deadfront

Note: (Incl. Ref. Nos. 0020, 0060)

$

$

Currently unavailable

0020

Briggs & Stratton 193664GS

INSULATION, Dead Front

$22.99

$

Usually ships in 2-12 days

0

0060

DECAL SHEET - WARNINGS

$

$

Not available

0010-50

Briggs & Stratton 315108GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

0010-60

Briggs & Stratton 703967

SCREW, #10-32 x 3/8, Torx Hex Washer Head Self-Tap, ZC/CL

$3.49

$

In Stock, Qty 20+

0

0015-10

PANEL, Back

Note: (**See footnote)

$

$

Not available

0015-20

Briggs & Stratton 84002607

CONTACTOR, 200A
(Superseded to 315050GS)

$863.99

$

Usually ships in 2-12 days

0

0015-30

Briggs & Stratton 770433

BRACKET

$27.99

$

Usually ships in 2-12 days

0

0015-40

Briggs & Stratton 192879GS

INSULATION, Circuit Breaker

$8.99

$

Usually ships in 2-12 days

0

0015-50

Briggs & Stratton 204144GS

BREAKER, Circuit, 150A
(Superseded to 209168GS)

$263.99

$

Usually ships in 2-12 days

0

0015-60

Briggs & Stratton 23897GS

WASHER, Flat, #10 - M5
(Superseded to 1910531SM)

$3.99

$

Usually ships in 2-12 days

0

0015-70

Briggs & Stratton 192151GS

FUSE HOLDER, 30 Amp 2P

$8.99

$

Usually ships in 2-12 days

0

0015-80

Briggs & Stratton 192730GS

SCREW, Hex Head, Trilobular, #6-32 x 3/8

$4.49

$

Usually ships in 2-12 days

0

0015-90

Briggs & Stratton 770434

BOARD, Circuit

$93.99

$

Usually ships in 2-12 days

0

0015-100

Briggs & Stratton 707397

SPACER

$10.99

$

Usually ships in 2-12 days

0

0015-110

Briggs & Stratton 84004679

ASSEMBLY, Neutral, 200A

$

$

Currently unavailable

0015-120

Briggs & Stratton 84004498

LUG

$8.99

$

Usually ships in 2-12 days

0

0015-130

SCREW, 1/4"-20 x 1"

$

$

Not available

0015-190

Briggs & Stratton 319267GS

BAR, Bus

$17.99

$

Usually ships in 2-12 days

0

0015-200

Briggs & Stratton 205110GS

FUSE, 10 Amp 600v

$33.99

$

Usually ships in 2-12 days

0

0015-210

SCREW, Phillips Head, 1/4-20 x 3/4

$

$

Not available

0015-260

Briggs & Stratton 24679GS

TRILOBULAR, #10-32 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0015-280

Briggs & Stratton 194561GS

HHS, Trilobular, #10-32 x 3/8

$3.49

$

Usually ships in 2-12 days

0

0015-300

Briggs & Stratton 23762GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

0015-310

Briggs & Stratton 32713GS

TAPTITE, #10-32 X 5/8

$3.49

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 193664GS

INSULATION, Dead Front

$22.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton 45771GS

NUT, M8 - 1.25

$6.99

$

In Stock, only 2 left!

0

0050

Briggs & Stratton 703061

NUT, 1/4-20, Keps, Conical Washer

$3.99

$

In Stock, Qty 11

0
