072 A (113-072A100) - Cub Cadet Walk-Behind Mower (1993) Rotary Mower Parts Diagram

Walk-Behind Mower

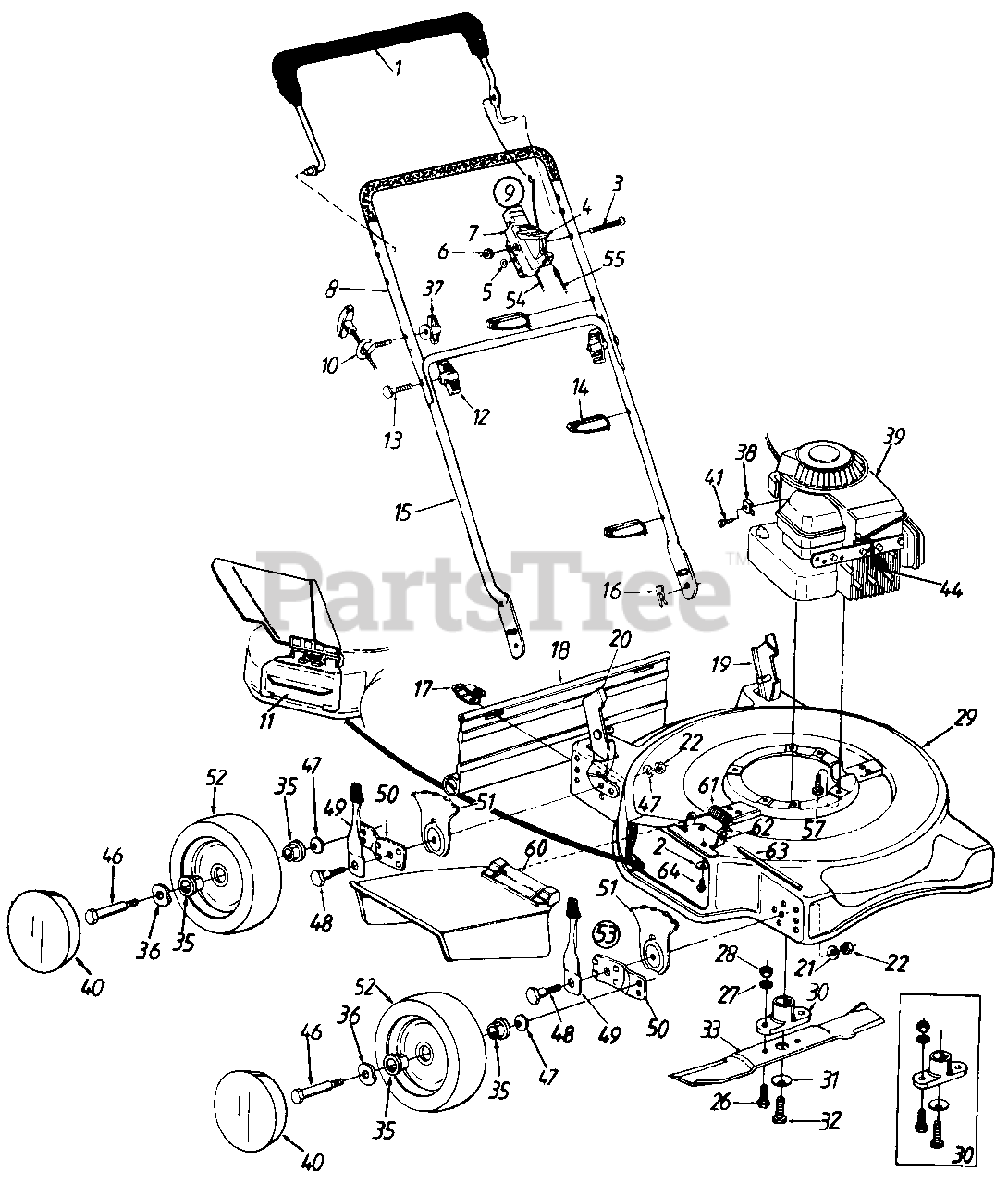

Rotary Mower Parts Diagram

  • Title

1

Cub Cadet 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

$61.99

$

In Stock, only 1 left!

0

2

Cub Cadet 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 13

0

3

Cub Cadet 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 4 left!

0

4

Cub Cadet 746-0876

Throttle Lever
(Superseded to 946-0876)

$7.99

$

In Stock, Qty 10

0

5

Cub Cadet 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-0324

Hex L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet 746-0875

Throttle Body
(Superseded to 946-0875)

$8.99

$

In Stock, Qty 14

0

8

Cub Cadet 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

Cub Cadet 749-0538C-0637

UPPER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 3, 4, 5, 6, 7)

$34.99

$

In Stock, Qty 9

0

10

Cub Cadet 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

11

Cub Cadet 731-1386A

Mulching Plug
(Superseded to 731-1386D)

Note: (Optional)

$

$

Not available

12

Cub Cadet 720-0276

Hand Knob
(Superseded to 920-0276)

$3.49

$

In Stock, Qty 9

0

13

Cub Cadet 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$6.99

$

In Stock, Qty 20+

0

14

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

15

Cub Cadet 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

Cub Cadet 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 10

0

$33.99

$

In Stock, Qty 10

0

16

Cub Cadet 714-0104

Hairpin Cotter

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

Cub Cadet 731-0872A

Rear Flap
(Superseded to 731-0872B)

$36.99

$

In Stock, Qty 6

0

19

Cub Cadet 17189B

Handle Bracket Ass'y.-L.H.

$

$

Not available

20

Cub Cadet 17188B

Handle Bracket Ass'y.-R.H.

$

$

Not available

21

Cub Cadet 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

28

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 17036

20" Deck Ass'y.

Variations

Cub Cadet 17036-0480

DECK ASSEMBLY-20INBRILLIANT G - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 17036-0483

DECK ASSEMBLY-20INCHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 17036-0498

DECK ASSEMBLY-20IN(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 17036-0629

DECK ASSEMBLY-20INSILVER FLAK - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 17036-0638

DECK ASSEMBLY-20IN - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 17036-0662

DECK ASSEMBLY-20IN(OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

$

$

30

Cub Cadet 753-0484

Blade Adapter Kit

$21.99

$

In Stock, only 1 left!

0

31

Cub Cadet 736-0452

Bell-Wash. .39" I.D.

$4.49

$

In Stock, Qty 16

0

32

Cub Cadet 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 742-0620

20" Blade
(Superseded to 942-0620)

$

$

Not available

Cub Cadet 742-0720

20" Mulching Blade
(Superseded to 942-0720)

Note: (Optional)

$31.99

$

In Stock, only 1 left!

0

35

Cub Cadet 741-0484

Ball Bearings
(Superseded to 941-0484)

$6.99

$

In Stock, only 2 left!

0

36

Cub Cadet 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 12

0

37

Cub Cadet 712-0397

Wing Nut 1/4-20 Thd.
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 751-0568

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 2 left!

0

39

Engine

$

$

Not available

40

Cub Cadet 731-0982A

Hub Cap (Beige)
(Superseded to 731-0982C)

$10.99

$

In Stock, Qty 20+

0

41

Cub Cadet 710-1237

Hex Wash. Hd. Tap Scr. #10-32 x.62" Lg.

$4.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

46

Cub Cadet 738-0102

Axle Bolt

$9.49

$

In Stock, Qty 11

0

47

Cub Cadet 736-0105

Bell-Wash. .400" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

50

Cub Cadet 15262B

Pivot Bar

Variations

Cub Cadet 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

52

Cub Cadet 734-1517B

Wheel Ass'y. Comp. (Beige)

$63.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 14578

Height Adj. Ass'y. Comp.- R.F. & L.R.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

Cub Cadet 14579

Height Adj. Ass'y. Comp.- L.F. & R.R.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

54

Cub Cadet 746-0842

Throttle Cable-51"
(Superseded to 946-0671A)

$13.99

$

In Stock, Qty 9

0

55

Cub Cadet 746-0550

Control Cable-39"
(Superseded to 946-0550)

$20.99

$

In Stock, Qty 8

0

57

Cub Cadet 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.

$3.99

$

In Stock, only 4 left!

0

60

Cub Cadet 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$67.99

$

In Stock, Qty 12

0

61

Cub Cadet 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.49

$

In Stock, only 4 left!

0

62

Cub Cadet 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 4 left!

0

63

Cub Cadet 747-0710

Hinge Pin
(Superseded to 747-0710A)

$3.99

$

In Stock, Qty 20+

0

64

Cub Cadet 710-0599

Hex Self-Tap Scr. 1/4-20 x .5"

$3.99

$

In Stock, Qty 20+

0
