072 A (113-072A100) - Cub Cadet Walk-Behind Mower Engine (1993) B&S 3.75 HP Lever Bracket Ass'y Parts Diagram

Walk-Behind Mower Engine

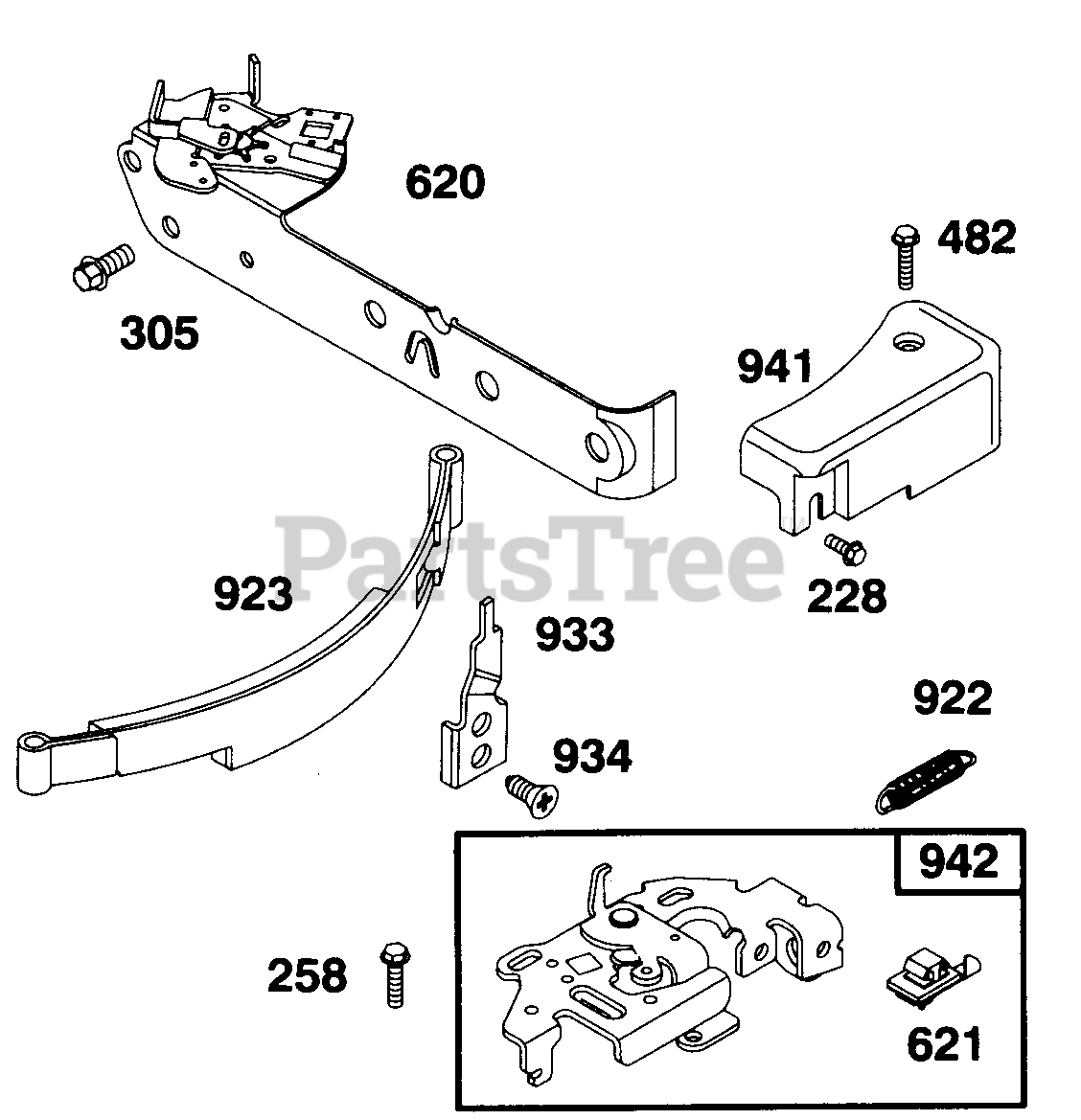

B&S 3.75 HP Lever Bracket Ass'y Parts Diagram

  • Title

228

Cub Cadet BS-93758

Screw--Hex Head

$

$

Not available

258

Cub Cadet BS-94018

Screw--Sem (Bracket to Cylinder)
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 9

0

305

Cub Cadet BS-94153

Screw--Hex Head

$

$

Not available

482

Cub Cadet BS-93621

Screw--Sem
(Superseded to BS-691183)

$

$

Not available

620

Cub Cadet BS-495486

Plate--Carburetor Control

$

$

Not available

621

Cub Cadet BS-396847

Switch--Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

922

Cub Cadet BS-261647

Spring--Band Brake

$

$

Not available

923

Cub Cadet BS-394867

Brake Assembly--Band

$39.99

$

Usually ships in 2-12 days

0

933

Cub Cadet BS-223448

Pivot--Band Brake

$

$

Currently unavailable

934

Cub Cadet BS-94037

Screw--Band Brake Pivot

$

$

Currently unavailable

941

Cub Cadet BS-281285

Cover--Linkage

$

$

Not available

942

Cub Cadet BS-493248

Bracket Ass'y.--Lever

$10.99

$

Usually ships in 2-12 days

0
