072 A (113-072A100) - Cub Cadet Walk-Behind Mower Engine (1993) B&S 3.75 HP Rewind Starter Ass'y Parts Diagram

Walk-Behind Mower Engine

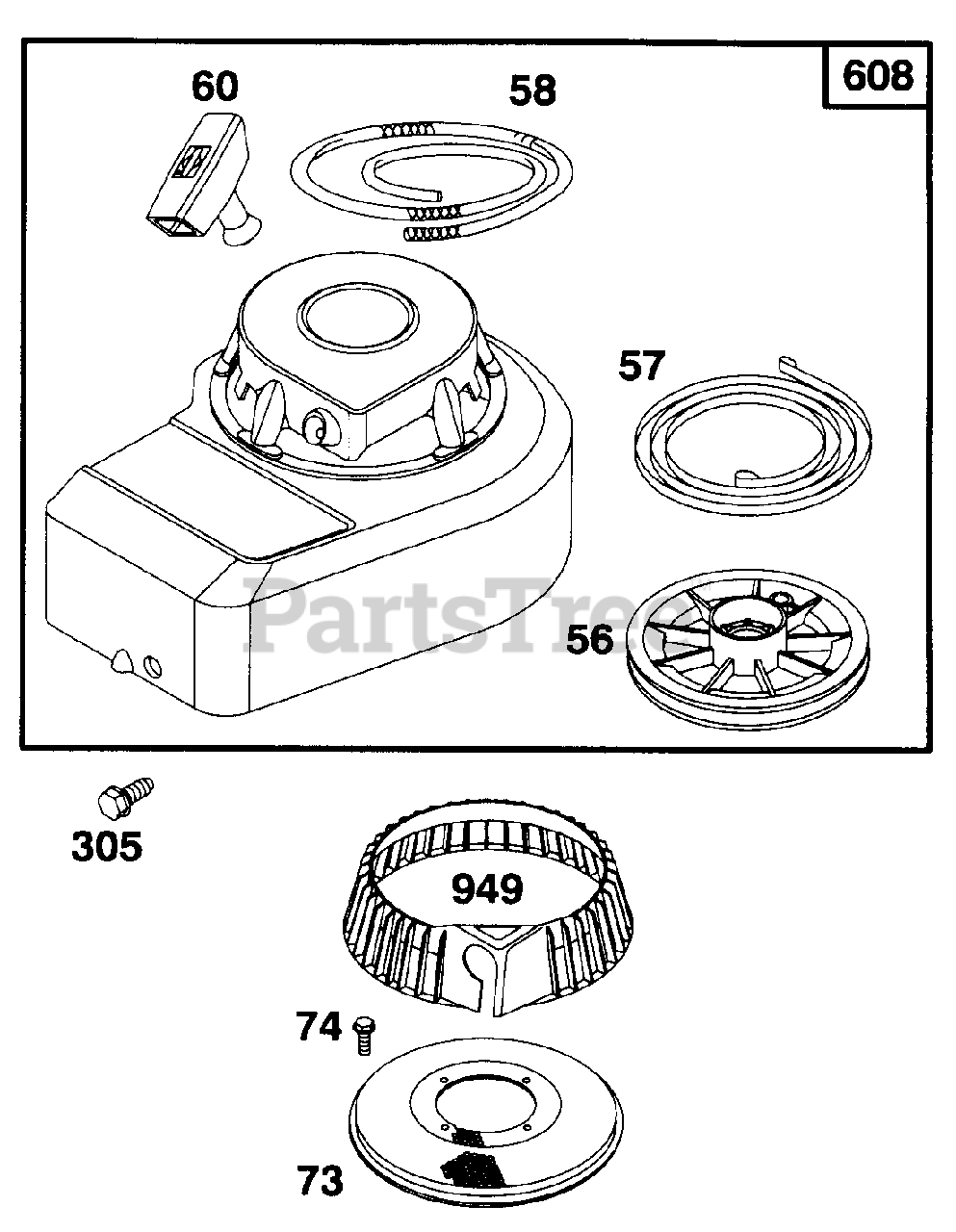

B&S 3.75 HP Rewind Starter Ass'y Parts Diagram

  • Title
56

Cub Cadet BS-280439

Pulley--Rewind Starter
(Superseded to BS-280439S)

$12.99

$

In Stock, only 1 left!

0

57

Cub Cadet BS-490179

Spring--Rewind Starter

$14.99

$

In Stock, Qty 13

0

58

Cub Cadet BS-280406

Rope--Rewind Starter (81" Long)
(Superseded to BS-280406S)

Note: (Cut to Suit)

$8.49

$

In Stock, only 1 left!

0

60

Cub Cadet BS-393152

Grip--Starter Rope

$4.99

$

In Stock, only 3 left!

0

73

Cub Cadet BS-221661

Screen--Rewind Starter
(Superseded to BS-691725)

$

$

Not available

74

Cub Cadet BS-93758

Screw--Sem

$

$

Not available

305

Cub Cadet BS-94153

Screw--Hex Head

$

$

Not available

608

Cub Cadet BS-494495

Starter Ass'y.--Rewind (5 o'clock)
(Superseded to BS-499916)

$229.99

$

Usually ships in 2-12 days

0

949

Cub Cadet BS-281279

Guard--Rewind Starter

$

$

Not available
