072 A (113-072A100) - Cub Cadet Walk-Behind Mower Engine (1993) B&S 3.75 HP Short Block Ass'y, Gasket Set, & Label Kit Parts Diagram

Walk-Behind Mower Engine

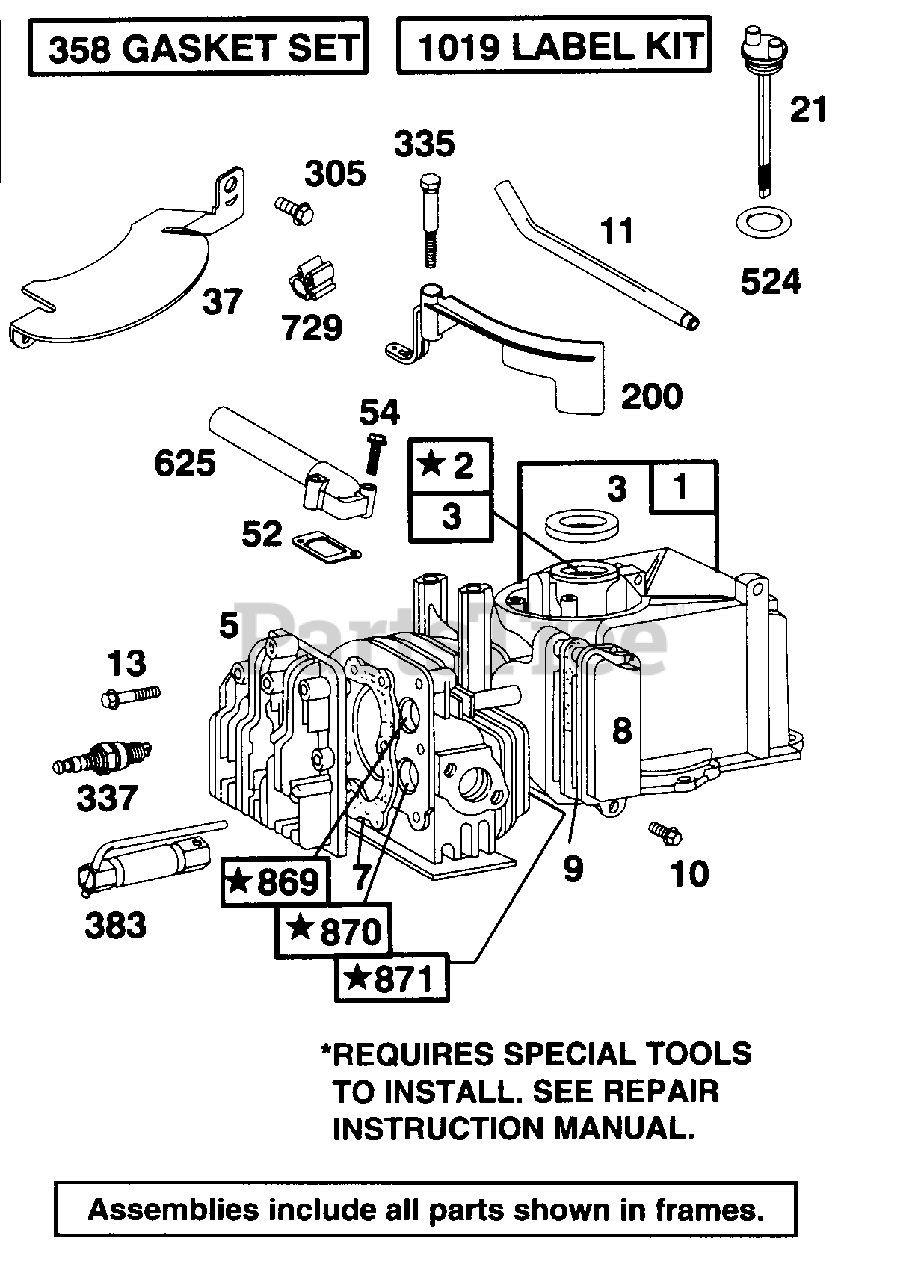

B&S 3.75 HP Short Block Ass'y, Gasket Set, & Label Kit Parts Diagram

  • Title

Cub Cadet BS-398210

Short Block

$243.99

$

Usually ships in 2-12 days

0

1

Cub Cadet BS-399164

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-293708

Bushing-Cylinder
(Superseded to BS-399269)

$22.99

$

In Stock, only 3 left!

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

$5.99

$

In Stock, Qty 20+

0

5

Cub Cadet BS-213942

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-272536

Gasket-Cylinder Head

$

$

Not available

8

Cub Cadet BS-495785

Breather Ass'y.

Note: (Includes Gasket)

$

$

Not available

9

Cub Cadet BS-272602

Gasket-Valve Cover

$

$

Not available

10

Cub Cadet BS-94621

Screw-Sem
(Superseded to BS-691666)

$4.49

$

In Stock, only 3 left!

0

11

Cub Cadet BS-231774

Tube-Breather
(Superseded to BS-691245)

$9.99

$

In Stock, only 1 left!

0

13

Cub Cadet BS-93111

Screw-Cylinder Head (1-15/16" Long)
(Superseded to BS-691640)

$3.99

$

In Stock, only 2 left!

0

21

Cub Cadet BS-281081

Plug-Oil Filler
(Superseded to BS-691913)

$10.99

$

Usually ships in 2-12 days

0

37

Cub Cadet BS-223150

Guard-Flywheel

$

$

Currently unavailable

52

Cub Cadet BS-270345

Gasket-intake Elbow

$

$

Not available

54

Cub Cadet BS-93485

Screw-intake Elbow Mounting

$

$

Not available

200

Cub Cadet BS-281024

Blade-Governor
(Superseded to BS-691912)

$14.99

$

In Stock, only 2 left!

0

305

Cub Cadet BS-94153

Screw-Hex Head

$

$

Not available

335

Cub Cadet BS-94732

Screw-Shoulder

$

$

Not available

337

Cub Cadet 759-3338

Plug-Spark

$3.99

$

In Stock, Qty 20+

0

358

Cub Cadet BS-298989

Gasket Set
(Superseded to BS-794209)

$

$

Not available

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 2 left!

0

524

Cub Cadet BS-271485

Seal-Filler Tube

$

$

Not available

625

Cub Cadet BS-298775

Tube-Fuel Intake
(Superseded to BS-693446)

$15.99

$

In Stock, only 4 left!

0

729

Cub Cadet BS-280470

Clip-Wire

$

$

Not available

869

Cub Cadet BS-211172

Seat-intake Valve

$

$

Not available

870

Cub Cadet BS-211291

Seat-Exhaust Valve

$

$

Not available

871

Cub Cadet BS-231348

Guide-Exhaust Valve

$33.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-63709

Guide-Intake Valve

$15.99

$

Usually ships in 2-12 days

0

1019

Cub Cadet BS-491082

Label Kit

$

$

Currently unavailable
