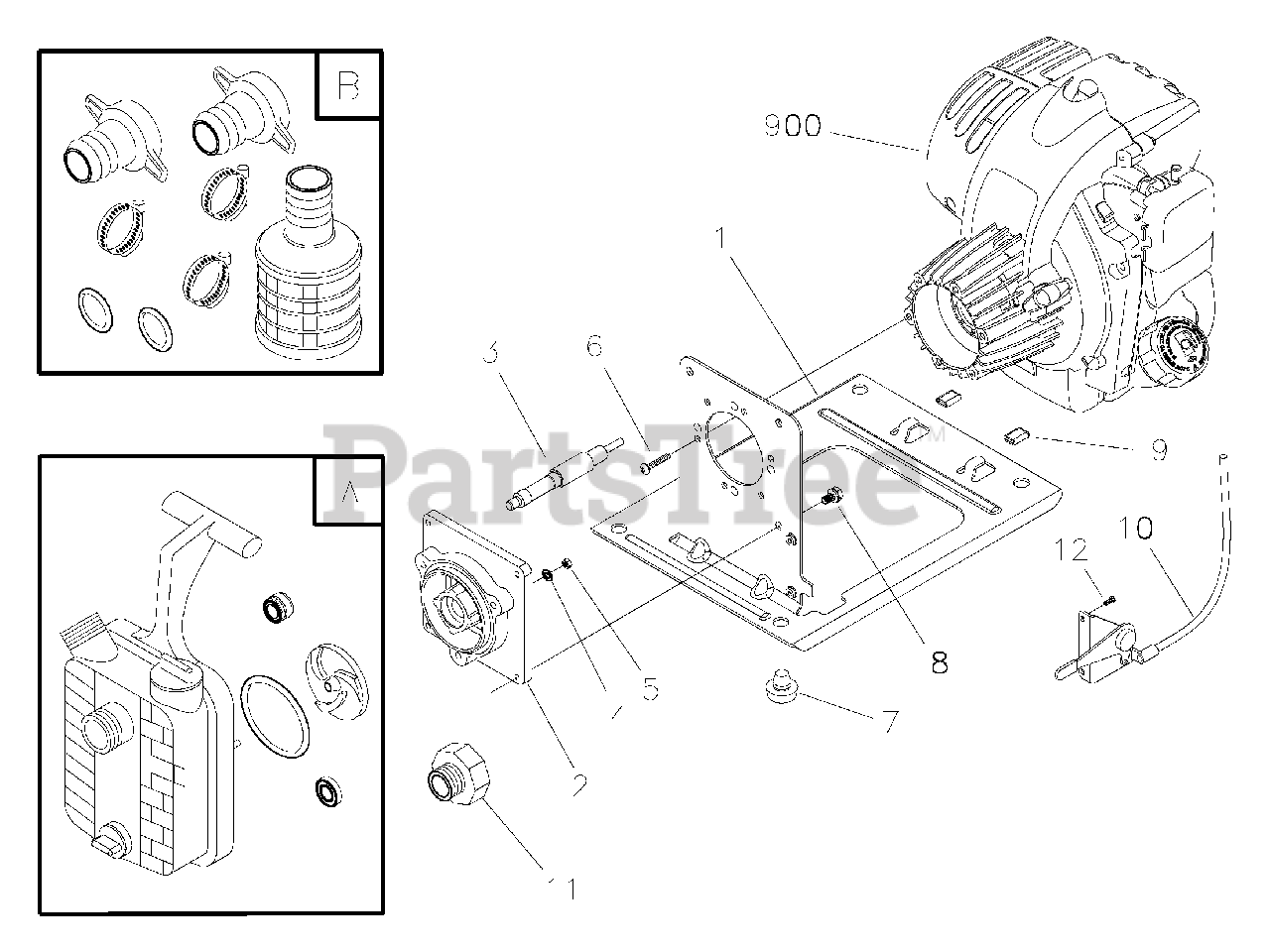

073000-0 - Briggs & Stratton 30 GPM Water Pump Main Unit Parts Diagram

30 GPM Water Pump

Main Unit Parts Diagram

  • Title

A

Briggs & Stratton 197648GS

KIT, Pump

Note: Service kits include all parts shown within the box.

$105.99

$

Usually ships in 2-12 days

0

B

Briggs & Stratton 197649GS

KIT,Acc Micro Pump

Note: Service kits include all parts shown within the box.

$56.99

$

Usually ships in 2-12 days

0

1

Briggs & Stratton B197461GS

BASE, Pump

$

$

Not available

2

Briggs & Stratton 197169GS

PLATE, Seal, Pump

$23.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 197545GS

SHAFT, Pump

$47.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 51713GS

WASHER, M5

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 197800GS

NUT, Hex M5 - 0.8 w/ Locking Insert
(Superseded to 198937GS)

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 197574GS

SCREW, Plastite #10 - 14 x 1.0

$2.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 197546GS

MOUNT,Vibration

$7.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 66476GS

HHCS, M6 - 1.0 x 12 w/ LW

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 197605GS

CAP, Mounting

$4.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 197606GS

THROTTLE, Capro

$12.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 197653GS

ADAPTER

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 194561GS

HHS,Trilobular, #10-32 x 3/8

$3.49

$

Usually ships in 2-12 days

0

900

-----

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

--

Briggs & Stratton 197609GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton MS3287

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

--

Briggs & Stratton 198290GS

LABEL, Pump

Note: Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198291GS

LABEL,Warning

Note: Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198303GS

DECAL, Caution, Prime Pump

Note: Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 695877

BEARING, Ball

Note: Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 198425GS

HOSE, Intake

Note: Not Illustrated

$84.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 100091

MICRO OIL

Note: Not Illustrated

$3.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 282751

CUP, Oil Fill

Note: Not Illustrated

$

$

Currently unavailable
