073009-0 - Briggs & Stratton 159 GPM Water Pump Main Unit Parts Diagram

159 GPM Water Pump

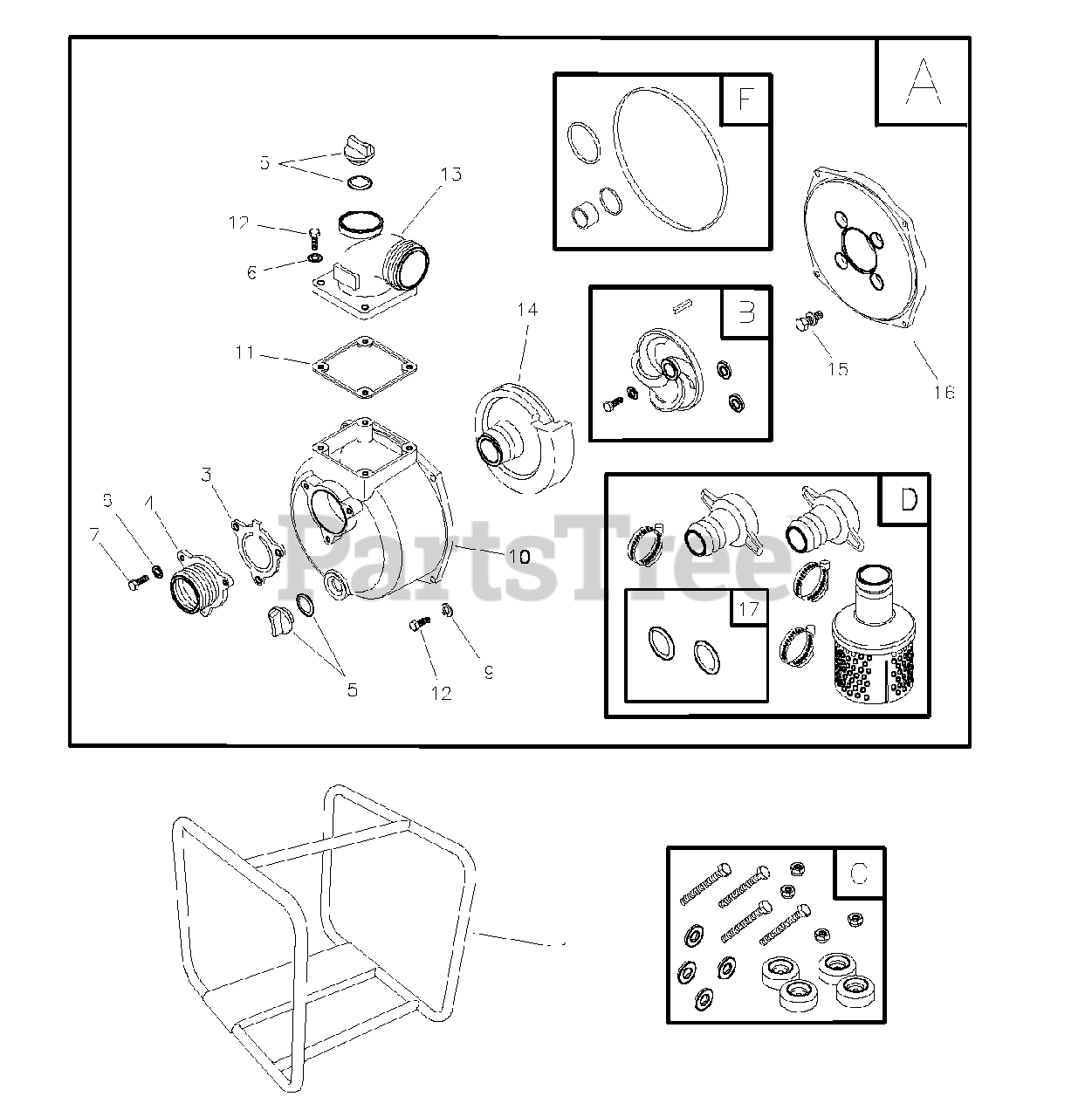

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 865154GS

CRADLE

$179.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 197754GS

VALVE, Check

$10.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 197756GS

FLANGE, Inlet, 2" BSP

$21.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 198057GS

ASSY, Plug

$

$

Not available

6

-----

WASHER, Flat, 5/16 - M8

$

$

Not available

7

-----

HHCS, M8 - 1.25 x 16

$

$

Not available

9

-----

WASHER, Lock 5/16 - M8

$

$

Not available

10

Briggs & Stratton 197752GS

HOUSING, Pump

$71.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 197758GS

GASKET, Out

$5.99

$

Usually ships in 2-12 days

0

12

-----

HHCS, M8 - 1.25 x 25

$

$

Not available

13

Briggs & Stratton 197760GS

FLANGE, Out, 2" BSP

$32.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 197747GS

VOLUTE

$25.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 198048GS

ASSY, Fastener

$7.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 197738GS

ADAPTER, Engine

$47.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 197764GS

GASKET, 2"

$3.99

$

Usually ships in 2-12 days

0

A

Briggs & Stratton 197993GS

ASSY, Housing Pump

Note: Service kits include all parts shown within the box.

$109.99

$

Usually ships in 2-12 days

0

B

Briggs & Stratton 198058GS

KIT, Impeller 2"

Note: Service kits include all parts shown within the box.

$26.99

$

Usually ships in 2-12 days

0

C

Briggs & Stratton 197887GS

KIT, Vibration Mount

Note: Service kits include all parts shown within the box.

$15.99

$

Usually ships in 2-12 days

0

D

Briggs & Stratton 198073GS

KIT, Coupler, 2" BSP

Note: Service kits include all parts shown within the box.

$73.99

$

Usually ships in 2-12 days

0

E

Briggs & Stratton 198075GS

KIT, Seal

Note: Service kits include all parts shown within the box.

$48.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS5234

MANUAL, Operator’s

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 198296GS

DECAL, Fuel Tank

Note: Not Illustrated

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198305GS

LABEL, Warning

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198303GS

DECAL, Caution

Note: Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198295GS

DECAL, Recoil

Note: Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198294GS

DECAL, Air Cleaner

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

-----

ENGINE

Note: Contact Engine Manufacturer; Not Illustrated

$

$

Not available
